Bar chart visualization

Latest Dynatrace

When to use a bar chart visualization

Use a bar chart:

  • When you want to show the frequency of a single or a few (2-3) different categories over time.
  • When you want to compare such categories and their contribution to the whole over time. A bar chart allows you to directly compare the values of different categories, which correspond to the length of the bar, similar to an area chart. This is particularly useful when you have discrete categorical data and you want to highlight differences.
  • When you want to show ranking or order of data.

Example

Bar chart example

The chart above is based on the following query.

timeseries avg(dt.host.cpu.usage)
  • The visualization type is set to Bar chart.
  • Other options are set to defaults.

Chart zoom and navigation

To access the chart tools:

  • When space is limited, hover over the chart and select Chart tools to open a menu of chart tools.

  • When there is sufficient space, the chart tools are displayed in a toolbar.

    Timeseries chart toolbar - full

    By default, the chart toolbar is displayed in the upper-right corner of the chart when you hover over the chart.

Toolbar options

Icon

Name

Keyboard shortcut

Action

Move

none

Move the chart toolbar. Select and drag the icon.

Explore

E

Explore a section of the chart. Select Explore, and then click and drag left or right to select a section of the chart. The chart zooms to display the selected area.

Pan

P

Pan the chart to the left or right. Select Pan, and then click and drag left or right.

Zoom in

Ctrl+Up

Zoom in to the chart.

Zoom out

Ctrl+Down

Zoom out from the chart.

Reset

R

Restore the chart zoom level and timeframe to their original states.

Collapse

none

Shrink the chart toolbar to just and .

Expand

none

Show the entire chart toolbar.

Zoom rules

For a timeseries chart (Line, Area, Bar):

  • You can't zoom on the chart if the timeframe is set in the DQL query.

  • Dashboards

    If you zoom on a tile without a custom tile timeframe, the global timeframe for the dashboard is updated accordingly, so timeframes stay in sync across the dashboard except where a tile has its own overriding timeframe.

    If you zoom on a tile with a custom tile timeframe but without a timeframe in the query, the selected timeframe is applied to the custom tile timeframe and the changed timeframe is reflected in the dashboard.

  • Notebooks

    If you zoom in a timeseries in a notebook section, the timeframe of the section changes, and the change is persisted in the notebook.

Title

Use this field to add a title. The edit box is displayed at the top of the options panel.

Title edit box

  • You can use emojis such as 😃 and 🌍 and ❤️.
  • You can use variables.

Example:

  1. Define variables called Status and Emoji in your dashboard.
  2. Set Title to Current $Emoji status is $Status.
  3. Set Status to Good.
  4. Set Emoji to 🌍.

The title will be displayed as Current 🌍 status is Good.

Visualization

If you aren't sure that you chose the right visualization, use the visualization selector to try different visualizations.

Data mapping

The data mapping section shows how a column of your result is mapped to the visualization.

For example, when working with DQL and a timeseries, in the result we have a column with a value array for each series (one row with that one cell of values). For a timeseries, this mapping is done fully automatically, but the data mapping shows you which underlying column is mapped.

  • X-axis—which column of your result is used for the X-axis (timestamp or timeframe)
  • Y-axis—the Value (numerical) and Series to be displayed on the Y-axis

Bar chart options

To learn about options quickly and decide what works best for you, turn options on and off and see the effect immediately on your chart. For example, does it look best with a label or without? Turn that option on and off and see for yourself.

Color palettes

You can select a color palette from the list under Color palettes.

For a line chart, area chart, or bar chart, you can optionally override the selected color palette for any series as needed.

Legend position

Select where to display the visualization legend:

  • Automatic—Dynatrace chooses an appropriate location
  • Hidden—no legend is displayed
  • Bottom—the legend is displayed along the bottom of the visualization
  • Right—the legend is displayed on the right side of the visualization

Legend fields

Select which elements to display in the legend.

Time axis

Selects the X-axis.

Left axis

Sets the scale of the left axis:

  • Logarithmic
  • Linear

Min

The minimum of the visualization range.

  • Auto—Dynatrace automatically selects a suitable minimum based on data (0 or min-value).
  • Min-value—The minimum is set to the minimum data value.
  • Custom—Displays an edit box for you to enter a custom minimum value.

Max

The maximum of the visualization range.

  • Auto—Dynatrace automatically selects a suitable maximum based on data (0 or max-value).
  • Max-value—The maximum is set to the maximum data value.
  • Custom—Displays an edit box for you to enter a custom maximum value.

Label

Vertical text to display as a label for the Y-axis.

Stack series

Specifies how to stack series: by absolute or relative values.

Series overrides

For a line chart, area chart, or bar chart, you can optionally override the selected color palette for any series as needed.

The Series overrides section lists all configured overrides.

To add or change an override for a series

  1. Edit the visualization tile.

  2. Select the series for which you want to override the palette color. There are two ways to select a series:

    • On the graph, select the series and then select Edit series from the pop-up window
    • Select Add override in the Series overrides section in the lower-right corner of the page and then select the series from the list.

  3. Change the Color setting to the color you want to display for the selected series.

  4. Select Update to save your changes to the dashboard.

Query limits

Use the Query limits section to check and adjust the Grail query limits per notebook section or dashboard tile. These settings determine the maximum limits when fetching data. Exceeding any limit will generate a warning.

Dashboard sections and notebook tiles created in Dynatrace earlier than version 1.296 are not affected. Those existing tiles/sections will return the same results as before.

Read data limit (GB)

The limit in gigabytes for the amount of data that will be scanned during a read.

Record limit

The maximum number of result records that this query will return. Default: 1,000 records. To see more records, you need to increase the value of Record limit.

  • If your query has no limit, such as

    fetch logs

    the value of Record limit is applied. By default, you will see up to 1,000 records.

  • If your query also includes a limit, such as

    fetch logs
    | limit 2000

    the lower of the two values (either limit in your query, or Record limit in the web UI) is applied.

    In the example above, you would still see only 1,000 records unless you increased the value of Record limit.

Result size limit

The maximum number of result bytes that this query will return. For better performance with typical queries and smaller documents, the default is set to 1 MB.

Sampling (Logs and Spans only)

Results in the selection of a subset of Log or Span records.

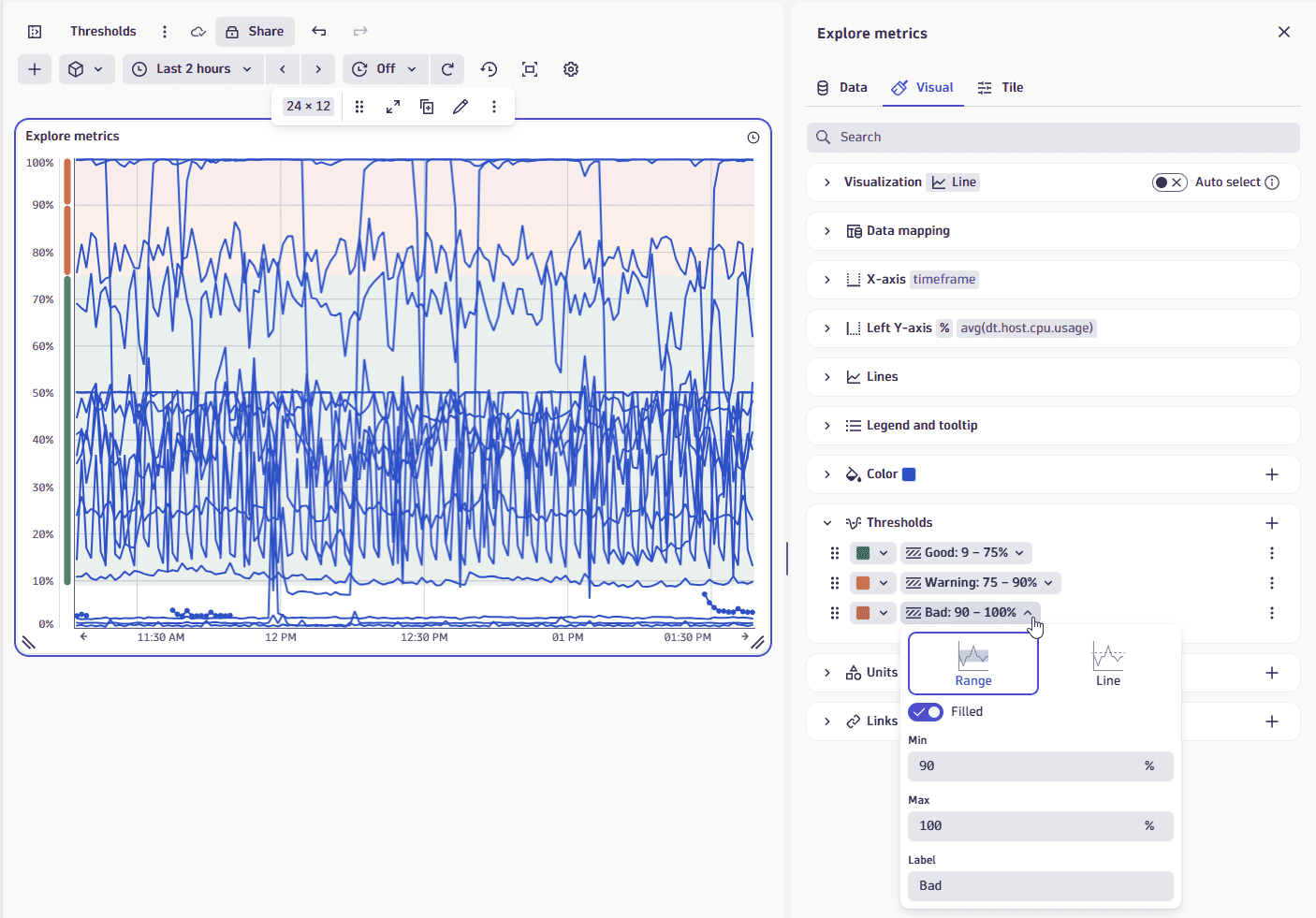

Thresholds

Configure thresholds

To configure thresholds in a dashboard or notebook visualization

  1. Select to edit the visualization tile.

  2. Select Thresholds.

    • In Dashboards, select the Visual tab in the side panel, and then select Thresholds.
    • In Notebooks, select Thresholds in the side panel.

  3. Select Threshold.

  4. Define the thresholds. For each range:

    • Select a color to display for that range
    • Select the operator to define the threshold for that range
    • Enter a static value to compare (using the selected operator) with the returned value
    • Enter a label to associate with the defined range.
      • Labels apply only to charts with a Y axis, such as timeseries charts and the categorical bar chart.
      • Labels can't be defined for tables and the single value chart.

This example uses a bar chart, but the options apply to other visualizations.

  1. In Dashboards, create a dashboard.

  2. Select and, in the Snippets section of the menu, select Metrics > Chart top 10 hosts by CPU usage.

  3. In the section edit panel, select the Visual tab and select Bar.

  4. Select Thresholds.

  5. Select Threshold.

    An empty set of threshold fields is displayed.

  6. Define the thresholds for the displayed metric. You can observe your changes in the Y axis of the chart.

    In this example, we define three ranges of CPU usage with corresponding colors and labels.

    You can see the ranges displayed on the Y-axis and in the tooltip.

To reset to defaults (discard threshold settings), select the trash can next to the item.

Edit thresholds

  1. Select to edit the visualization tile.

  2. Select Thresholds.

    • In Dashboards, select the Visual tab in the side panel, and then select Thresholds.
    • In Notebooks, select Thresholds in the side panel.

  3. From this point, you can do the following (expand rows for details):

    To add thresholds (if the selected visualization supports additional thresholds), select Threshold.

    To turn off (hide) existing thresholds, use the switch. No settings are lost. You can turn them back on if you change your mind.

    To delete existing thresholds, select the trash can .

    To change existing threshold settings, just edit the fields.

    To add a range to existing thresholds, select Add range.

    To delete a range from existing thresholds, select the delete button in that row.

Units and formats

To override the default units and formats in a dashboard or notebook visualization

  1. Select to edit the visualization tile.

  2. Select the Visual tab.

  3. Select Units and formats.

  4. Select Override.

  5. Select Override

  6. In the dropdown list, select the item for which you want to add a unit override.

    This is a numeric column of the underlying DQL result, so it varies according to the query. For example:

    • A fetch events query returns events. The dropdown list here lets you select a numeric field (such as transfer_size) from the results.
    • A timeseries avg(dt.host.cpu.usage) query returns a single timeseries for avg(dt.host.cpu.usage). That timeseries is then the only selectable option in the list.

  7. Define the override.

    • Default unit: The base unit in which the values were captured. It's None if it was not included in the DQL result, or its automatically defined by the unit passed from the DQL result. This field doesn't lead to any conversion.
    • Displayed unit: Once you define a default unit, you can use Displayed unit for conversion. For example, if the DQL result defined your numeric value in the result as Bytes, Displayed unit now offers a suitable list of byte conversions such as Kilobyte and Megabyte. Unlike the Default unit, the Displayed unit is always a numeric conversion.
    • Decimals displays the default number of decimals (degree of precision) to display. To see it in action, change the Decimals selection and observe the change in the visualization.
    • Suffix displays the suffix to display after the unit. To see it in action, enter a string and observe the change in the visualization. When you don't find the unit you're looking for, you can use Suffix to display the desired unit.

  8. Turn on Abbreviate large numbers if you want to display large figures in abbreviated form. For example, 1053 becomes 1.1K.

To reset to defaults (discard override settings for the selected item), select the trash can next to the item.

This example uses a line chart, but the options apply to other visualizations.

  1. In Dashboards, create a dashboard.

  2. Select and, in the Snippets section of the menu, select Metrics > Chart average CPU across all hosts.

  3. In the section edit panel, select the Visual tab and select Line.

  4. Select Units and formats.

    Select Units and formats

  5. Select Override.

    Select Add Override.

  6. In the dropdown list, select the metric for which you want to add an override. There's only one metric to select in this example.

  7. Define the override for the displayed metric. You can observe your changes in the Y-axis of the chart.

    • Default unit displays Percent (%), which is the default unit for the selected metric. Try a different setting, such as One to instead display the result as a fraction of 1.

    • Displayed unit displays Auto. You can change it to a different unit, such as One to instead display the result as a fraction of 1.

      Only linear and static conversions are supported. For example, you cannot convert Degree Celsius(°C) into Degree Fahrenheit(°F), or convert Usd(US$) into Eur(€).

    • Decimals displays the default number of decimal points (degree of precision) to display. To see it in action, change the Decimals selection and observe the change in the visualization.

      For example, change this:

      Decimals setting before

      To this:

      Decimals setting after

    • Suffix displays the optional suffix to display after the unit. To see it in action, enter a string and observe the change in the visualization.

To reset to defaults (discard override settings for the selected metric), select the trash can next to the metric.
