Distributed Tracing

A distributed trace is a sequence of spans, identified by a unique trace ID, that follows the path of a single request as it traverses through various services and components in a distributed system. In a modern microservice environment, it typically spans multiple services, providing a detailed view of the request's journey and performance. The trace contains semantically different attributes that make it possible to interpret and understand the collected data, helping identify bottlenecks, errors, and latency issues for efficient troubleshooting and optimization.

Use cases

A span represents a single operation within a distributed trace, capturing the details of the request's journey through multiple services. Each span includes attributes such as the name, the start timestamp, a list of span events (such as exceptions), the parent's span identifier, and the span kind. This information—span context— helps to put all spans and events in context with each other, so that you can trace and understand the performance and behavior of individual operations within the distributed system.

Within a trace, when the activity—parent span—is completed, the next activity passes to its child span. A span without a parent span is called a trace root span and indicates the start of a trace.

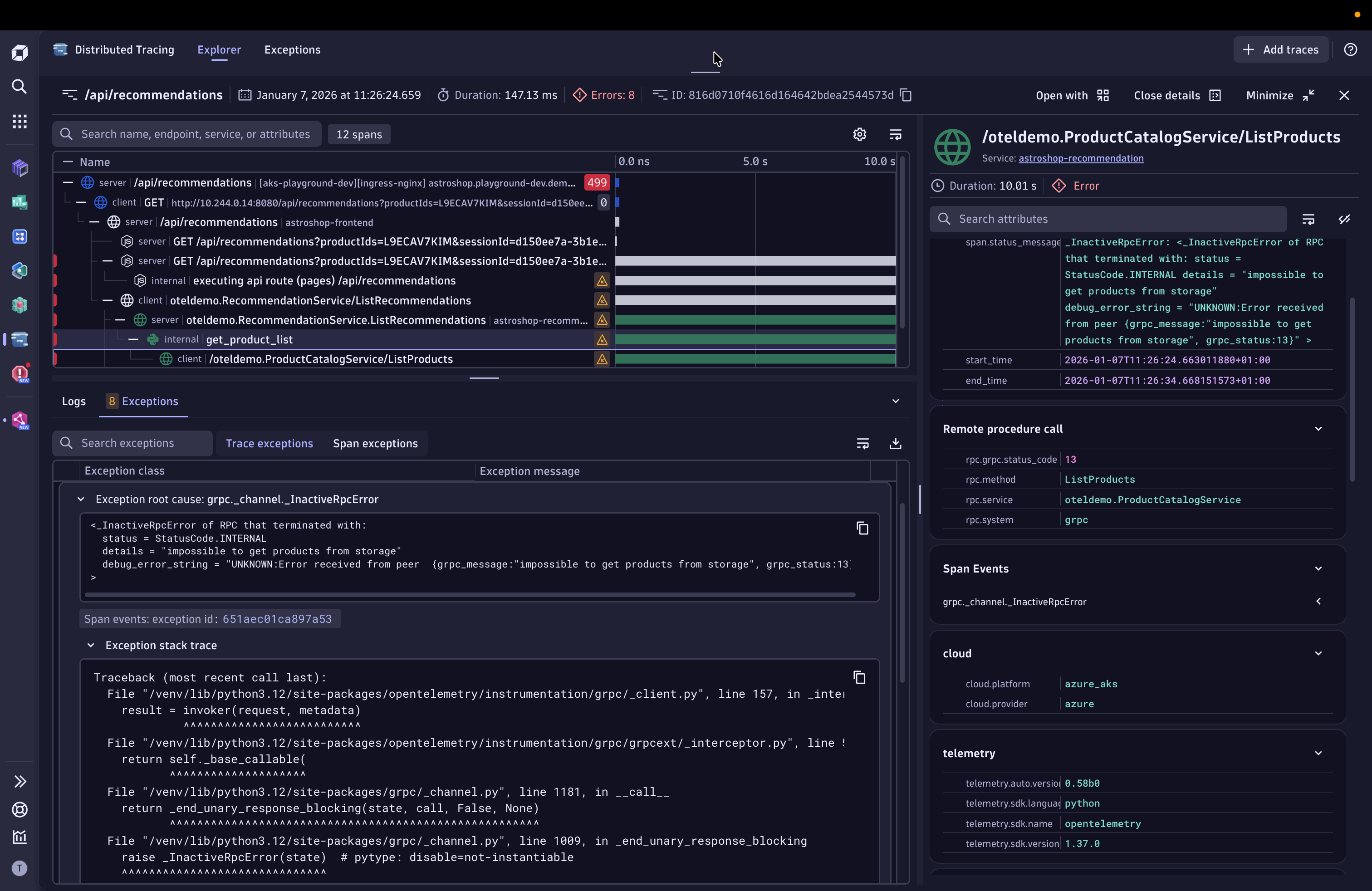

The image below shows a trace traversing three services and producing a request for each service. Each request has a root span, one of which is also the root of the trace.

The span context allows a child span to relate to the trace and its parent span. Therefore, the context needs to be propagated within a service (across different threads) but also across services and process boundaries. This typically happens via HTTP headers (like the W3C trace context) or via unique IDs in messaging systems. To learn more about context propagation, see Span and trace context propagation.

Attributes are key-value pairs that provide details about a span, request, or resource such as response codes, HTTP methods, and URLs. Via attributes, you can group, query, find, and analyze your traces and spans.

Use cases

Dynatrace uses attribute metadata to

Best practices

If you collect trace data via

Services are traversed by distributed traces. On horizontally scaled services, specific Service Instances process each span. Services are determined and named based on available attributes or properties that are collected along with the spans.

Use cases

You can integrate OpenTelemetry and OneAgent to collect trace data—like request status, response time, versions, infrastructure information, and other relevant metadata as attributes. The trace context, including the unique trace ID, is then propagated across your apps and microservices.

Best practices

Before getting started with distributed tracing, understand how setup and trace data collection differs between OpenTelemetry and OneAgent. The following is an overview of the key differences.

To get started see

The new tracing experience is rolled out in stages to extend access to Dynatrace SaaS DPS customers until March 2025. The availability timing depends on the geographic region and the overall trace volume of your account. For more information, reach out to your Customer Success Manager.

Yes. Once you start analyzing traces in the Distributed Tracing app, you can continue to use Distributed Traces Classic side by side.

DPS FullStack and/or Custom Traces Classic. No additional costs apply when you're using the new Distributed Tracing app.

Yes. Go to Distributed Tracing and select Show facets > Reset to default.

Update to the latest version of OneAgent.

Not yet.
