Run SQL extensions on Kubernetes

  • Latest Dynatrace
  • How-to guide
  • 5-min read

Create a configuration for your SQL based extension executing on Kubernetes.

Supported extensions

The following database types are supported, both as official Dynatrace Hub extensions and as custom extensions:

  • Oracle
  • Microsoft SQL Server
  • PostgreSQL
  • MySQL / MariaDB
  • SAP HANA
  • IBM Db2
  • Generic JDBC

Prerequisites

  • A DynaKube with SQL extensions enabled (.spec.extensions.databases) and all pods in a healthy state. For setup instructions, see Enable Dynatrace SQL database extensions.

  • Dynatrace version 1.346+.

  • SQL Extension Executor 1.345+.

  • Extension Execution Controller 1.345+.

  • If you deploy a custom extension signed with your own certificate, configure the signing certificate in DynaKube before deploying the extension.
    See Custom extension signing certificates and customExtensionCertificates in the DynaKube parameters reference.

Create monitoring configuration

Via web UI

Latest Dynatrace

  1. Open Extensions Extensions and select the extension you want to run.

  2. Select Add configuration.

  3. Select Kubernetes.

  4. Set Executor ID to the executor group ID defined in your DynaKube manifest (see .spec.extensions.databases).

  5. Choose how to target Kubernetes clusters:

    Target a single cluster—enable the Use single cluster toggle. A searchable list of available Kubernetes clusters appears. Select the cluster you want to target.

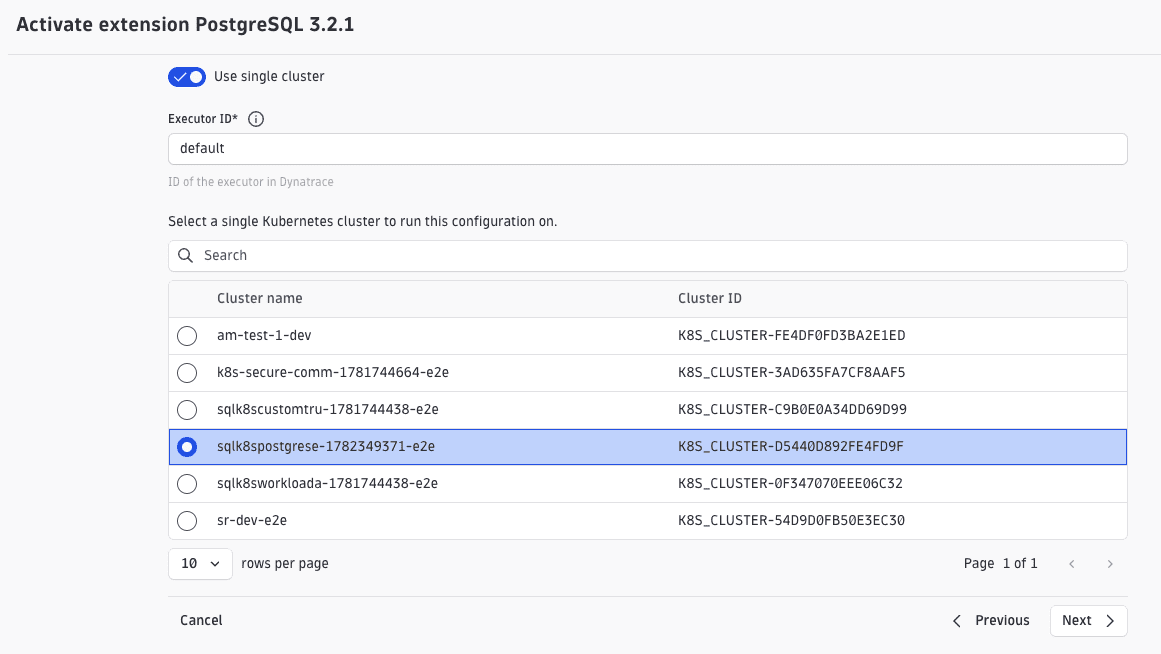

    Single cluster selection list with Use single cluster toggle enabled
    Single cluster selection list with Use single cluster toggle enabled

    Target clusters by pattern—leave the Use single cluster toggle disabled. Select Add cluster name pattern and enter a pattern (for example, *production*). The extension runs on all clusters whose name matches the pattern, including clusters connected in the future.

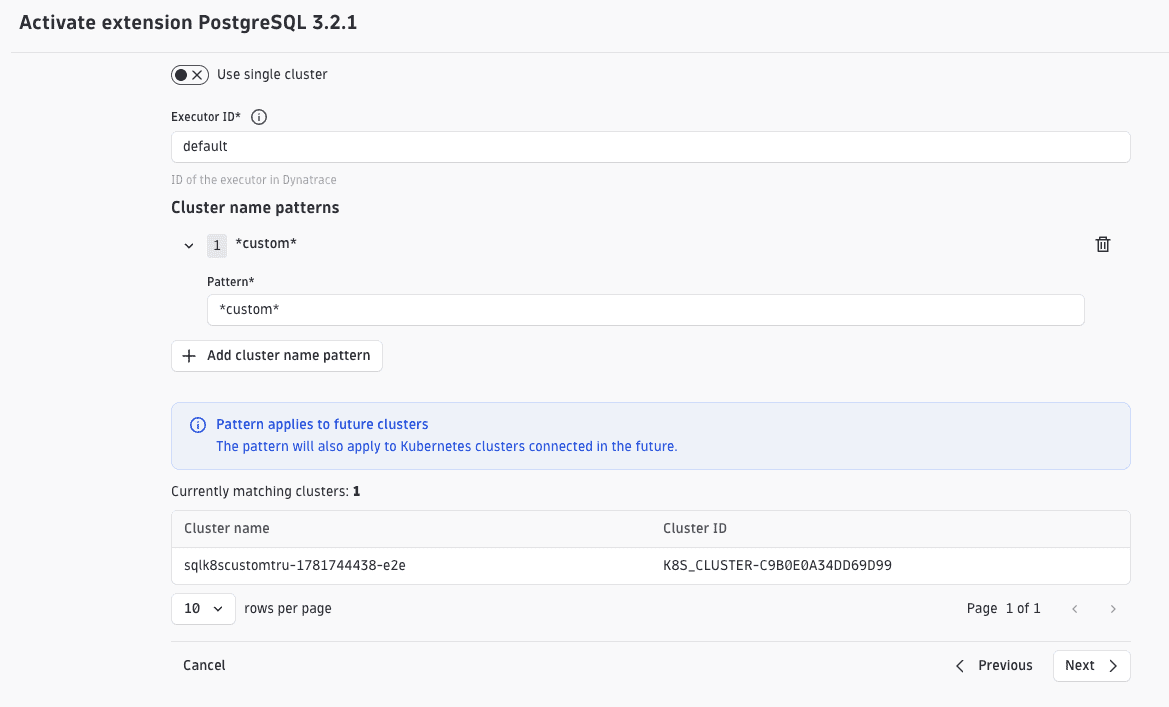

    Cluster name pattern configuration showing pattern custom matching one cluster
    Cluster name pattern configuration showing pattern custom matching one cluster

  6. Select Next and provide database endpoints and authentication parameters. Once you save the configuration, Dynatrace attempts to run the extension on the targeted Kubernetes cluster. Allow a few minutes for the configuration to take effect, then verify the result on the Health tab.

Via API

Use the Extensions API to create a monitoring configuration programmatically.

The following example creates a PostgreSQL monitoring configuration targeting your SQL Extension Executor on Kubernetes:

[
  {
    "scope": "kubernetes",
    "value": {
      ...
      "activationContext": "CONTAINER",
      "isSingleClusterConfiguration": true,
      "kubernetesClusterId": "<cluster-id>",
      "executorId": "default",
      "sqlPostgresContainer": {
        "endpoints": [ ... ]
      }
    }
  }
]
[
  {
    "scope": "kubernetes",
    "value": {
      ...
      "activationContext": "CONTAINER",
      "isSingleClusterConfiguration": false,
      "clusterNamePatterns": [
        "<cluster-name-pattern>"
      ],
      "executorId": "default",
      "sqlPostgresContainer": {
        "endpoints": [ ... ]
      }
    }
  }
]

The request body fields for Kubernetes monitoring configurations:

FieldDescription

scope

Must be "kubernetes" to target an SQL Extension Executor deployment in Kubernetes.

activationContext

Must be "CONTAINER" to run the extension inside an SQL Extension Executor pod.

isSingleClusterConfiguration

true to target one cluster by ID; false to match clusters by name pattern.

kubernetesClusterId

ID of the Kubernetes cluster to monitor. Required when isSingleClusterConfiguration is true.

clusterNamePatterns

List of name patterns. All Kubernetes clusters whose name matches any of the provided patterns will be targeted by this configuration. Required when isSingleClusterConfiguration is false. Use * as a wildcard (for example, *production*).

executorId

The executor group ID as defined in .spec.extensions.databases[].id in your DynaKube.

sql*Container.endpoints

Database connection endpoints and authentication parameters. The field name is vendor-specific: sqlOracleContainer, sqlServerContainer, sqlPostgresContainer, sqlMySqlContainer, sqlHanaContainer, sqlDb2Container, or jdbcContainer for generic JDBC.

The full content of the activation JSON varies based on the SQL vendor, extension version, enabled features, and other conditions. To get the most up-to-date schema with all supported fields, use one of the following options:

  • Use the GET extension schema endpoint to retrieve the full schema for a specific extension version programmatically:

    curl -X GET "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/{extension-version}/schema" \
    -H "accept: application/json" \
    -H "Authorization: Bearer {platform-token}"

  • If you already have a monitoring configuration in your environment, retrieve its payload using the GET monitoring configuration endpoint:

    curl -X GET "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/monitoring-configurations/{configuration-id}" \
    -H "accept: application/json" \
    -H "Authorization: Bearer {platform-token}"

    Alternatively, download an example from the last page of the selected configuration view in Extensions Extensions.
