Manage Extensions

• Latest Dynatrace
• How-to guide
• 7-min read
• Updated on Apr 29, 2026

Manage Dynatrace extensions for hundreds of technologies.

Prerequisites

Permissions

Things to consider

If you can't access Extensions, make sure you have the required permissions, specifically those starting with extensions:configuration and extensions:definitions. For additional information, refer to Working with policies and IAM Policy - Read and write permissions on extensions configurations in the Dynatrace Community.

Overview

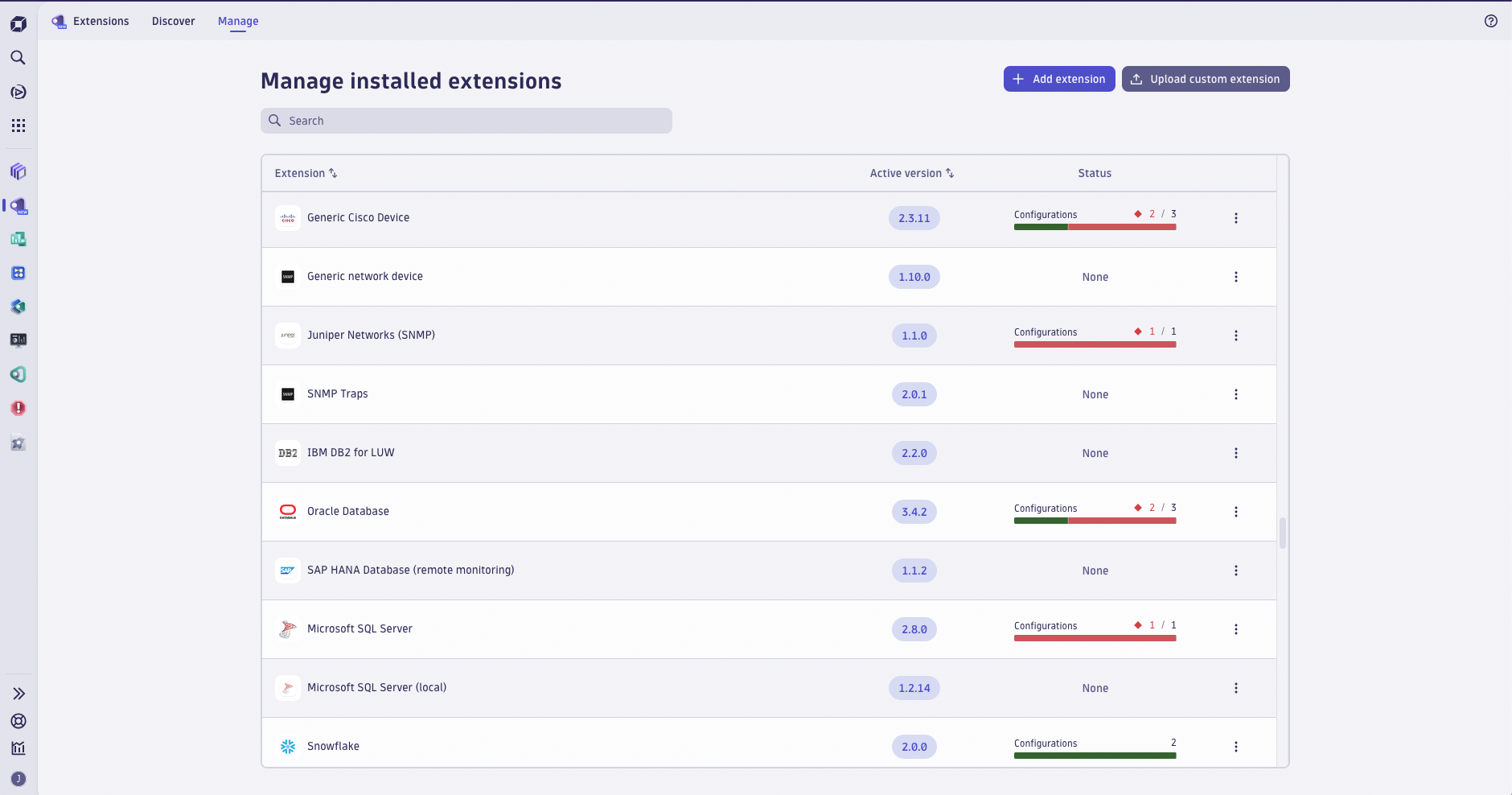

Extensions allows you to extend Dynatrace capabilities for data acquisition and domain expertise to hundreds of technologies. Extensions app is your central resource for managing and configuring Extensions 2.0.

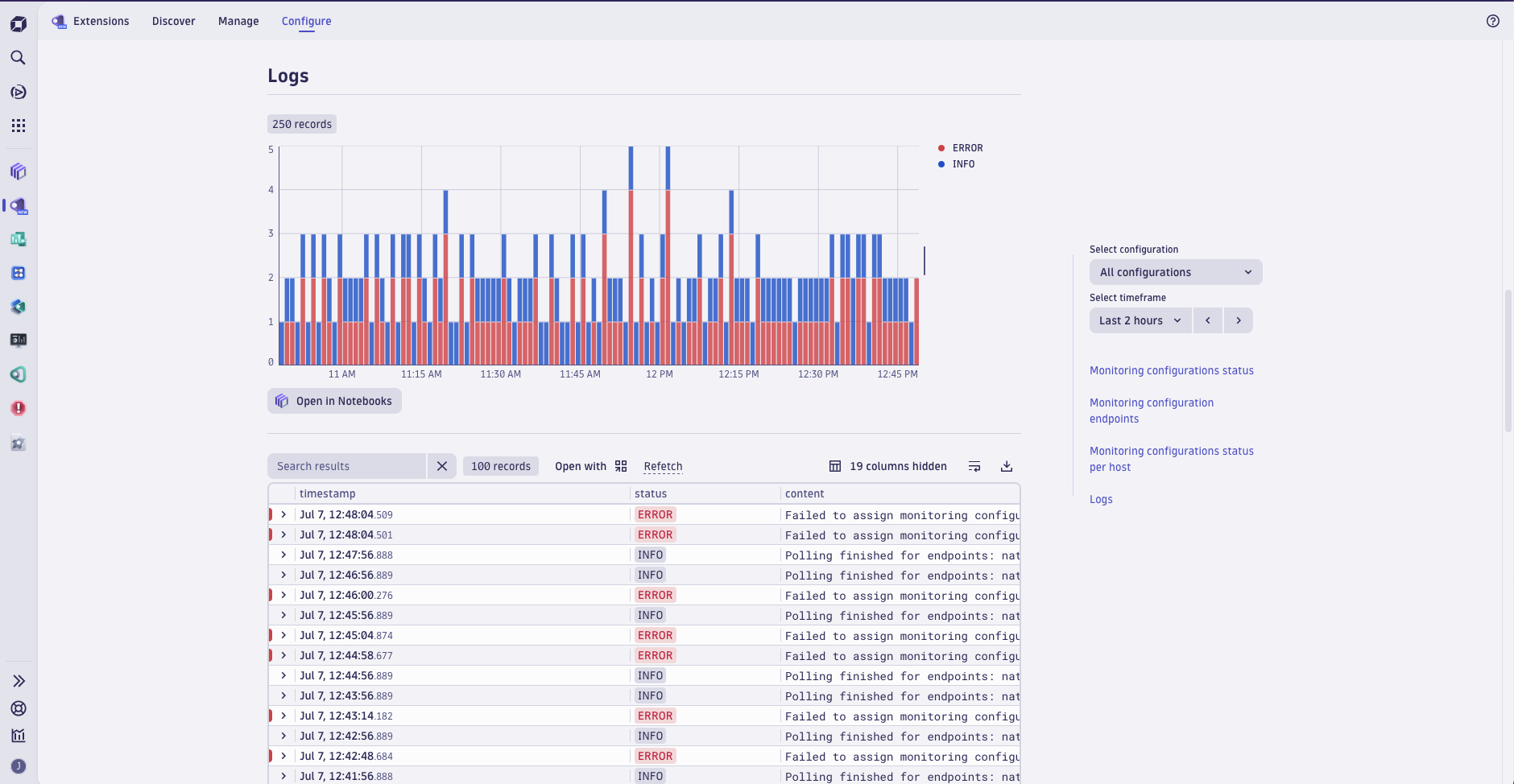

1 of 5The Monitoring configs tab lists the configs that are available for each extension. Includes extension version used by each config and status.

Dynatrace Hub

Upload a custom extension from Dynatrace Hub

Dynatrace Hub verifies the extension archive and structure, then automatically enables it after a successful upload.

Most fields are pre-filled based on the extension YAML file. You can provide release notes information explaining why the extension version changed.

Deploy an extension from Dynatrace Hub

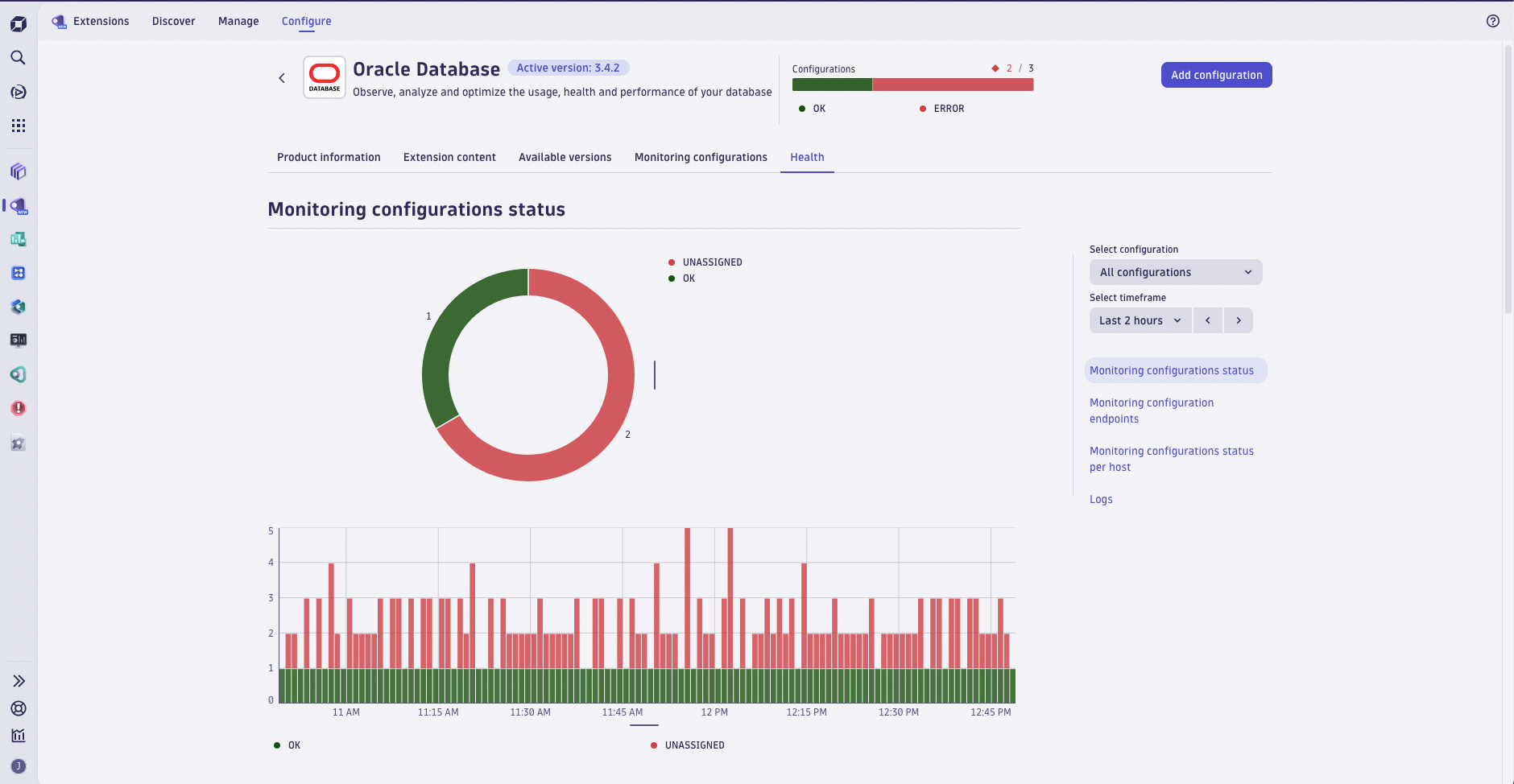

You can now check the Product information, Extension content, Available versions, Monitoring configurations, and Health of your extension by selecting each of the tabs.

Define devices

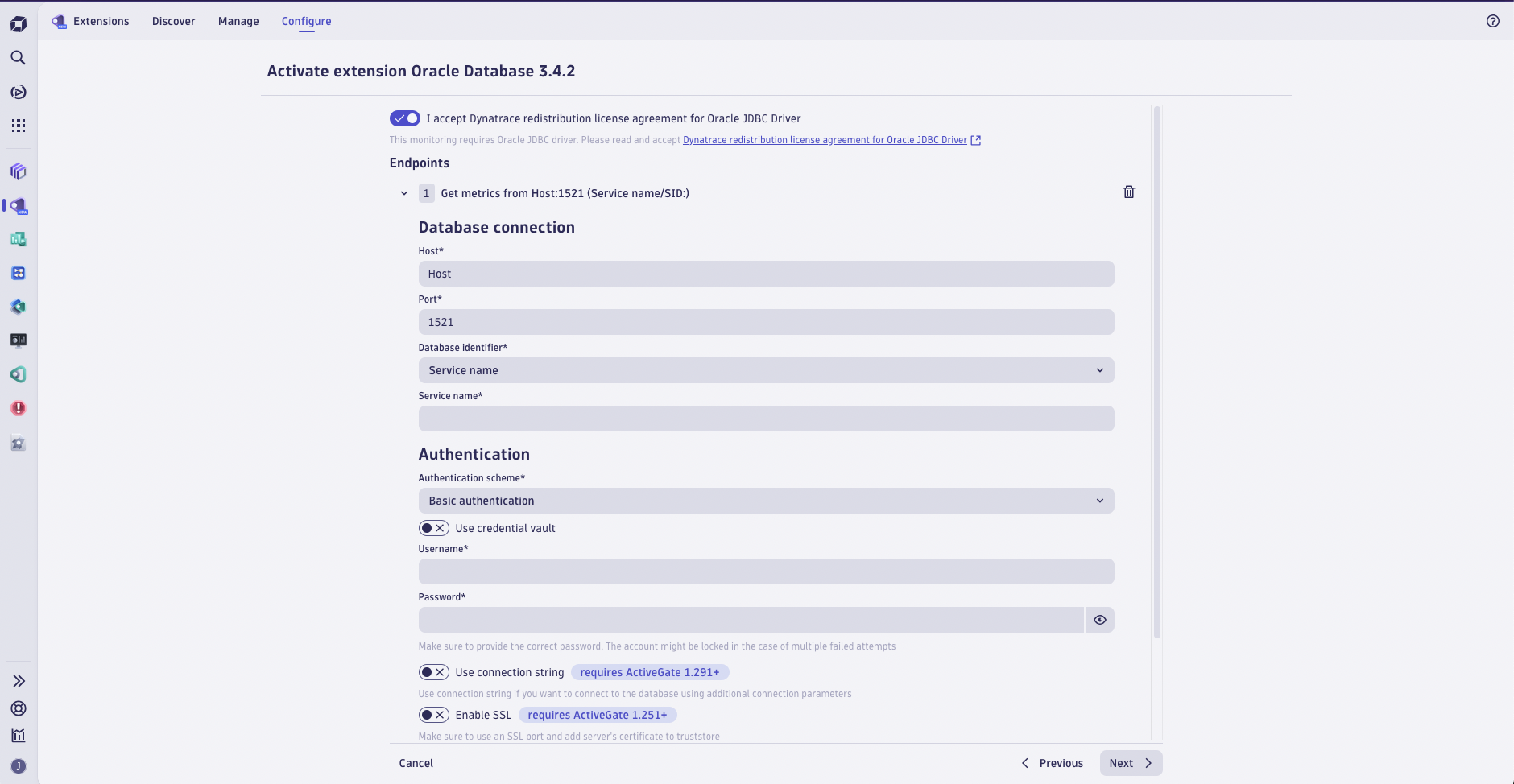

Select Add device to define the devices from which you want to collect data and provide the device connection details:

Start monitoring

Your extension appears in Dynatrace Hub. The next step is to provide the monitoring configuration for your extension. The detailed steps depend on your extension data source. For more information, see:

Update an extension from Dynatrace Hub

To update an extension, upload a new version. Dynatrace Hub automatically activates the new extension version.

Delete an extension from Dynatrace Hub

You can uninstall an extension or remove a version of that extension.

To uninstall an extension

To delete extension versions

When you delete a version, Dynatrace Hub activates the latest available version.

Dynatrace API

API permissions

You need a platform token with the following scopes to manage the extension lifecycle:

Upload an extension with Dynatrace API

Run the following command to upload the extension package to your environment. For this example, we use the Dynatrace SaaS URL:

curl -X POST "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}" \
-H "Content-Type: application/octet-stream" \
--data-binary "@MyCustomExtension.zip"

Replace:

After a successful upload, the Dynatrace API returns basic extension details with HTTP 201, including the extension name, version, and minimum Dynatrace version required to run the extension:

{
   "extensionName": "custom:my.company.extension",
   "version": "1.0.0",
   "author": {
      "name": "My Company"
   },
   "dataSources": [],
   "variables": [],
   "featureSets": [],
   "minDynatraceVersion": "1.213.0"
}

Activate an extension with Dynatrace API

After you upload the extension to your environment, you need to activate the environment configuration. This step is necessary because you can upload up to 10 extension versions but only one version can be active at a time. When you activate the extension, you specify which version to use.

Run the following command to activate the extension in your environment. For this example, we use the Dynatrace SaaS URL.

curl -X POST "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/environment-configuration" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}" \
-H "Content-Type: application/json" \
-d "{\"version\":\"{version}\"}"

Replace:

To determine the extension name, extract the extension package, extract the extensions.zip file from the package, and open the extension.yaml file.

After a successful activation, the Dynatrace API returns the version of the activated extension:

{"version": "1.0.0"}

Start monitoring with Dynatrace API

To start monitoring, you need to create at least one monitoring configuration. The format of the JSON payload depends on the monitored data source.

curl -X POST "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/monitoring-configurations" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}" \
-H "Content-Type: application/json" \
--data "@{monitoring-configuration}"

Replace:

After a successful call, the Dynatrace API returns the monitoring configuration ID with HTTP 201:

{
  "objectId": "vu9U3hXa3q0AAAABACVleHQ6Y29tLmR5bmF0cmFjZS5zY2hlbWEtc25tcC1nZW5lcmljAAhhZ19ncm91cAAHRTJFVEVTVAAkMWMxZTlhMDctNzVkYi0zZjI0LWI4OGUtZmIxYWRiNGNjYTY4vu9U3hXa3q0",
  "code": 201
}

After a few minutes, go to metric browser and search for the metrics you defined for your extension.

Update extension with Dynatrace API

To update an extension, upload the new extension package and then update the active environment configuration version.

Upload updated extension package with API

To upload the package, use the same command you used to upload the initial version of the extension. You need to use the new extension package filename if it changed.

Update active configuration version with API

To update the active environment configuration version, use one of these methods to determine the new version:

Run the following command to switch to the new version. For this example, we use the Dynatrace SaaS URL.

curl -X PUT "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/environment-configuration" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}" \
-H "Content-Type: application/json" \
-d "{\"version\":\"{version}\"}"

Replace:

After a successful update, the Dynatrace API returns the version of the now-active extension:

{"version": "1.1.0"}

If you need to revert to an earlier version, run the command above with a different version parameter.

Delete extension with Dynatrace API

If you uploaded multiple extension versions, you need to delete all versions to completely remove the extension from your environment. Call GET /platform/extensions/v2/extensions/{extension-name} to list all available versions.

Deactivate environment configuration with API

To deactivate the currently active environment configuration, run the following command. For this example, we use the Dynatrace SaaS URL.

curl -X DELETE "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/environment-configuration" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}"

Replace:

After a successful deactivation, the Dynatrace API returns HTTP 204 with no response body.

Delete extension version with API

To delete an extension version, run the following command. In this example, we use the Dynatrace SaaS URL.

curl -X DELETE "https://{env-id}.live.dynatrace.com/platform/extensions/v2/extensions/{extension-name}/{extension-version}" \
-H "accept: application/json" \
-H "Authorization: Bearer {platform-token}"

Replace:

After a successful version deletion, the Dynatrace API returns HTTP 202 with the deleted extension details:

{
   "extensionName": "custom:my.company.extension",
   "version": "1.0.0",
   "author": {
      "name": "My Company"
   },
   "dataSources": [],
   "variables": [],
   "featureSets": [],
   "minDynatraceVersion": "1.213.0"
}

Explore in Dynatrace Hub

Explore Extensions in Dynatrace Hub.
