You can incorporate proxies, load balancers, and reverse proxies in your Dynatrace deployment. In particular, your ActiveGate configuration allows you to define one or more proxies for outgoing connections.

  • To set up a proxy for communication with the tested resource, edit the custom.properties file and set properties in the [synthetic] section.
  • To set up a proxy only for internal communication with the Dynatrace Cluster, see settings for Dynatrace Cluster communication only.
  • To set up the same proxy for both a tested resource and the Dynatrace Cluster, set properties in the [http.client] section.

Proxy configuration properties

You can use the following properties when configuring a proxy for your Synthetic-enabled ActiveGate:

Proxy connection scenarios

These are the possible scenarios for your proxy configuration. Access to tested resource via proxy is only supported for browser monitors and http monitors.

Connect to the Dynatrace Cluster

[http.client]
proxy-server=<proxy>
proxy-port=8080
proxy-user=username
proxy-password=password


[synthetic]
proxy-off=true

Connect to both the Dynatrace Cluster and tested resource

[http.client]
proxy-server=<proxy>
proxy-port=8080
proxy-user=username
proxy-password=password

Connect to the Dynatrace Cluster and tested resources via different proxies

  • Connect to the Dynatrace Cluster

    [http.client]
    proxy-server=<proxy>
    proxy-port=8080
    proxy-user=username
    proxy-password=password

  • Connect to the tested resource

    [synthetic]
    proxy-server=<proxy between AG and tested resource>
    proxy-port=9090
    proxy-user=username_two
    proxy-password=password_two

Connect to the tested resource and/or Amazon S3

The Synthetic-enabled ActiveGate needs access to the Amazon S3 service to upload and access screenshots for browser monitors on private locations.

[synthetic]
proxy-server=<proxy between AG and tested resource>
proxy-port=8080
proxy-user=username
proxy-password=password

For more information, see Proxy Auto-Configuration (PAC) files.

Configure synthetic monitoring with direct connection to other resources

[synthetic]
proxy-server=<proxy between AG and tested resource>
proxy-port=8080
proxy-user=username
proxy-password=password
proxy-non-proxy-hosts=my.corp.org|*.gdansk.dynatrace.com

Proxy Auto-Configuration (PAC) files

You can use Proxy Auto-Configuration (PAC) files to handle complex proxy configuration for private browser monitors.

What is a PAC file?

A Proxy Auto-Configuration (PAC) file is a JavaScript function that determines whether web browser requests (HTTP, HTTPS, and FTP) go directly to the destination or are forwarded to a web proxy server (for details, see Proxy Auto-Configuration (PAC) file on developer.mozilla.org).

Provide a PAC file to your browser monitors

  1. Go to Synthetic Synthetic.

  2. Optional To filter the table for browser monitors, select Browser under Filter options on the left.

  3. From the list of browser monitors, select the monitor for which you want to provide a PAC file. This displays a preview panel on the right.

  4. Select Edit in the upper-right of the preview panel.

    From this point, you're redirected to previous Dynatrace where you can provide a PAC file URL.

  5. Switch to the script mode.

    • For a clickpath, select Recorded clickpath > Script.
    • For a single-URL monitor, select Monitor script.

  6. Add the following to the configuration object of the JSON file:

    "proxy": {
    "pacUrl": "https://www.example.com/test.pac"
    }

    pacUrl points to your hosted PAC file.

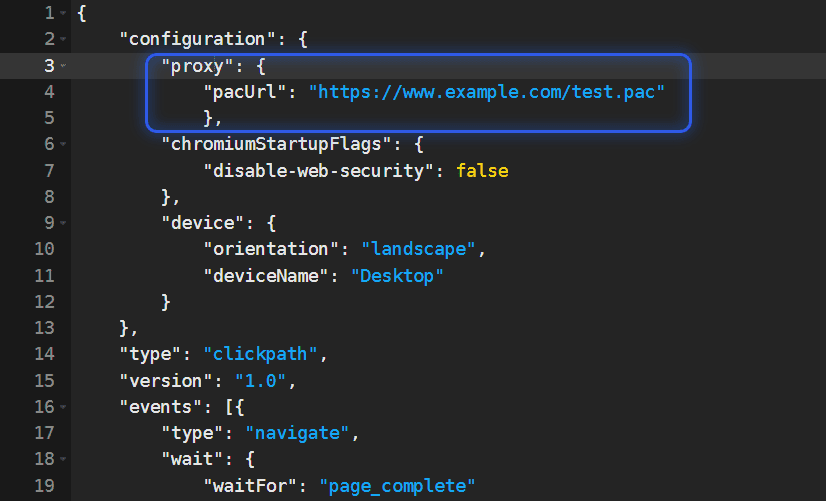

    Add a PAC file to a browser monitor.

    For more information on script mode, see Script mode for browser monitor configuration.

PAC file configuration compatibility

  • PAC file configuration only applies to private Synthetic locations, not public locations.
  • PAC file configuration applies only to the monitor you configure—each individual monitor must have the PAC file configured in its script; there is no global setting for all monitors to use a PAC file for proxy services.
  • When you set a PAC file proxy for one synthetic monitor script, it only applies to that monitor.
  • If a PAC file is specified, it overrides the proxy settings specified at the ActiveGate level for communication with the tested resource. Specifically, it overrides the properties in the [synthetic] section.
  • The PAC file must be served via HTTP/S.

Proxy configuration for FIPS mode

When Synthetic location is installed in FIPS mode, browser monitor traffic must be routed through local intercepting proxy, so that all traffic leaving the host is encrypted with a crypto library that is FIPS-certified:

FIPS proxy

In this example setup, we use the Squid proxy linked to the system's OpenSSL library, but you can use different proxy software as long as its crypto library is FIPS-certified.

  1. Install proxy on the same host as Synthetic engine:

    sudo dnf install squid

  2. Provide CA certificate for re-signing intercepted requests:

    sudo mkdir /etc/squid/ssl_cert
    sudo mv ~/prepared_ca_cert.pem /etc/squid/ssl_cert/squid.pem
    sudo chown --recursive squid:squid /etc/squid/ssl_cert
    sudo chmod 700 /etc/squid/ssl_cert
    sudo chmod 600 /etc/squid/ssl_cert/squid.pem

    If SELinux is enabled, you might need to adjust file labels to avoid permission errors.

  3. Create temporary certificate cache:

    sudo /usr/lib64/squid/security_file_certgen -c -s /var/spool/squid/ssl_db -M 4MB
    sudo chown --recursive squid:squid /var/spool/squid/ssl_db

  4. Configure the proxy to perform SSL interception (by default, /etc/squid/squid.conf):

    acl SSL_ports port 443
    acl Safe_ports port 80 443 1025-65535
    acl CONNECT method CONNECT


    http_access deny !Safe_ports
    http_access deny CONNECT !SSL_ports
    http_access allow localhost
    http_access deny all
    http_port 3128 ssl-bump generate-host-certificates=on dynamic_cert_mem_cache_size=4MB cert=/etc/squid/ssl_cert/squid.pem


    acl step1 at_step SslBump1
    ssl_bump peek step1
    ssl_bump bump all
    cache deny all

  5. Restart the proxy for configuration to take effect:

    sudo systemctl enable squid
    sudo systemctl restart squid

  6. Verify that proxy is working correctly:

    curl --proxy localhost:3128 https://example.com

  7. Optional If you chose a different proxy port, you need to adjust Synthetic configuration (by default, /var/lib/dynatrace/synthetic/config/user.properties):

    com.vuc.fips.proxy.port=3128

Proxy configuration for FIPS mode with corporate proxy

If your organization mandates use of a corporate proxy, you need to set up a second local Squid instance due to limitations of Squid:

FIPS proxy chain

If you're using a different proxy software, this might not be applicable to you.

  1. Configure proxy for FIPS, as described in the previous section.

    Squid version 5+ is required, so Red Hat version 8 and Ubuntu version 20 aren't supported.

  2. On the same host, create a second squid service definition:

    /usr/lib/systemd/system/squid2.service

    [Unit]
    Description=Squid with upstream proxy
    After=network.target network-online.target nss-lookup.target


    [Service]
    Type=notify
    LimitNOFILE=16384
    PIDFile=/run/squid2.pid
    ExecStart=/usr/sbin/squid --foreground -n squid2 -f "/etc/squid/squid2.conf"
    ExecReload=/usr/bin/kill -HUP $MAINPID
    KillMode=mixed
    NotifyAccess=all


    [Install]
    WantedBy=multi-user.target

  3. Create a second proxy configuration (/etc/squid/squid2.conf) and provide your corporate proxy host, port and authentication:

    acl SSL_ports port 443
    acl Safe_ports port 80 443 1025-65535
    acl CONNECT method CONNECT


    http_access deny !Safe_ports
    http_access deny CONNECT !SSL_ports
    http_access allow localhost
    http_access deny all
    http_port 3129


    access_log daemon:/var/log/squid/access2.log squid
    cache_log /var/log/squid/cache2.log
    pid_filename /run/squid2.pid


    cache_peer upstream-proxy.example.com parent 443 0 default no-digest proxy-only login=proxyuser:proxypass tls tls-min-version=1.2 tls-options=NO_SSLv3
    never_direct allow all
    visible_hostname squid2
    cache deny all

  4. Update first proxy configuration (/etc/squid/squid.conf) to use the second proxy as parent proxy by appending the following lines:

    cache_peer localhost parent 3129 0 default no-digest proxy-only
    never_direct allow all
    visible_hostname squid1

  5. Restart both squid services:

    sudo systemctl daemon-reload
    sudo systemctl enable squid2
    sudo systemctl start squid2
    sudo systemctl restart squid

  6. Verify that proxy chain is working correctly:

    curl --proxy localhost:3128 https://example.com

Resource considerations

  • Each Squid service requires an additional 500 MiB of RAM, which needs to be taken into account when choosing instance size for a particular workload.
  • Requests going through multiple proxies will take longer, so performance metrics will be worse than those from a non-FIPS instance.
