Dynatrace allows automatic detection of cloud applications and workloads in your Cloud Foundry, Docker and Podman, and Kubernetes/OpenShift environments. Cloud applications and workloads group similar processes into process groups and services and thus allow for version analysis.
Cloud application and workload detection provides
Starting with Dynatrace version 1.258 and OneAgent version 1.257
This feature is enabled by default.
You can configure Cloud application and workload detection independently for Kubernetes, Cloud Foundry, and plain Docker and Podman environments:
OneAgents version 1.256 and earlier do not support independent configuration per environment type. For these OneAgents, cloud application and workload detection is only enabled if the setting is activated for all three environments: Cloud Foundry, Docker and Podman, Kubernetes/OpenShift.
Starting with Dynatrace version 1.299 and OneAgent version 1.297, Dynatrace features automatic container detection based on captured cloud-vendor metadata, such as AWS ECS, AWS Fargate, Azure Container Apps, and many more. You can configure container detection as follows:
See below for how to use Kubernetes workload properties for grouping processes of similar workloads. In addition, generic process detection rules still apply, while ignoring container or platform specific properties.
By default, Dynatrace separates process groups and services for every Kubernetes workload.
You can define rules to support your release strategies (such as blue/green, canary) by using workload properties like Namespace name, Base pod name, or Container name, as well as the environment variables DT_RELEASE_STAGE
and DT_RELEASE_PRODUCT
for grouping processes of similar workloads. You can also specify the version and build version of the deployed workload by setting the DT_RELEASE_VERSION
and DT_RELEASE_BUILD_VERSION
environment variables. This gives you extended visibility into the impact of releases on your services.
The rules are scoped for Kubernetes namespaces so that you can easily migrate your existing environment namespace by namespace. The first applicable rule in the list is applied. If no rule matches, the combination of Namespace name, Base pod name, and Container name is used as a fallback.
To create a rule
Namespace name
Base pod name (e.g. "paymentservice-" for "paymentservice-5ff6dbff57-gszgq")
Container name (as defined in the pod spec)
Stage (DT_RELEASE_STAGE
)
Product (DT_RELEASE_PRODUCT
)
If Product is enabled and has no value, it defaults to Base pod name.
Set Match operator and Namespace name to define namespaces to which you want this rule to apply.
Select Save changes.
Changing the default rules may lead to the creation of new IDs for process groups and services, and the loss of custom configurations on existing process groups.
Once your process groups or services gain new IDs, be aware that:
OneAgent versions 1.241+
Dynatrace aims to provide intuitive names for process groups that make sense for DevOps teams. Creating rules for Kubernetes workloads also affects the composition of meaningful default names for process groups. The default pattern for {ProcessGroup:DetectedName}
is as follows: “<tech_prefix> <product> <STAGE> <base_pod_name>”
, where
<tech_prefix>
refers to names from detected technologies, such as the name of a technology, executable, path, and startup class.<product>
, <STAGE>
, <base_pod_name>
are optional variables and only used when included in the rule that has been applied for the respective Kubernetes namespace.Example: "index.js emailservice PROD"
, where
index.js
is <tech_prefix>
emailservice
is <product>
PROD
is <STAGE>
<base_pod_name>
isn't used in this case, so it's not included in {ProcessGroup:DetectedName}
.
If the default process group naming is too generic or doesn't reflect your naming standards, you can always customize it by creating process group naming rules.
We recommend that you propagate Kubernetes labels to environment variables in the deployment configuration (see Version detection with Kubernetes labels) using the Downward API:
app.kubernetes.io/version
-> DT_RELEASE_VERSION
app.kubernetes.io/name
-> DT_RELEASE_PRODUCT
app.kubernets.io/stage
-> DT_RELEASE_STAGE
apiVersion: apps/v1kind: Deploymentmetadata:name: emaildeployspec:selector:matchLabels:app: emailservicetemplate:metadata:annotations:metrics.dynatrace.com/path: /stats/prometheusmetrics.dynatrace.com/port: "15090"metrics.dynatrace.com/scrape: "true"labels:app: emailserviceapp.kubernetes.io/version: 0.3.6app.kubernetes.io/stage: productionapp.kubernetes.io/name: emailserviceapp.kubernetes.io/part-of: online-boutiquespec:serviceAccountName: defaultterminationGracePeriodSeconds: 5containers:- name: serverimage: gcr.io/google-samples/microservices-demo/emailservice:v0.3.6ports:- containerPort: 8080env:- name: PORTvalue: "8080"- name: DT_RELEASE_VERSIONvalueFrom:fieldRef:fieldPath: metadata.labels['app.kubernetes.io/version']- name: DT_RELEASE_PRODUCTvalueFrom:fieldRef:fieldPath: metadata.labels['app.kubernetes.io/name']- name: DT_RELEASE_STAGEvalueFrom:fieldRef:fieldPath: metadata.labels['app.kubernetes.io/stage']- name: DISABLE_TRACINGvalue: "1"- name: DISABLE_PROFILERvalue: "1"readinessProbe:periodSeconds: 5exec:command: ["/bin/grpc_health_probe", "-addr=:8080"]livenessProbe:periodSeconds: 5exec:command: ["/bin/grpc_health_probe", "-addr=:8080"]resources:requests:cpu: 100mmemory: 64Milimits:cpu: 200mmemory: 128Mi---

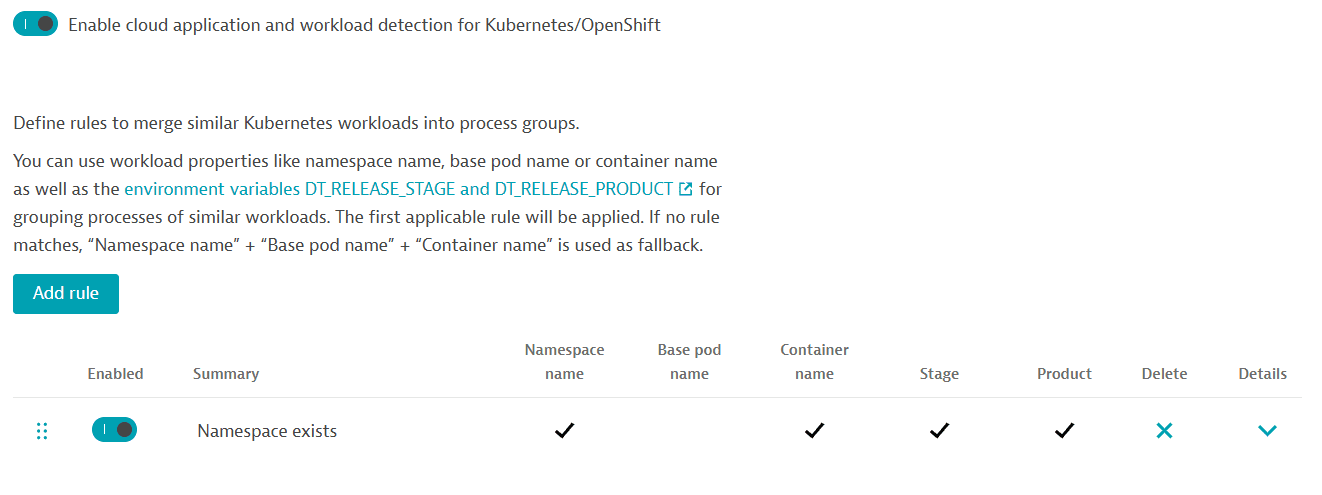

As a next step, this configuration can then be easily leveraged with one rule - Namespace exists.
As an outcome of the applied configuration, Dynatrace will merge similar processes and services with the same Product, Stage, Container name, and Namespace values. Because all these values are identical, this rule also makes workloads merge across different Kubernetes clusters into the same process group.
