NAM monitor metrics in Synthetic on Grail

Latest Dynatrace
Reference
Published Jul 01, 2025

Metrics and dimensions

Dimensions (all network availability monitors)

Name	Type	Description	Example value
`dt.entity.host`	string	If available, monitored entity ID for target	`HOST-024C103F7F86A290`
`dt.entity.multiprotocol_monitor`	string	Monitor ID (monitored entity ID)	`MULTIPROTOCOL_MONITOR-3F6C9D500287BBAF`
`dt.entity.synthetic_location`	string	Synthetic location ID (monitored entity ID)	`SYNTHETIC_LOCATION-A4F834D72840EFC1`
`dt.maintenance_window_ids`	array	UUIDs of maintenance windows	`c715d677-eb1b-3e1b-8dbc-db06cad5b8eb`
`dt.security_context`	string	The security context is used in access permissions to limit the visibility	`mySecurityContext`
`dt.synthetic.monitored_entity_ids`	array	IDs of monitored entities	`APPLICATION-EA7C4B59F27D43EB`
`interpolated`	boolean	Information whether monitor availability was interpolated	`false`
`multi_protocol.request.id`	numeric	Request sequential ID (deprecated, use `request.id`)	`2`
`multi_protocol.request.target_address`	string	Address of target entity (deprecated, use `request.target_address`)	`54.171.216.19`
`multi_protocol.request.type`	string	Type of request (deprecated, use `request.type`)	`icmp`, `tcp`
`multi_protocol.result.state`	string	Result state of monitor execution (deprecated, use `result.state`)	`SUCCESS`
`multi_protocol.result.status`	string	Execution status (deprecated, use `result.status.message`)	`HEALTHY`, `CONSTRAINT_VIOLATED`
`multi_protocol.result.status.code`	numeric	Numeric representation of the execution status (deprecated, use `result.status.code`)	`0`, `1401`
`multi_protocol.step.id`	numeric	Step sequential ID (deprecated, use `step.id`)	`1`
`request.id`	numeric	Request sequential ID	`2`
`request.target_address`	string	Address of target entity	`54.171.216.19`
`request.type`	string	Type of request	`icmp`, `tcp`
`result.state`	string	Result state of monitor execution	`SUCCESS`, `FAIL`
`result.status.code`	numeric	Numeric representation of the execution status	`0`, `1401`
`result.status.message`	string	Execution status	`HEALTHY`, `CONSTRAINT_VIOLATED`
`step.id`	numeric	Step sequential ID	`1`

Monitor metrics (all network availability monitors)

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.availability` (latest Dynatrace) `builtin:synthetic.multiProtocol.availability` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `interpolated`	Availability calculated based on the execution status of visits - `100%` for code=`0`: `HEALTHY`, `SCRIPT_FINISH`, `SKIPPED` - `0%` for error status codes such as `1401 - CONSTRAINT_VIOLATED`
`dt.synthetic.multi_protocol.execution_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.executionTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context`	Duration between the start and end the time of visit execution (in milliseconds) Metric available only if visit execution took place; both start time and end time must be available.
`dt.synthetic.multi_protocol.executions` (latest Dynatrace) `builtin:synthetic.multiProtocol.executions` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.synthetic.monitored_entity_ids` `dt.security_context` `dt.maintenance_window_ids` `result.state` `result.status.code` `result.status.message` `multi_protocol.result.state` (deprecated, use `result.state`) `multi_protocol.result.status.code` (deprecated, use `result.status.code`) `multi_protocol.result.status` (deprecated, use `result.status.message`)	Number of monitor executions in time
`dt.synthetic.multi_protocol.success_rate` (latest Dynatrace) `builtin:synthetic.multiProtocol.successRate` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.synthetic.monitored_entity_ids` `dt.security_context`	Ratio of executed steps that didn't fail (successes and skips) to all executed steps. We take into account steps that were actually executed rather than steps intended to be executed. For example, with 2 successful steps, 1 failed step, and 8 not started, the ratio is `2/3`, or `66.67%`.

Step metrics (all network availability monitors)

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.step.availability` (latest Dynatrace) `builtin:synthetic.multiProtocol.step.availability` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.type` (deprecated, use `request.type`)	Availability calculated based on the execution status of steps - `100%` for code=`0`: `HEALTHY`, `SCRIPT_FINISH`, `SKIPPED` - `0%` for error status codes such as `1401 - CONSTRAINT_VIOLATED`
`dt.synthetic.multi_protocol.step.execution_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.step.executionTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.type` (deprecated, use `request.type`)	Duration between the start and the end time of step execution (in milliseconds) Metric available only if step execution took place, with a well-defined end time; therefore, it's not available for skipped steps.
`dt.synthetic.multi_protocol.step.executions` (latest Dynatrace) `builtin:synthetic.multiProtocol.step.executions` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.type` `result.state` `result.status.code` `result.status.message` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.type` (deprecated, use `request.type`) `multi_protocol.result.state` (deprecated, use `result.state`) `multi_protocol.result.status` (deprecated, use `result.status.message`) `multi_protocol.result.status.code`(deprecated, use `result.status.code`)	Number of step executions in time
`dt.synthetic.multi_protocol.step.success_rate` (latest Dynatrace) `builtin:synthetic.multiProtocol.step.successRate` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.type` (deprecated, use `request.type`)	Ratio of executed requests that didn't fail to all executed requests. If a step doesn't have executed requests (because nothing matches its definition in a monitor configuration), we return the value 100%. For example, with 2 successful requests and 1 failed request, the ratio is 2/3, or 66.67%.

Request metrics (all network availability monitors)

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.request.availability` (latest Dynatrace) `builtin:synthetic.multiProtocol.request.availability` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Availability calculated based on the execution status of requests - 100% for code=`0`: `HEALTHY`, `SCRIPT_FINISH`, `SKIPPED` - 0% for error status codes such as `1401 - CONSTRAINT_VIOLATED`
`dt.synthetic.multi_protocol.request.executions` (latest Dynatrace) `builtin:synthetic.multiProtocol.request.executions` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.synthetic.monitored_entity_ids` `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `result.state` `result.status.code` `result.status.message` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`) `multi_protocol.result.state` (deprecated, use `result.state`) `multi_protocol.result.status` (deprecated, use `result.status.message`) `multi_protocol.result.status.code`(deprecated, use `result.status.code`)	Number of request executions in time

ICMP monitor metrics

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.icmp.packets_received` (latest Dynatrace) `builtin:synthetic.multiProtocol.icmp.packetsReceived` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Number of packets that were returned successfully
`dt.synthetic.multi_protocol.icmp.packets_sent` (latest Dynatrace) `builtin:synthetic.multiProtocol.icmp.packetsSent` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Total number of packets sent
`dt.synthetic.multi_protocol.icmp.request_execution_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.icmp.requestExecutionTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Duration between the start and the end time of request handling (in milliseconds) This metric is always provided, even if actual request execution did not take place (for example, because of exceptions or timeouts). Diagnostic metric—allows for validation of external ping process execution time.
`dt.synthetic.multi_protocol.icmp.round_trip_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.icmp.roundTripTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Round-Trip Time for received packets
`dt.synthetic.multi_protocol.icmp.success_rate` (latest Dynatrace) `builtin:synthetic.multiProtocol.icmp.successRate` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`)	Ratio of received packets to sent packets Doesn't take into account the configured number of packets to be sent. For example, out of 10 packets to be sent, if 5 were sent and 4 were received, the ratio is `4/5`, or `80.00%`.

TCP monitor dimensions

Name	Type	Description	Example value
`multi_protocol.request.tcp_port_number`	string	TCP request port number, as provided in monitor configuration (deprecated, use `request.tcp_port_number`)	`665`
`request.tcp_port_number`	string	TCP request port number, as provided in monitor configuration	`665`

TCP monitor metrics

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.tcp.connection_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.tcp.connectionTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`) `request.tcp_port_number` `multi_protocol.request.tcp_port_number` (deprecated, use: `request.tcp_port_number`)	Duration between the start time (socket creation and connection) and the end time (when confection is successfully established) in milliseconds Metric available only if request execution took place (with no exceptions or timeouts), with a well-defined end time.

DNS monitor dimensions

Name	Type	Description	Example value
`multi_protocol.request.dns_record_type`	string	DNS record type to be queried by request, as provided in configuration (deprecated, use `request.dns_record_type`)	`A`, `AAAA`, `CNAME`
`request.dns_record_type`	string	DNS record type to be queried by request, as provided in configuration	`A`, `AAAA`, `CNAME`

DNS monitor metrics

Name	Type	Dimensions	Description
`dt.synthetic.multi_protocol.dns.resolution_time` (latest Dynatrace) `builtin:synthetic.multiProtocol.dns.resolutionTime` (previous Dynatrace)	numeric	`dt.entity.multiprotocol_monitor` `dt.entity.synthetic_location` `dt.entity.host` (only for monitors with filter defined) `dt.security_context` `step.id` `request.id` `request.target.address` `request.type` `multi_protocol.step.id` (deprecated, use `step.id`) `multi_protocol.request.id` (deprecated, use `request.id`) `multi_protocol.request.target_address` (deprecated, use `request.target.address`) `multi_protocol.request.type` (deprecated, use `request.type`) `request.dns_record_type` `multi_protocol.request.dns_record_type` (deprecated, use: request.dns_record_type)	Duration between the start and the end time of the request to the DNS server, in milliseconds Metric available only if request execution took place (with no exceptions or timeouts), with a well-defined end time.

DQL queries to extract data

Use DQL queries to extract data with metrics and dimensions.

The following examples use Notebooks Notebooks to demonstrate how to work with the results of network availability monitors. They use result metrics as a starting point to explore possibilities of extracting and interpreting data with DQL.

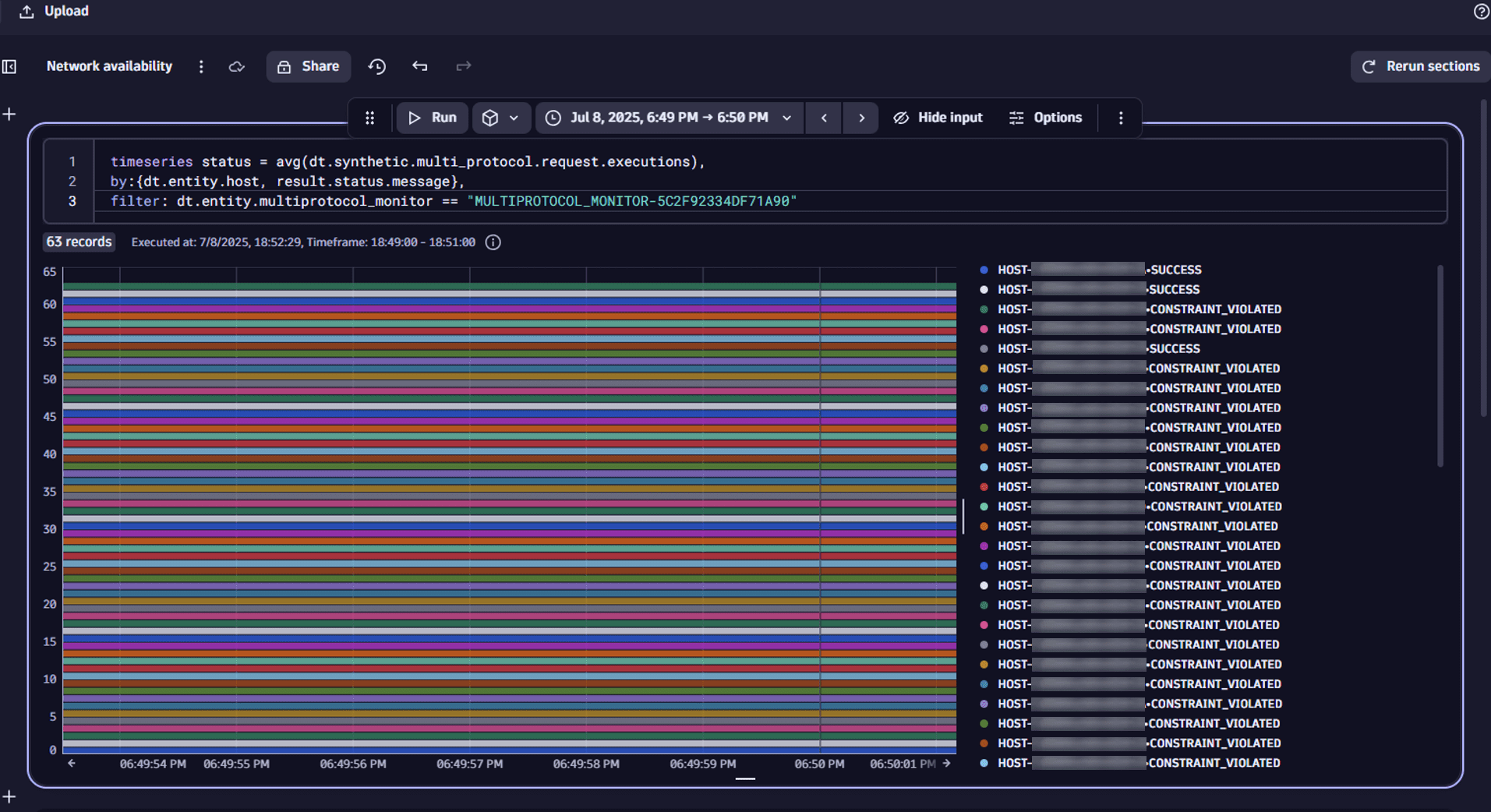

Host entity status for ICMP requests

The monitor MULTIPROTOCOL_MONITOR-5C2F92334DF71A90 executes ICMP requests and filters monitored hosts with "targetFilter": "hostGroup == e2e-synthetic-private-location" (which resolves to about 26 hosts).

By using the dt.synthetic.multi_protocol.request.executions metric and splitting it by the dt.entity.host and result.status.message dimensions, we can display the status of the connection to a particular monitored host entity in this host group. Some hosts do not fulfill the expected success rate; instead of being HEALTHY, their requests are marked as CONSTRAINT_VIOLATED.

timeseries status = avg(dt.synthetic.multi_protocol.request.executions),
by:{dt.entity.host, result.status.message},
filter: dt.entity.multiprotocol_monitor == "MULTIPROTOCOL_MONITOR-5C2F92334DF71A90"

Number of ICMP packets sent and received

The monitor MULTIPROTOCOL_MONITOR-548C3CD54183CED9 executes ICMP requests to hosts with the explicitly defined IP addresses, 18.x.x.x, 10.x.x.x, and 34.x.x.x. Each of these IP addresses is mapped to a distinct host.

We use the sum of the dt.synthetic.multi_protocol.icmp.packets_sent and the sum of the dt.synthetic.multi_protocol.icmp.packets_received metrics to get insight into how many packets were sent and received.

We split results by the request.target_address dimension and filter data for 18.x.x.x and 10.x.x.x only.

For 18.x.x.x, the same number of packets were received as were sent, but for 10.x.x.x, all packets are lost and none were received.

timeseries {
  packets_sent = sum(dt.synthetic.multi_protocol.icmp.packets_sent),
  packets_received= sum(dt.synthetic.multi_protocol.icmp.packets_received)
},
by:{request.target_address},
filter: dt.entity.multiprotocol_monitor == "MULTIPROTOCOL_MONITOR-548C3CD54183CED9"
    AND (
        request.target_address == "18.x.x.x"
        OR request.target_address == "10.x.x.x"
    )

Target status for TCP requests

The monitor MULTIPROTOCOL_MONITOR-74E68F22FF5E9227 executes TCP requests to hosts from a host group that resolves to the IP addresses 18.x.x.x, 34.x.x.x, and 44.x.x.x.

To display the status of the TCP connection for an IP-port pair, we use the dt.synthetic.multi_protocol.request.executions metric and split it by the following dimensions:

request.target_address
request.tcp_port_number
result.status.message

In the following example:

Each host has the ports 22 (SSH) and 8080 (HTTP server) open, and each connection to the hosts on these ports succeeds with the HEALTHY status.
No service uses the standard HTTP port 80. Therefore, connections to all hosts on that port fail with the TCP socket connection error status.

Note that results of this query can be limited to just successful requests by filtering by the multi_protocol.result.status.code dimension (code == 0).

timeseries status = sum(dt.synthetic.multi_protocol.request.executions),
by: {request.target_address, request.tcp_port_number, result.status.message},
filter: dt.entity.multiprotocol_monitor == "MULTIPROTOCOL_MONITOR-74E68F22FF5E9227"
//  and result.status.code == 0

TCP connection time to target port

The monitor MULTIPROTOCOL_MONITOR-74E68F22FF5E9227 executes TCP requests to hosts from a host group that resolves to the IP addresses 18.x.x.x, 34.x.x.x, and 44.x.x.x.

In the following example, we split the results by monitored host entity IDs.

To check typical time taken for a successful connection to the target port for a host, we use the average of the dt.synthetic.multi_protocol.tcp.connection_time metric split by the dimensions:

dt.entity.host
request.target_address
request.tcp_port_number

Only ports 22 (SSH) and 8080 (HTTP server) are open, and these are the only ports for which dt.synthetic.multi_protocol.tcp.connection_time is available. The hosts are effectively in different geographical locations (Ohio, Oregon, and North Virginia in the United States), so a difference in connection times is expected.

timeseries duration = avg(dt.synthetic.multi_protocol.tcp.connection_time),
by:{dt.entity.host, request.target_address, request.tcp_port_number},
filter: dt.entity.multiprotocol_monitor == "MULTIPROTOCOL_MONITOR-74E68F22FF5E9227"

Execution statuses

All network availability monitors

Code / message	Example	Description
`0 HEALTHY`	-	All is well.
`-1 UNEXPECTED_ERROR`	Resource saturation	Unexpected problem that's usually related to monitor's execution components.
`1401 CONSTRAINT_VIOLATED`	-	Constraint conditions that were defined in monitor's configuration were not met.
`1604 VALIDATION_ERROR`	-	Improper monitor configuration detected.
`12013 UNKNOWN_HOST`	Error in the hostname	IP address of the host cannot be determined. Possible causes: - Invalid hostname - DNS server unreachable - DNS cache issues - Firewall or proxy interference
`12033 Execution timeout`	Server operates slowly.	Timeout of request execution. Possible causes: - Network issues - Slow or unresponsive server or service - Connection blocked by firewall rules - Timeout is too small.

TCP monitor execution statuses

Code / message	Example	Description
`22000 TCP socket connection error`	Service is not listening on a specified port.	This status means that the host was identified and available but the TCP connection could not be established or was unexpectedly closed. Additional explanation for the exact exception is provided. The status is used if a `java.net.SocketException` is returned during the connection attempt. Possible causes: - Service is not listening on the specified port. - Service reached resource or connection limit. - Service became unavailable during the socket connection process.
