Browser monitor metrics in Synthetic on Grail

Latest Dynatrace
Reference

Metrics and dimensions

Monitor

Metric key	Metric name	Metric description	Unit	Dimensions
`dt.synthetic.browser.availability`	Availability rate (by location) [Browser monitor]	The availability rate of browser monitors.	%	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.synthetic.monitored_entity_ids` `dt.security_context` `interpolated`
`dt.synthetic.browser.executions`	Execution count (by status) [Browser monitor]	The number of monitor executions.	count	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.maintenance_window_ids` `dt.synthetic.monitored_entity_ids` `result.state` `result.status.code` `result.status.message` `dt.security_context`
`dt.synthetic.browser.duration`	Duration [Browser monitor]	Duration of browser monitor, calculated as a sum of all steps durations. The metric source is the new JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.classic.total_duration`	Total duration (classic) [Browser monitor]	Total duration of browser monitor, measured as a sum of total durations of all steps. The metric source is the classic JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.user_events.duration`	User events duration [Browser monitor]	Duration of browser monitor, calculated as a sum of all steps-level user events durations. The metric source is the new JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.user_events.total_duration`	User events total duration [Browser monitor]	Total duration of browser monitor, measured as a sum of all steps-level values of `User events total duration` metric. The metric source is the new JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`

Steps

Metric key	Metric name	Metric description	Unit	Dimensions
`dt.synthetic.browser.step.executions`	Execution count (step) (by status) [Browser monitor]	The number of step executions. The former key: `dt.synthetic.browser.event.executions`.	count	`dt.entity.synthetic_test` `dt.entity.synthetic_test_step` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids` `dt.maintenance_window_ids` `result.state` `result.status.code` `result.status.message`
`dt.synthetic.browser.step.duration`	Duration (step) [Browser monitor]	Duration of individual browser monitor step, measured as a sum of user action events of the step. If there are no user actions then measured as duration from the beginning of the step to the max end time of the load event handler phase. The metric source is the new JS agent. The former key: `dt.synthetic.browser.event.duration`	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_test_step` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.step.classic.total_duration`	Total duration (classic) (step) [Browser monitor]	Total duration of individual browser monitor step, measured as a sum of total durations of all events in the step. The metric source is the classic JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_test_step` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.step.user_events.duration`	User events duration (step) [Browser monitor]	Duration of individual browser monitor step, measured from the start of the first user event of the step to the end of the last user event of the step. The metric source is the new JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_test_step` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`
`dt.synthetic.browser.step.user_events.total_duration`	User events total duration (step) [Browser monitor]	Total duration of individual browser monitor step, measured as a sum of durations of all user events in the step. The metric source is the new JS agent.	ms	`dt.entity.synthetic_test` `dt.entity.synthetic_test_step` `dt.entity.synthetic_location` `dt.security_context` `dt.synthetic.monitored_entity_ids`

Use cases

The following use cases show how you can use the metrics in your DQL queries.

Track monitor availability

Suppose you need to identify monitors that have availability issues.

The following query uses the dt.synthetic.browser.availability metric and the dt.entity.synthetic_test dimension to return the monitors sorted by their availability, with the least available monitors listed first.

timeseries {
  availability_series = avg(dt.synthetic.browser.availability) },
by:{ dt.entity.synthetic_test }
| fieldsAdd monitor_name = entityName(dt.entity.synthetic_test)
| summarize { monitor_name = takeFirst(monitor_name),
              availability =  avg(arrayAvg(availability_series)) },
            by: {dt.entity.synthetic_test}
| sort availability asc

The raw response looks like this:

{
  "records": [
    {
      "dt.entity.synthetic_test": "SYNTHETIC_TEST-06AFE815FF214729",
      "monitor_name": "Browser monitor1",
      "availability": 31.746031746031743
    },
    {
      "dt.entity.synthetic_test": "SYNTHETIC_TEST-094D2E6AA99D2252",
      "monitor_name": "Browser monitor2",
      "availability": 46.03174603174603
    },
    {
      "dt.entity.synthetic_test": "SYNTHETIC_TEST-0C362AEC36824874",
      "monitor_name": "Browser monitor3",
      "availability": 100
    },

Analyze failures caused by server interactions

Suppose you need to analyze the failures of browser monitors attributed to server interactions.

The following query uses the dt.synthetic.browser.event.executions metric and the dt.entity.synthetic_test, result.status.message, and result.status.code dimensions.

timeseries {
  execution_series = sum(dt.synthetic.browser.step.executions)
}, by:{ result.status.message,
        result.status.code,
        dt.entity.synthetic_test},
   interval: 15m
| filter result.status.code != 0
| filter (result.status.code < 1000 and result.status.code >= 400) or in(result.status.code, array(10054, 12014, 12183))

| summarize { dt.synthetic.monitor_ids = collectArray(dt.entity.synthetic_test),
               execution_number = sum(arraySum(execution_series)),
               executions = sum(execution_series[]) },
             by:{timeframe, interval, result.status.message, result.status.code}

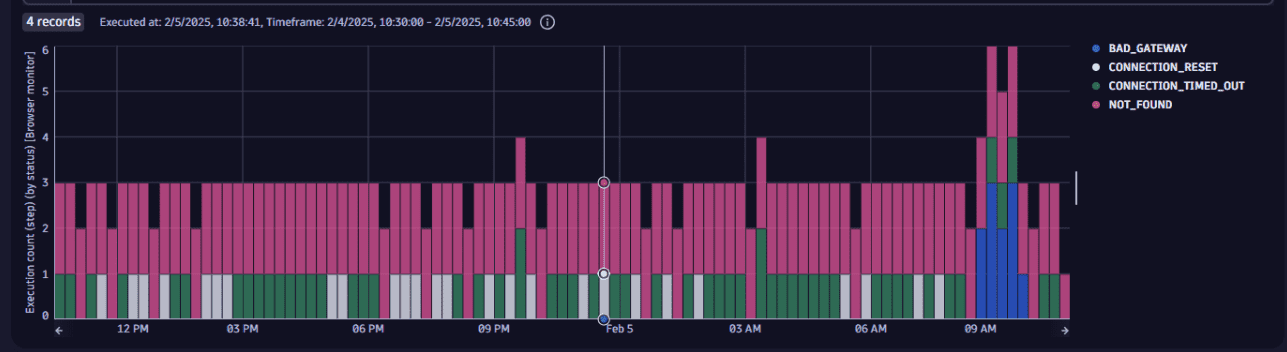

The visualized response looks like this:

Evaluate the frontend availability and performance

Suppose you need to evaluate frontend availability and performance.

The following query uses the dt.synthetic.browser.availability, dt.synthetic.browser.step.duration, and dt.synthetic.browser.executions metrics together with the dt.synthetic.monitored_entity_ids dimension.

timeseries {
  availability_series = avg(dt.synthetic.browser.availability),
  performance_series = avg(dt.synthetic.browser.step.duration),
},
by:{ dt.synthetic.monitored_entity_ids }
| expand entity = dt.synthetic.monitored_entity_ids
| filter isNotNull(entity)
| fieldsAdd entity_name = entityName(entity, type:"dt.entity.application")
| fieldsAdd frontend_name = coalesce(entity_name, entity)
| summarize { frontend_name = takeLast(frontend_name),
              availability =  avg(arrayAvg(availability_series)),
              performance =  avg(arrayAvg(performance_series))
            }, by: {dt.entity.application = entity}
| sort availability asc, performance desc
| limit 10
| fieldsRename  `Frontend` = frontend_name,
                `Availability` = availability,
                `Average event duration` = performance

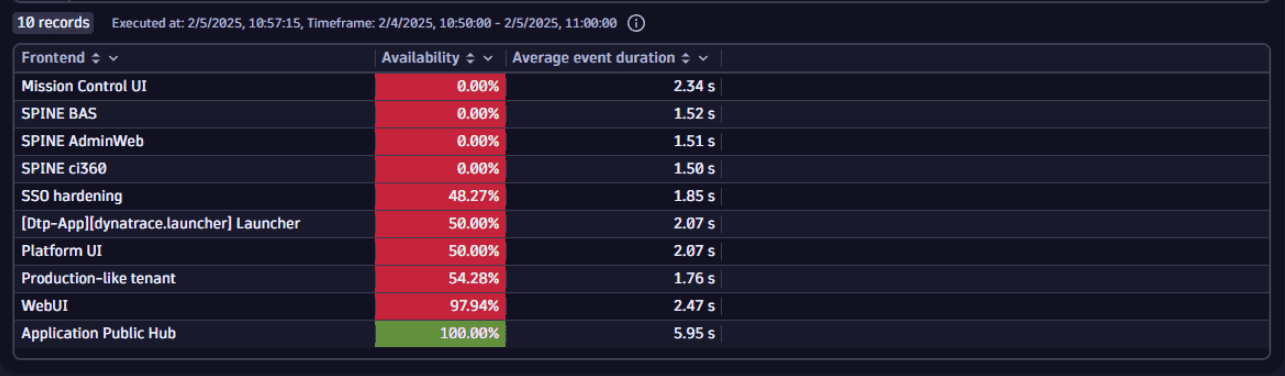

In the example visualized response, you can see the breakdown of availability and an average event duration time for 10 frontend applications, sorted by availability with the lowest on the top.
