Luna Network HSM Device extension
- Latest Dynatrace
- Extension
- Published Oct 27, 2025
Monitor your Luna Network Hardware Security Module (HSM) Devices through SNMP.
Get started
Overview
Monitor your Luna Network Hardware Security Module (HSM) Devices through SNMP.
This extension collects infrastructure metrics to monitor the health and performance of your Luna HSM devices.
Metrics are collected via SNMP protocol.
Use cases
- Monitor important device metrics such as uptime, busy time, performance and login attempts
- Monitor SafeNet Chrysalis metrics including number of events and operations, clients connected, and NTLS status
- Monitor partition storage info and object count
- Collect data for licenses, policies, partition policies, client registration, and client partitions
Compatibility information
- SNMP v2c or SNMP v3
- Dynatrace version 1.310+
- ActiveGate version 1.301+
Activation and setup
Simply activate the extension in your environment using the in-product Hub, provide the necessary device configuration and you’re all set up.
Read more in the SNMP extension data source documentation.
Details
The extension package contains:
- SNMP Data Source configuration

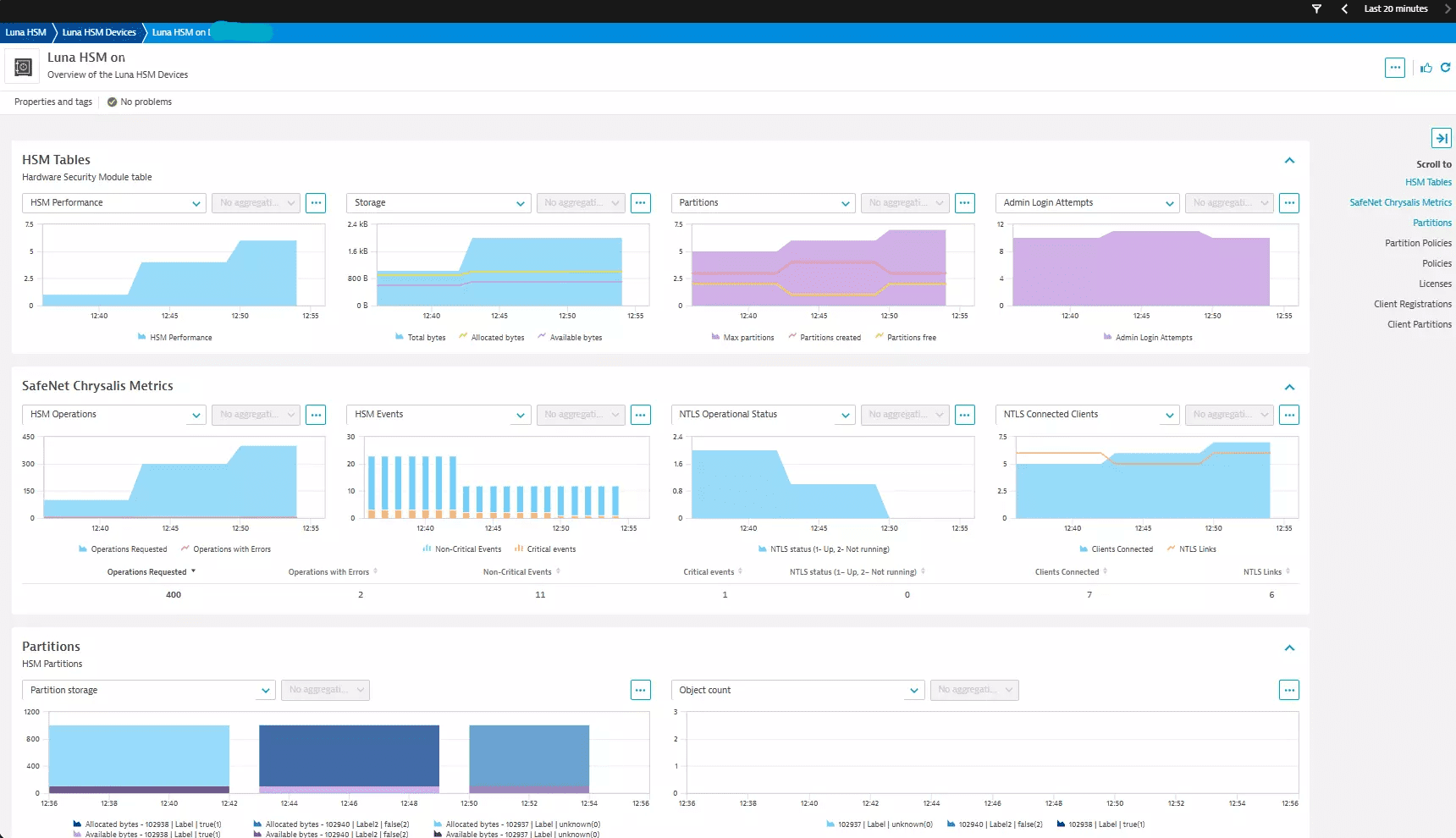

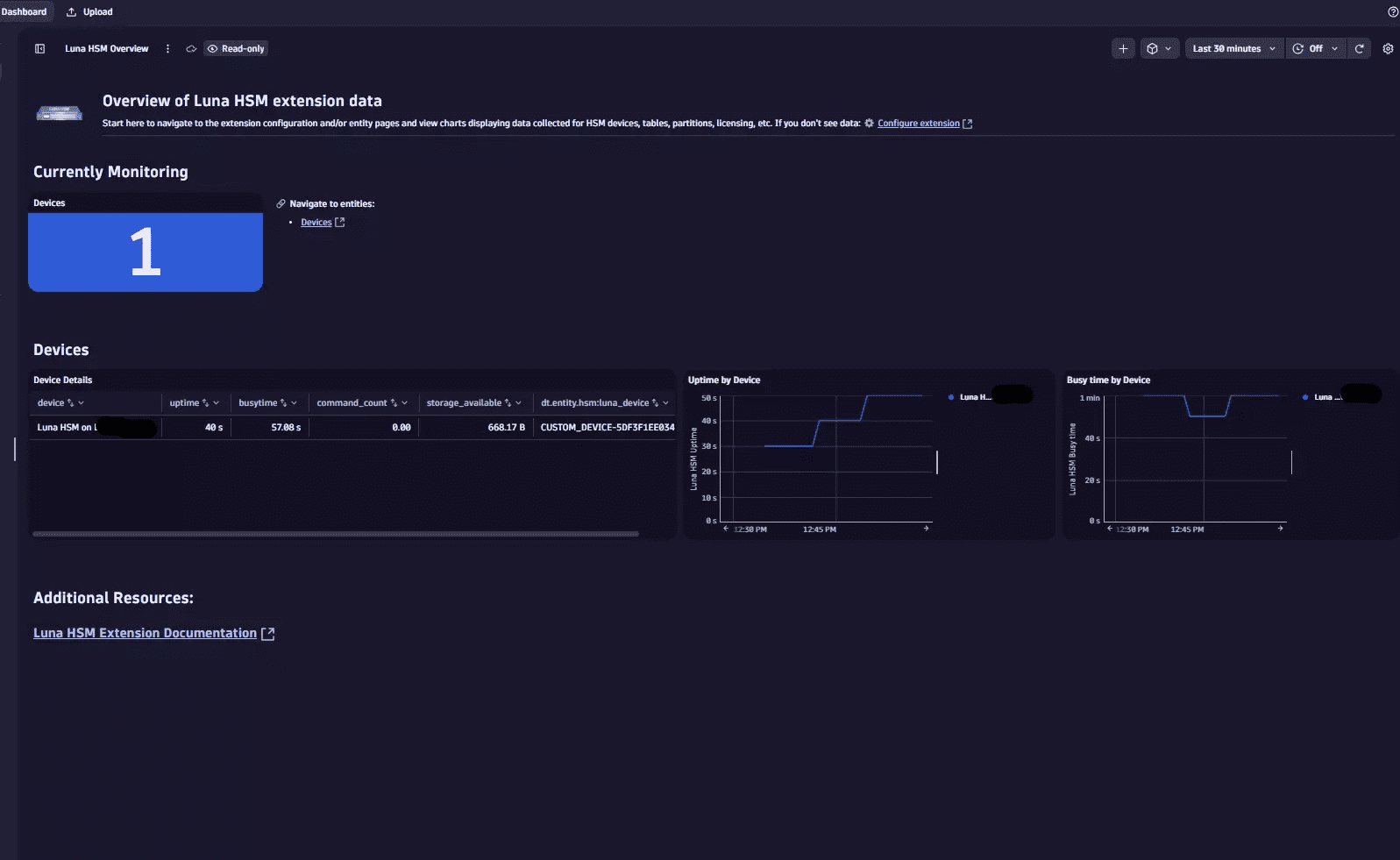

- Overview dashboard (Classic & Gen3)
- Custom topology types extracted from metric dimensions:
- Luna HSM Device
- SNMP MIB files used for monitoring:
- SAFENET-HSM-MIB
- SAFENET-GLOBAL-MIB
- SAFENET-APPLIANCE-MIB
- CHRYSALIS-UTSP-MIB
Licensing and cost
Calculations are based on the assumption that you monitor all metrics for every feature set every minute:
DDUs: 20 + (8 * Partitions) + (1 * Licenses) + (1 * Policies) + (1 * Partition policies) + (1 * Client registrations) + (1 * Client partitions) * 525.6 DDUs/year, per device
DPS (Metric data points): 20 + (8 * Partitions) + (1 * Licenses) + (1 * Policies) + (1 * Partition policies) + (1 * Client registrations) + (1 * Client partitions) * 525,600 metric data points/year, per device
Feature sets
When activating your extension using monitoring configuration, you can limit monitoring to one of the feature sets. To work properly the extension has to collect at least one metric after the activation.
In highly segmented networks, feature sets can reflect the segments of your environment. Then, when you create a monitoring configuration, you can select a feature set and a corresponding ActiveGate group that can connect to this particular segment.
All metrics that aren't categorized into any feature set are considered to be the default and are always reported.
A metric inherits the feature set of a subgroup, which in turn inherits the feature set of a group. Also, the feature set defined on the metric level overrides the feature set defined on the subgroup level, which in turn overrides the feature set defined on the group level.
partition-policy-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Partition Policy | hsm.luna.partition.policy | Placeholder metric for partition policy dimensions (only dimension data is relevant) |
safenet-chrysalis-utsp
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Operation requests | hsm.luna.operation.requests | Indicates the total number of HSM operations requested |
| Luna HSM Operation errors | hsm.luna.operation.errors | The total number of HSM operations requested which have resulted in errors |
| Luna HSM Critical events | hsm.luna.events.critical | The total number of critical HSM events detected |
| Luna HSM Non-critical events | hsm.luna.events.noncritical | The total number of non-critical HSM events detected |
| Luna HSM NTLS Status | hsm.luna.ntls.oper_status | The current operational state of the NTLS |
| Luna HSM NTLS connected clients | hsm.luna.ntls.connected_clients | The current number of connected clients of the NTLS |
| Luna HSM NTLS links | hsm.luna.ntls.links | The current number of links of the NTLS |
| Luna HSM NTLS successful client connections | hsm.luna.ntls.client_connections.successful | The total number of successful client connections of the NTLS |
| Luna HSM NTLS failed client connections | hsm.luna.ntls.client_connections.failed | The total number of unsuccessful client connections of the NTLS |
partition-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM partition storage capacity | hsm.luna.partition.storage.total_bytes | Storage capacity in bytes of the partition |
| Luna HSM partition allocated bytes | hsm.luna.partition.storage.allocated_bytes | Number of allocated (in use) bytes on the partition |
| Luna HSM partition available bytes | hsm.luna.partition.storage.available_bytes | Number of available (unused) bytes on the partition |
| Luna HSM partition object count | hsm.luna.partition.object_count | Number of objects in the partition |
client-registration-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Client Registration | hsm.luna.client | Placeholder metric for HSM Client Registration info dimensions (only dimension data is relevant) |
hsm-policy-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Policy | hsm.luna.policy | Placeholder metric for HSM policy info dimensions (only dimension data is relevant) |
license-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM License | hsm.luna.license | Placeholder metric for license info dimensions (only dimension data is relevant) |
hsm-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Uptime | hsm.luna.table.uptime | The number of seconds the HSM has been up since the last HSM reset |
| — | com.dynatrace.extension.network_device.sysuptime | — |
| Luna HSM Busy time | hsm.luna.table.busytime | The number of seconds the HSM has been busy since the last HSM reset |
| Luna HSM Command Count | hsm.luna.table.command_count | The number of HSM commands processed since the last HSM reset |
| Luna HSM Admin login attempts remaining | hsm.luna.table.admin_login_attempts | The number of failed Administrator login attempts remaining before HSM is zeroized. |
| Luna HSM Performance | hsm.luna.table.performance | The performance level of the HSM |
| Luna HSM Partitions free | hsm.luna.table.partitions.free | The number of partitions that can still be created on the HSM |
| Luna HSM Partitions created | hsm.luna.table.partitions.created | The number of partitions created on the HSM |
| Luna HSM Partitions maximum | hsm.luna.table.partitions.maximum | The maximum number of partitions allowed on the HSM |
| Luna HSM Storage available | hsm.luna.table.storage.available_bytes | The number of available bytes on the HSM |
| Luna HSM Storage allocated | hsm.luna.table.storage.allocated_bytes | The number of allocated bytes on the HSM |
| Luna HSM Storage capacity | hsm.luna.table.storage.total_bytes | The total storage capacity in bytes of the HSM |
client-partition-assignment-table
| Metric name | Metric key | Description |
|---|---|---|
| Luna HSM Client Assignment | hsm.luna.clientpartition.assignment | Placeholder metric for client assignment dimensions (only dimension data is relevant) |
