Monitor Oracle Exadata systems for performance, usage and availability

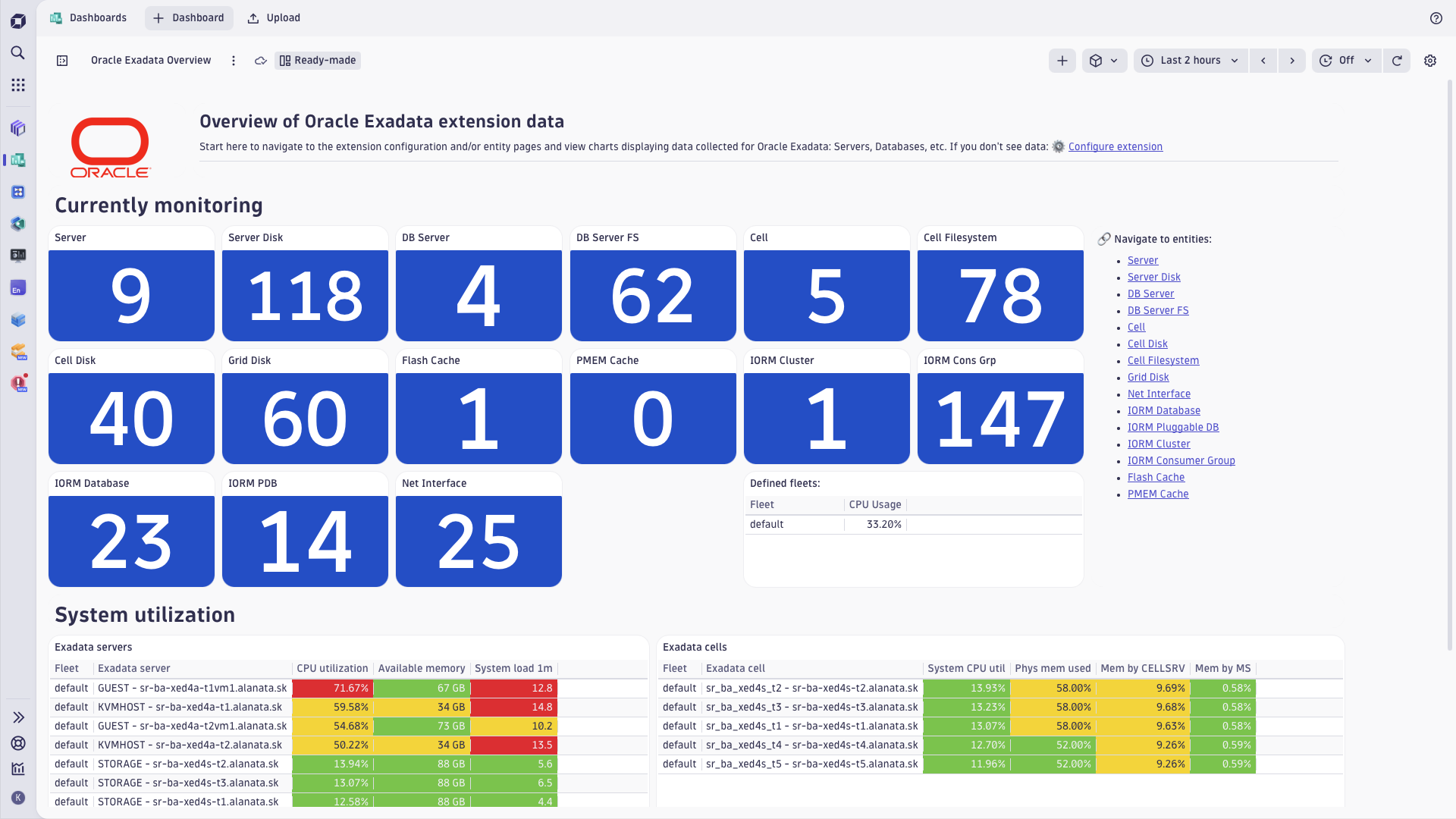

An example Exadata performance dashboard.

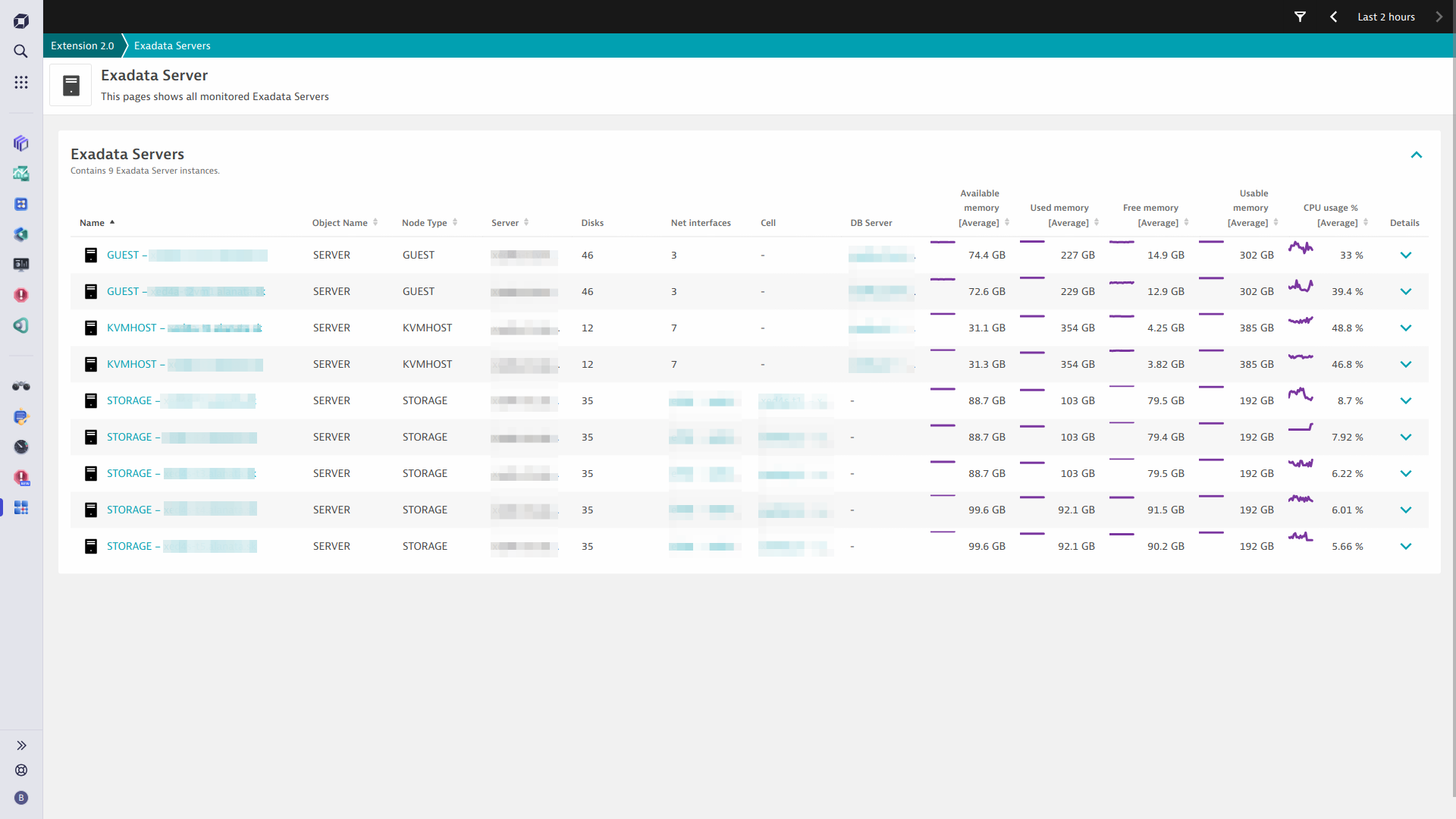

Exadata servers, with base characteristics.

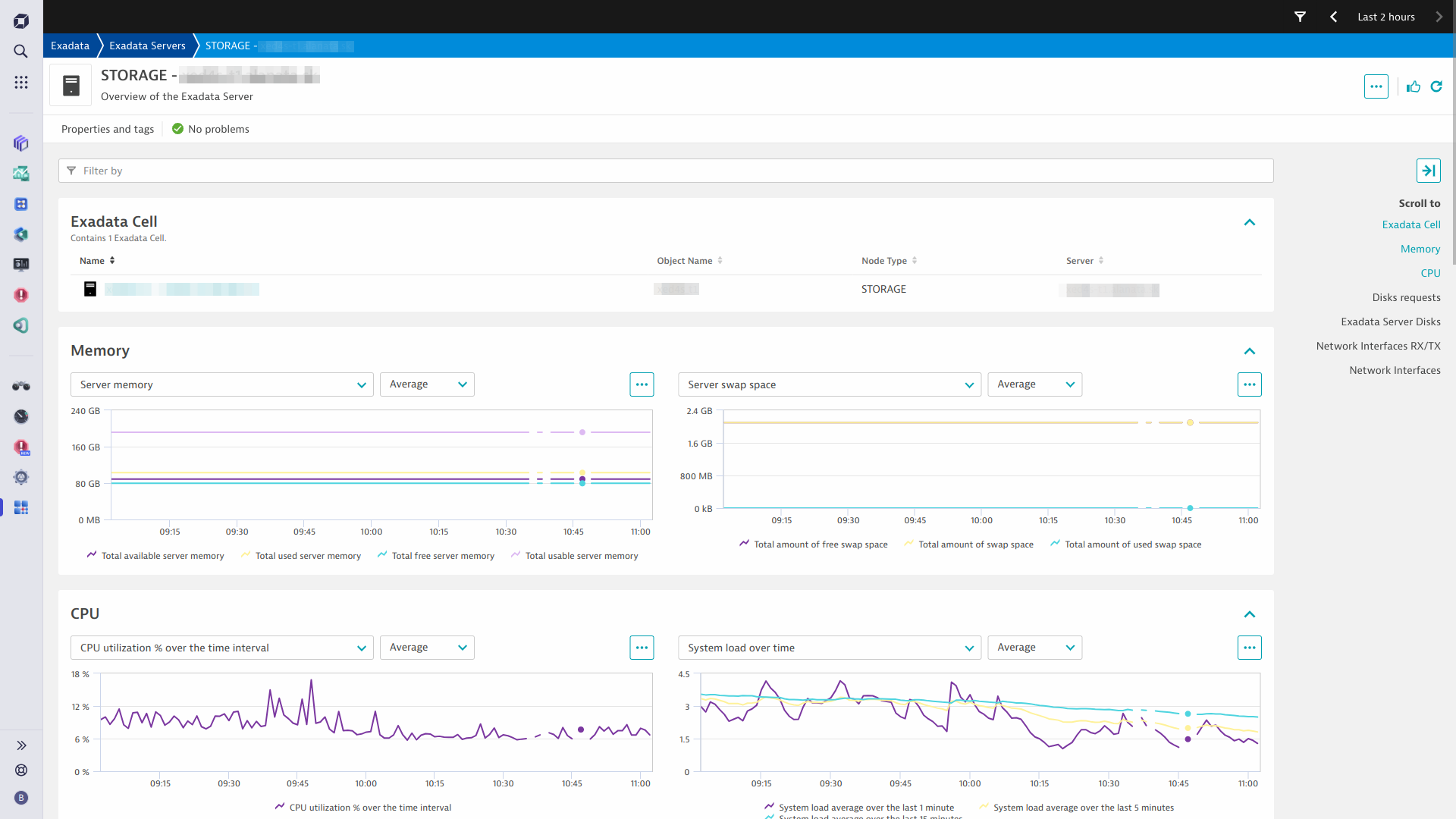

Server characteristics on the infrastructure level

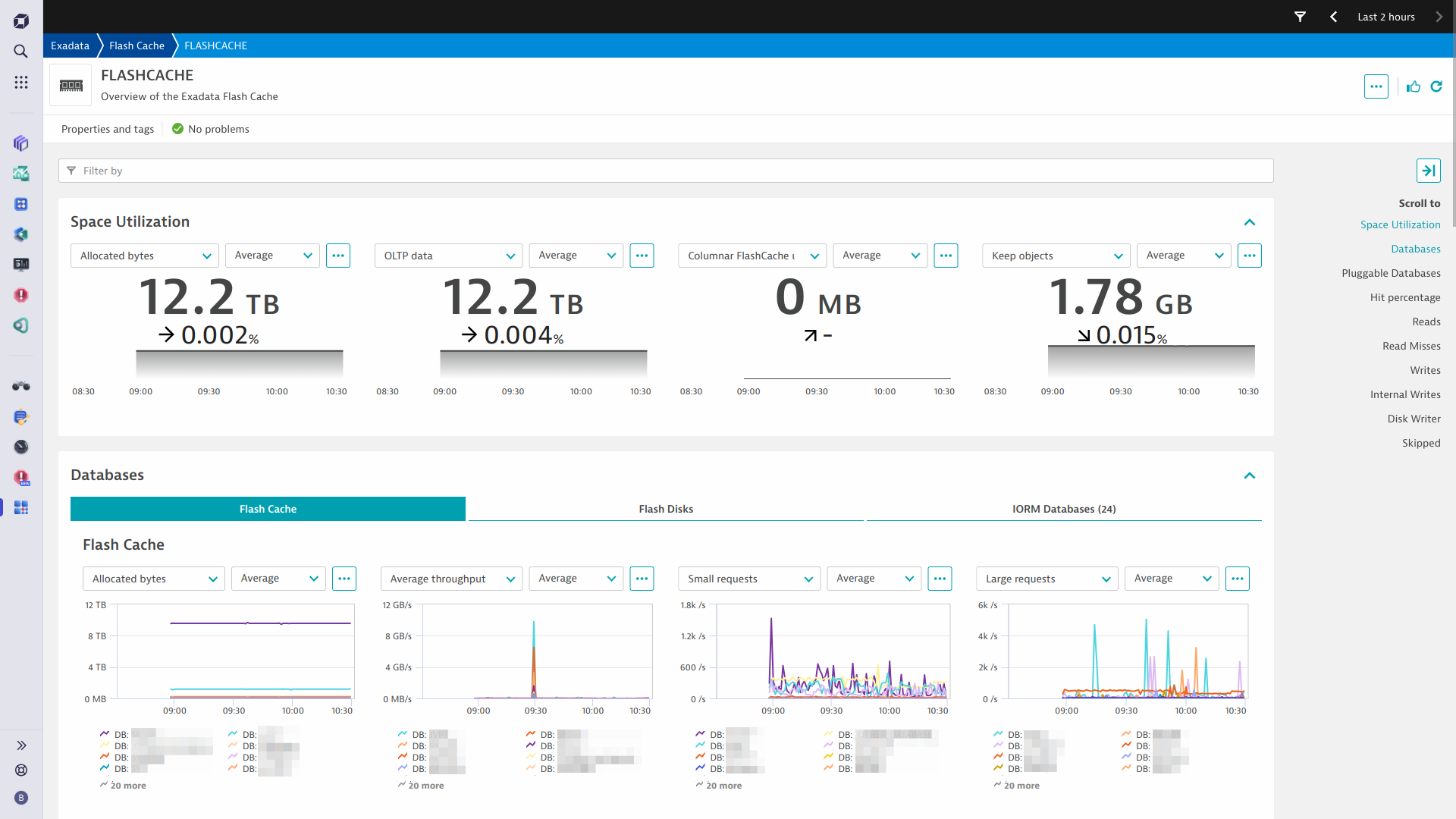

Exadata Flash performance - cache and disks

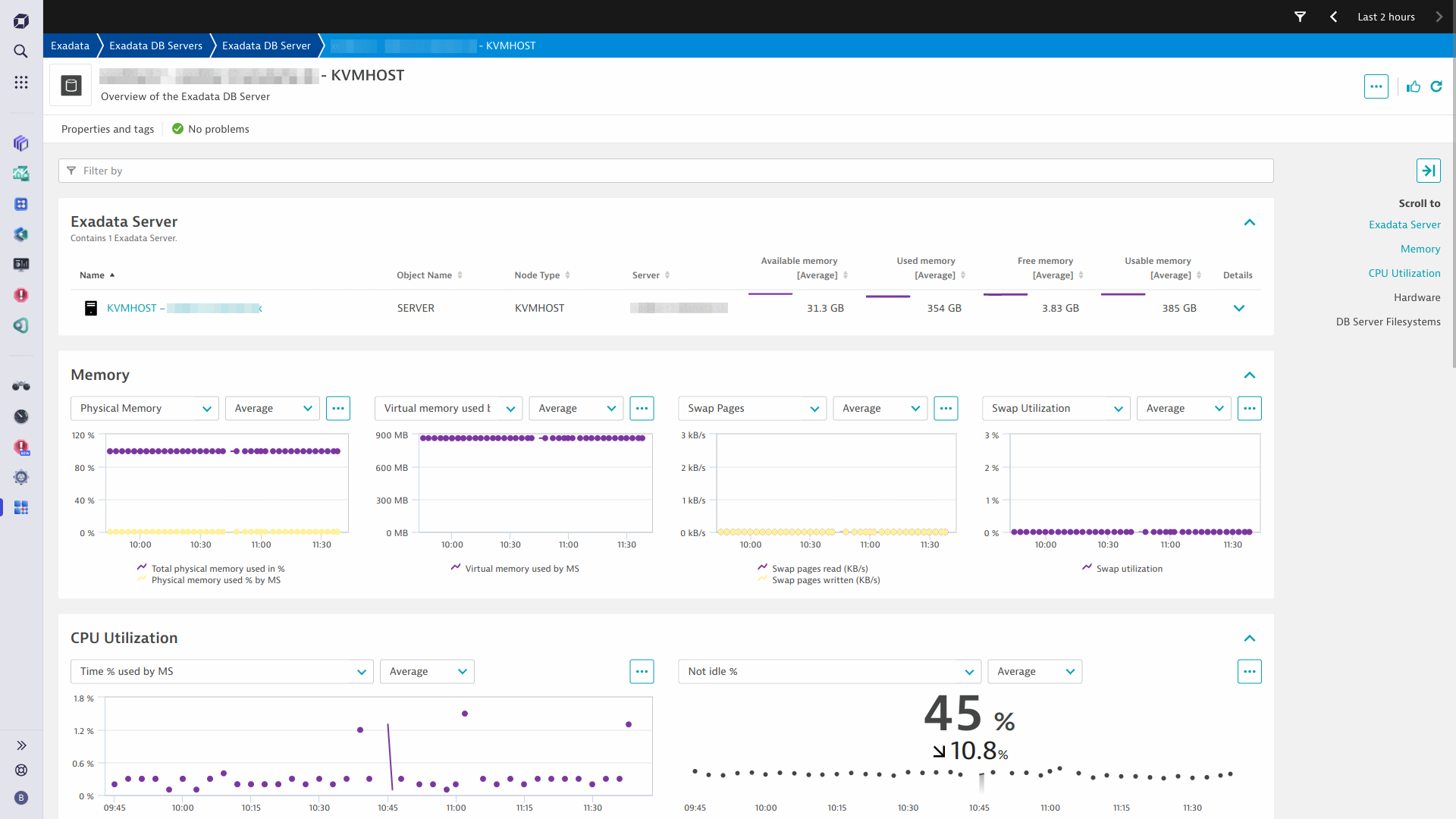

Exadata database server machine analysis

1 of 6An example Exadata performance dashboard.

Get started

Overview

Oracle Exadata extension connects to your Exadata devices and collects Exadata characteristics published by the Oracle Prometheus exporter. Metrics collected are continuously analyzed on Dynatrace platform, leveraging topological Exadata model that the extension maintains. Unified analysis screens offer insight into health and performance of the Exadata platform, including storage server and its components, such as flash cache, cell disks, and grid disks. Out of the box alerts notify on critical issues with the Exadata resources, including memory, CPU and I/O latency.

This extension is intended for users, who

Look to reliably monitor Exadata components and resource utilization with comprehensive dashboards and screens
Want to take pre-emptive measures to avoid service degradations rooting down to the Exadata resources oversubscription
Want to leverage rich observability signals provided out-of-the-box by the Exadata Prometheus exporters
Use Dynatrace for infrastructure monitoring and look to extend Dynatrace insights into the Exadata tier of their end-to-end infrastructure

Use cases

Integrated operational monitoring of the infrastructure, including Exadata
Early alerting on anomalies mounting in Exadata resource usage patterns
Root cause analysis of the Exadata bottlenecks, in the light of the entire application and infrastructure landscape observed by Dynatrace

Requirements

Follow the instructions for Using Real-Time Insight in the Oracle Exadata System Software User's Guide to configure metric stream for each type of server you want to monitor. Use the following script in DBMCLI on Database Servers (including VMs) and CELLCLI on Storage Servers to create a user with the appropriate privileges to consume the metrics. You need to perform this operation on every server you want to monitor.

CREATE ROLE realtime_collector
GRANT PRIVILEGE LIST ON METRICSTREAM ALL ATTRIBUTES WITH ALL OPTIONS TO ROLE realtime_collector
CREATE USER realtime_collector PASSWORD="password" ### Don't forget to change this password
GRANT ROLE realtime_collector to user realtime_collector

Compatibility information

Network access from a Dynatrace ActiveGate to the Exadata endpoints specified in the Get started section
Oracle Exadata System Software 22.1.0+
- This Extension uses API introduced in Exadata System Software 22.1.0
- Your Exadata Database Machine and Exadata Storage Server would carry the same version number as the Exadata System Software indicates
Note that this extension does not support ExaCC

Activation and setup

Activate the extension in your Dynatrace environment web UI using the in-product Hub and choose Monitor remotely.
Provide the required Prometheus exporter endpoint configuration:
Endpoint for storage servers: https://server-name/metricstream/list?stream=true
Endpoint for database servers using port 7879: https://server-name:7879/metricstream/list?stream=true
Use Basic authentication with the user realtime_collector and the password set in DBMCLI and CELLCLI.
For one Exadata system, create one extension configuration and configure Exadata endpoints for individual servers and cells within it. If you have multiple Exadata systems, create a configuration for each Exadata system and differentiate the Exadata system via the "Fleet" field.

Details

The extension package contains

Python scripts that connect to the Exadata endpoints and scrape the metrics
Topology and relationship definitions for Exadata entities
A dashboard offering high-level Exadata platform overview
Unified Analysis pages for each Exadata entity

Summary of the entities monitored

The Oracle Exadata extension collects metrics for:

Exadata Server
Exadata DB Server Filesystem
Exadata Cell Filesystem
Exadata Net Interface
Exadata PMEM Cache
Exadata Disk
Exadata Grid Disk
Exadata Cell Disk
Exadata Cell
Exadata DB Server
Exadata IORM Database
Exadata IORM Pluggable Database
Exadata IORM pluggable database on cell
Exadata IORM Consumer Group
Exadata IORM Cluster
Exadata Flash Cache
Exadata Flash Cache on cell
Exadata Flash Cache on DB
Exadata Flash Cache on PDB

Licensing and cost

There is no charge for obtaining the extension, only for the data that the extension ingests. The details of license consumption will depend on which licensing model you are using. This will either be Dynatrace classic licensing or the Dynatrace Platform Subscription (DPS) model.

Metrics

License consumption is based on the number of metric data points ingested. The following formula will provide approximate annual data points ingested assuming all feature sets are enabled.

(
    ( 19 * the number of servers )
  + ( 10 * the number of servers * the number of disks on the server )
  + ( 6  * the number of servers * the number of network interfaces on the server )
  + ( 12 * the number of database servers )
  + ( 1  * the number of database servers * the number of file systems on the DB server )
  + ( 1  * the number of cell servers * the number of file systems on the cell server )
  + ( 25 * the number of cell servers * the number of disks on the cell server )
  + ( 99 * the number of cell servers )
  + ( 16 * the number of cell servers * the number of databases on the cell server )
  + ( 16 * the number of cell servers * the number of pluggable databases on the cell server )
  + ( 5 * the number of cell servers * the number of DB/PDB * the number of consumer groups on the DB/PDB )
  + ( 2 * the number of category plans * the number of cell servers )
  + ( 2 * the number of IP addresses in queue )
  + ( 7 * the number of servers * (4 * the number of ROCE interfaces on the server) )
  + ( 6 * the number of cell servers * (2 * the number of cell disks on the cell server) )
) * 60 minutes * 24 hours * 365 days data points per year

Classic licensing

In the classic licensing model, metric ingestion will consume Davis Data Units (DDUs) at the rate of .001 DDUs per metric data point. Multiply the above formula for annual data points by .001 to estimate annual DDU usage.

Feature sets

When activating your extension using monitoring configuration, you can limit monitoring to one of the feature sets. To work properly the extension has to collect at least one metric after the activation.

In highly segmented networks, feature sets can reflect the segments of your environment. Then, when you create a monitoring configuration, you can select a feature set and a corresponding ActiveGate group that can connect to this particular segment.

All metrics that aren't categorized into any feature set are considered to be the default and are always reported.

A metric inherits the feature set of a subgroup, which in turn inherits the feature set of a group. Also, the feature set defined on the metric level overrides the feature set defined on the subgroup level, which in turn overrides the feature set defined on the group level.

Metric name	Metric key	Description
PMEM DB cache MB allocated	oracle.exadata.DB_PC_BY_ALLOCATED	Number of megabytes allocated in PMEM cache for this database
PMEM cache MB allocated total	oracle.exadata.PC_BY_ALLOCATED	Number of megabytes allocated in PMEM cache
PMEM PDB cache MB allocated	oracle.exadata.PDB_PC_BY_ALLOCATED	Number of megabytes allocated in PMEM cache for this pluggable database

Metric name	Metric key	Description
FlashCache IO MBps	oracle.exadata.CG_FC_IO_BY_SEC	Number of megabytes of I/O per second for this consumer group to flash cache
FC large request IOPS	oracle.exadata.CG_FC_IO_RQ_LG_SEC	Number of large IO requests issued by a consumer group to flash cache per second
FlashCache IOPS	oracle.exadata.CG_FC_IO_RQ_SEC	Number of IO requests issued by a consumer group to flash cache per second
FC small request IOPS	oracle.exadata.CG_FC_IO_RQ_SM_SEC	Number of small IO requests issued by a consumer group to flash cache per second
FlashDisks IO Mbps	oracle.exadata.CG_FD_IO_BY_SEC	Number of megabytes of I/O per second for this consumer group to flash disks
FlashDisks IO load (avg)	oracle.exadata.CG_FD_IO_LOAD	Average I/O load from this consumer group for flash disks
FD large request IOPS	oracle.exadata.CG_FD_IO_RQ_LG_SEC	Number of large IO requests issued by a consumer group to flash disks per second
FD small request IOPS	oracle.exadata.CG_FD_IO_RQ_SM_SEC	Number of small IO requests issued by a consumer group to flash disks per second
FD RW latency (cumulative)	oracle.exadata.CG_FD_IO_TM	The cumulative latency of reading or writing blocks by a consumer group from flash disks
FD large RW latency (cumulative)	oracle.exadata.CG_FD_IO_TM_LG	The cumulative latency of reading or writing large blocks by a consumer group from flash disks
FD large RW latency rate (us/req)	oracle.exadata.CG_FD_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by a consumer group from flash disks
FD RW latency rate (us/req)	oracle.exadata.CG_FD_IO_TM_RQ	The rate which is the average latency of reading or writing blocks per request by a consumer group from flash disks
FD small RW latency (cumulative)	oracle.exadata.CG_FD_IO_TM_SM	The cumulative latency of reading or writing small blocks by a consumer group from flash disks
FD small RW latency rate (us/req)	oracle.exadata.CG_FD_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by a consumer group from flash disks
IORM wait for large requests	oracle.exadata.CG_FD_IO_WT_LG	IORM wait time for large IO requests issued to flashdisks by a consumer group
IORM wait /req for large requests (avg)	oracle.exadata.CG_FD_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to flash disks by a consumer group
IORM wait for small requests	oracle.exadata.CG_FD_IO_WT_SM	IORM wait time for small IO requests issued to flashdisks by a consumer group
IORM wait /req for small requests (avg)	oracle.exadata.CG_FD_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to flash disks by a consumer group
Hard disks IO MBps	oracle.exadata.CG_IO_BY_SEC	Number of megabytes of I/O per second for this consumer group to hard disks
Hard disks IO load (avg)	oracle.exadata.CG_IO_LOAD	Average I/O load from this consumer group for hard disks
HDD large request IOPS	oracle.exadata.CG_IO_RQ_LG_SEC	Number of large IO requests issued by a consumer group to hard disks per second
HDD small request IOPS	oracle.exadata.CG_IO_RQ_SM_SEC	Number of small IO requests issued by a consumer group to hard disks per second
HDD large RW latency (cumulative)	oracle.exadata.CG_IO_TM_LG	The cumulative latency of reading or writing large blocks by a consumer group from hard disks
HDD large RW latency rate (us/req)	oracle.exadata.CG_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by a consumer group from hard disks
HDD small RW latency (cumulative)	oracle.exadata.CG_IO_TM_SM	The cumulative latency of reading or writing small blocks by a consumer group from hard disks
HDD small RW latency rate (us/req)	oracle.exadata.CG_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by a consumer group from hard disks
IORM wait for large requests	oracle.exadata.CG_IO_WT_LG	IORM wait time for large IO requests issued to hard disks by a consumer group
IORM wait /req for large requests (avg)	oracle.exadata.CG_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to hard disks by a consumer group
IORM wait for small requests	oracle.exadata.CG_IO_WT_SM	IORM wait time for small IO requests issued to hard disks by a consumer group
IORM wait /req for small requests (avg)	oracle.exadata.CG_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to hard disks by a consumer group

Metric name	Metric key	Description
FlashCache MB allocated	oracle.exadata.DB_FC_BY_ALLOCATED	Number of megabytes allocated in flash cache for this database
FlashCache IO MBps	oracle.exadata.DB_FC_IO_BY_SEC	Number of megabytes of I/O per second for this database to flash cache
FC large request IOPS	oracle.exadata.DB_FC_IO_RQ_LG_SEC	Number of large IO requests issued by a database to flash cache per second
FC small request IOPS	oracle.exadata.DB_FC_IO_RQ_SM_SEC	Number of small IO requests issued by a database to flash cache per second
FD large request IOPS	oracle.exadata.DB_FD_IO_RQ_LG_SEC	Number of large IO requests issued by a database to flash disks per second
FD small request IOPS	oracle.exadata.DB_FD_IO_RQ_SM_SEC	Number of small IO requests issued by a database to flash disks per second
FD large RW latency rate (us/req)	oracle.exadata.DB_FD_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by a database from flash disks
FD small RW latency rate (us/req)	oracle.exadata.DB_FD_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by a database from flash disks
IORM wait /req for large requests (avg)	oracle.exadata.DB_FD_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to flash disks by a database
IORM wait /req for small requests (avg)	oracle.exadata.DB_FD_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to flash disks by a database
HDD large request IOPS	oracle.exadata.DB_IO_RQ_LG_SEC	Number of large IO requests issued by a database to hard disks per second
HDD small request IOPS	oracle.exadata.DB_IO_RQ_SM_SEC	Number of small IO requests issued by a database to hard disks per second
HDD large RW latency rate (us/req)	oracle.exadata.DB_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by a database from hard disks
HDD small RW latency rate (us/req)	oracle.exadata.DB_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by a database from hard disks
IORM wait /req for large requests (avg)	oracle.exadata.DB_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to hard disks by a database
IORM wait /req for small requests (avg)	oracle.exadata.DB_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to hard disks by a database

Metric name	Metric key	Description
FC large request IOPS	oracle.exadata.CT_FC_IO_RQ_LG_SEC	Number of large IO requests issued by an IORM category to flash cache per second
FlashCache IOPS	oracle.exadata.CT_FC_IO_RQ_SEC	Number of IO requests issued by an IORM category to flash cache per second
FC small request IOPS	oracle.exadata.CT_FC_IO_RQ_SM_SEC	Number of small IO requests issued by an IORM category to flash cache per second
FlashDisks IO load (avg)	oracle.exadata.CT_FD_IO_LOAD	Average I/O load from this category for flash disks
FD large request IOPS	oracle.exadata.CT_FD_IO_RQ_LG_SEC	Number of large IO requests issued by an IORM category to flash disks per second
FD small request IOPS	oracle.exadata.CT_FD_IO_RQ_SM_SEC	Number of small IO requests issued by an IORM category to flash disks per second
FD RW latency (cumulative)	oracle.exadata.CT_FD_IO_TM	The cumulative latency of reading or writing blocks for this category from flash disks
FD large RW latency (cumulative)	oracle.exadata.CT_FD_IO_TM_LG	The cumulative latency of reading or writing large blocks for this category from flash disks
FD large RW latency rate (us/req)	oracle.exadata.CT_FD_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request for this category from flash disks
FD RW latency rate (us/req)	oracle.exadata.CT_FD_IO_TM_RQ	The rate which is the average latency of reading or writing blocks per request for this category from flash disks
FD small RW latency (cumulative)	oracle.exadata.CT_FD_IO_TM_SM	The cumulative latency of reading or writing small blocks for this category from flash disks
FD small RW latency rate (us/req)	oracle.exadata.CT_FD_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request for this category from flash disks
Flash utilization	oracle.exadata.CT_FD_IO_UTIL	Percentage of flash resources utilized by this category
Flash utilization by large requests	oracle.exadata.CT_FD_IO_UTIL_LG	Percentage of flash resources utilized by large requests from this category
Flash utilization by small requests	oracle.exadata.CT_FD_IO_UTIL_SM	Percentage of flash resources utilized by small requests from this category
IORM wait for large requests	oracle.exadata.CT_FD_IO_WT_LG	IORM wait time for large IO requests issued to flash disks by an IORM category
IORM wait /req for large requests (avg)	oracle.exadata.CT_FD_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to flash disks by an IORM category
IORM wait for small requests	oracle.exadata.CT_FD_IO_WT_SM	IORM wait time for small IO requests issued to flash disks by an IORM category
IORM wait /req for small requests (avg)	oracle.exadata.CT_FD_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to flash disks by an IORM category
Hard disks IO MBps	oracle.exadata.CT_IO_BY_SEC	Number of megabytes of I/O per second for this category to hard disks
Hard disks IO load (avg)	oracle.exadata.CT_IO_LOAD	Average I/O load from this category for hard disks
HDD large request IOPS	oracle.exadata.CT_IO_RQ_LG_SEC	Number of large IO requests issued by an IORM category to hard disks per second
HDD small request IOPS	oracle.exadata.CT_IO_RQ_SM_SEC	Number of small IO requests issued by an IORM category to hard disks per second
HDD large RW latency (cumulative)	oracle.exadata.CT_IO_TM_LG	The cumulative latency of reading or writing large blocks for this category from hard disks
HDD large RW latency rate (us/req)	oracle.exadata.CT_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request for this category from hard disks
HDD small RW latency (cumulative)	oracle.exadata.CT_IO_TM_SM	The cumulative latency of reading or writing small blocks for this category from hard disks
HDD small RW latency rate (us/req)	oracle.exadata.CT_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request for this category from hard disks
Disk utilization by large requests	oracle.exadata.CT_IO_UTIL_LG	Percentage of disk resources utilized by large requests from this category
Disk utilization by small requests	oracle.exadata.CT_IO_UTIL_SM	Percentage of disk resources utilized by small requests from this category
IORM wait for large requests	oracle.exadata.CT_IO_WT_LG	IORM wait time for large IO requests issued to hard disks by an IORM category
IORM wait /req for large requests (avg)	oracle.exadata.CT_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to hard disks by an IORM category
IORM wait for small requests	oracle.exadata.CT_IO_WT_SM	IORM wait time for small IO requests issued to hard disks by an IORM category
IORM wait /req for small requests (avg)	oracle.exadata.CT_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to hard disks by an IORM category

Metric name	Metric key	Description
Redo data saved on flash due to disk I/O errors	oracle.exadata.FL_BY_KEEP	The amount of redo data saved on flash due to disk I/O errors
Flash Logging efficiency	oracle.exadata.FL_EFFICIENCY_PERCENTAGE	The efficiency of Smart Flash Logging expressed as a percentage
Flash Logging efficiency past hour	oracle.exadata.FL_EFFICIENCY_PERCENTAGE_HOUR	The efficiency of Smart Flash Logging over the last hour expressed as a percentage

Metric name	Metric key	Description
FlashCache IOPS	oracle.exadata.DB_FC_IO_RQ_SEC	Number of IO requests issued by a database to flash cache per second
FlashDisks IO Mbps	oracle.exadata.DB_FD_IO_BY_SEC	Number of megabytes of I/O per second for this database to flash disks
FlashDisks IO load (avg)	oracle.exadata.DB_FD_IO_LOAD	Average I/O load from this database for flash disks
FD RW latency (cumulative)	oracle.exadata.DB_FD_IO_TM	The cumulative latency of reading or writing blocks by a database from flash disks
FD large RW latency (cumulative)	oracle.exadata.DB_FD_IO_TM_LG	The cumulative latency of reading or writing large blocks by a database from flash disks
FD RW latency rate (us/req)	oracle.exadata.DB_FD_IO_TM_RQ	The rate which is the average latency of reading or writing blocks per request by a database from flash disks
FD small RW latency (cumulative)	oracle.exadata.DB_FD_IO_TM_SM	The cumulative latency of reading or writing small blocks by a database from flash disks
Flash utilization	oracle.exadata.DB_FD_IO_UTIL	Percentage of flash resources utilized by this database
Flash utilization by large requests	oracle.exadata.DB_FD_IO_UTIL_LG	Percentage of flash resources utilized by large requests from this database
Flash utilization by small requests	oracle.exadata.DB_FD_IO_UTIL_SM	Percentage of flash resources utilized by small requests from this database
IORM wait for large requests	oracle.exadata.DB_FD_IO_WT_LG	IORM wait time for large IO requests issued to flash disks by a database
IORM wait for small requests	oracle.exadata.DB_FD_IO_WT_SM	IORM wait time for small IO requests issued to flash disks by a database
Flash Log MB written	oracle.exadata.DB_FL_IO_BY	The number of MB written to the Flash Log
Flash Log write rate MBps	oracle.exadata.DB_FL_IO_BY_SEC	The number of MB written per second to the Flash Log
Flash Log request IOPS	oracle.exadata.DB_FL_IO_RQ_SEC	The number of I/O requests per second issued to the Flash Log
Hard disks IO MBps	oracle.exadata.DB_IO_BY_SEC	Number of megabytes of I/O per second for this database to hard disks
Hard disks IO load (avg)	oracle.exadata.DB_IO_LOAD	Average I/O load from this database for hard disks
HDD large RW latency (cumulative)	oracle.exadata.DB_IO_TM_LG	The cumulative latency of reading or writing large blocks by a database from hard disks
HDD small RW latency (cumulative)	oracle.exadata.DB_IO_TM_SM	The cumulative latency of reading or writing small blocks by a database from hard disks
Disk utilization by large requests	oracle.exadata.DB_IO_UTIL_LG	Percentage of disk resources utilized by large requests from this database
Disk utilization by small requests	oracle.exadata.DB_IO_UTIL_SM	Percentage of disk resources utilized by small requests from this database
IORM wait for large requests	oracle.exadata.DB_IO_WT_LG	IORM wait time for large IO requests issued to hard disks by a database
IORM wait for small requests	oracle.exadata.DB_IO_WT_SM	IORM wait time for small IO requests issued to hard disks by a database
XRMEM DB cache MB allocated	oracle.exadata.DB_XRM_BY_ALLOCATED	Number of megabytes allocated in XRMEM cache for this database

Metric name	Metric key	Description
Eligible MB for smart IO offload	oracle.exadata.SIO_IO_EL_OF	Cumulative number of megabytes eligible for smart IO offload
Eligible MBps for smart IO offload	oracle.exadata.SIO_IO_EL_OF_SEC	Number of megabytes per second eligible for smart IO offload
Interconnect returned MB	oracle.exadata.SIO_IO_OF_RE	Cumulative number of interconnect megabytes returned by smart IO
Interconnect returned MBps	oracle.exadata.SIO_IO_OF_RE_SEC	Number of interconnect megabytes per second returned by smart IO
Passthru IO MB	oracle.exadata.SIO_IO_PA_TH	Cumulative number of megabytes of passthru IOs by smart IO
Passthru IO MBps	oracle.exadata.SIO_IO_PA_TH_SEC	Number of megabytes per second of passthru IOs by smart IO
SIO reads MB from FlashCache	oracle.exadata.SIO_IO_RD_FC	Cumulative number of megabytes read from flash cache by smart IO
SIO reads MB total	oracle.exadata.SIO_IO_RD_FC_HD	Cumulative number of megabytes read from both flash cache and hard disk by smart IO
SIO reads MBps total	oracle.exadata.SIO_IO_RD_FC_HD_SEC	Number of megabytes per second read from both flash cache and hard disk by smart IO
SIO reads MBps from FlashCache	oracle.exadata.SIO_IO_RD_FC_SEC	Number of megabytes per second read from flash cache by smart IO
SIO reads MB from HDD	oracle.exadata.SIO_IO_RD_HD	Cumulative number of megabytes read from hard disk by smart IO
SIO reads MBps from HDD	oracle.exadata.SIO_IO_RD_HD_SEC	Number of megabytes per second read from hard disk by smart IO
SIO read IOPS total	oracle.exadata.SIO_IO_RD_RQ_FC_HD_SEC	Number of read IO requests per second from both flash cache and hard disk by smart IO
SIO FC read IOPS	oracle.exadata.SIO_IO_RD_RQ_FC_SEC	Number of read IO requests per second from flash cache by smart IO
SIO HDD read IOPS	oracle.exadata.SIO_IO_RD_RQ_HD_SEC	Number of read IO requests per second from hard disk by smart IO
DB node MB sent to balance CPU	oracle.exadata.SIO_IO_RV_OF	Cumulative number of megabytes sent to DB node to balance CPU by smart IO
DB node MBps sent to balance CPU	oracle.exadata.SIO_IO_RV_OF_SEC	Number of megabytes per second sent to DB node to balance CPU by smart IO
Storage index save MB	oracle.exadata.SIO_IO_SI_SV	Cumulative number of megabytes saved by storage index
Storage index save MBps	oracle.exadata.SIO_IO_SI_SV_SEC	Number of megabytes per second saved by storage index
SIO FC population writes MB	oracle.exadata.SIO_IO_WR_FC	Cumulative number of megabytes of flash cache population writes by smart IO
SIO FC population writes MBps	oracle.exadata.SIO_IO_WR_FC_SEC	Number of megabytes per second of flash cache population writes by smart IO
SIO to HDD written MB	oracle.exadata.SIO_IO_WR_HD	Cumulative number of megabytes written to hard disk by smart IO
SIO to HDD write MBps	oracle.exadata.SIO_IO_WR_HD_SEC	Number of megabytes per second written to hard disk by smart IO
SIO FC population write IOPS	oracle.exadata.SIO_IO_WR_RQ_FC_SEC	Number of IO requests per second for flash cache population writes by smart IO
SIO to HDD write IOPS	oracle.exadata.SIO_IO_WR_RQ_HD_SEC	Number of write IO requests per second to hard disk by smart IO
Background SIO CPU time used (cumulative)	oracle.exadata.SIO_BG_CPU	Cumulative CPU time used by background smart IO
Foreground SIO CPU time used (cumulative)	oracle.exadata.SIO_FG_CPU	Cumulative CPU time used by foreground smart IO
BG PDB SIO CPU time used (cumulative)	oracle.exadata.SIO_PDB_BG_CPU	Cumulative CPU time used by background smart IO for this pluggable database
BG PDB SIO CPU time used (us/sec)	oracle.exadata.SIO_PDB_BG_CPU_SEC	CPU time used by background smart IO per second for this pluggable database
FG PDB SIO CPU time used (cumulstive)	oracle.exadata.SIO_PDB_FG_CPU	Cumulative CPU time used by foreground smart IO for this pluggable database
FG PDB SIO CPU time used (us/sec)	oracle.exadata.SIO_PDB_FG_CPU_SEC	CPU time used by foreground smart IO per second for this pluggable database

Metric name	Metric key	Description
File system space utilization	oracle.exadata.CL_FSUT	Percentage of total space on this file system that is currently used

Metric name	Metric key	Description
Disk Controller Battery Temperature	oracle.exadata.DS_BBU_TEMP	Disk Controller Battery Temperature
Disk Controller Battery Charge	oracle.exadata.DS_BBU_CHARGE	Disk Controller Battery Charge
CPU not idle %	oracle.exadata.DS_CPUT	Percentage of time over the previous minute that the system CPUs were not idle.
CPU usage by MS %	oracle.exadata.DS_CPUT_MS	Percentage of CPU time used by MS
Fans working on the server	oracle.exadata.DS_FANS	Number of working fans on the server
Physical memory utilization	oracle.exadata.DS_MEMUT	Percentage of total physical memory on this server that is currently used
Physical memory utilization by MS	oracle.exadata.DS_MEMUT_MS	Percentage of physical memory used by MS
Swap read speed kBps	oracle.exadata.DS_SWAP_IN_BY_SEC	Amount of swap pages read in KB per second
Swap write speed kBps	oracle.exadata.DS_SWAP_OUT_BY_SEC	Amount of swap pages written in KB per second
Swap used %	oracle.exadata.DS_SWAP_USAGE	Percentage of swap used
Temperature (Celsius) of the server	oracle.exadata.DS_TEMP	Temperature (Celsius) of the server, provided by the BMC
Virtual memory used by MS	oracle.exadata.DS_VIRTMEM_MS	Amount of virtual memory used by MS in MB

Metric name	Metric key	Description
Flash Logging MB written to hard disk	oracle.exadata.FL_IO_DB_BY_W	The number of MB written to hard disk by Smart Flash Logging
Flash Logging write to hard disk MBps	oracle.exadata.FL_IO_DB_BY_W_SEC	The rate which is the number of MB per second written to hard disk by Smart Flash Logging
Flash Logging MB written to flash	oracle.exadata.FL_IO_FL_BY_W	The number of MB written to flash by Smart Flash Logging
Flash Logging write to flash MBps	oracle.exadata.FL_IO_FL_BY_W_SEC	The rate which is the number of MB per second written to flash by Smart Flash Logging
Redo log writes cumulative latency	oracle.exadata.FL_IO_TM_W	Cumulative latency of all redo log writes
Redo log writes average latency	oracle.exadata.FL_IO_TM_W_RQ	Average latency of all redo log writes
Redo writes skipped per minute due to not enough data on disk	oracle.exadata.FL_IO_W_SKIP_BUSY_MIN	The number of redo writes during the last minute that could not be serviced by Smart Flash Logging because too much data had not yet been written to disk
Redo log writes e2e cumulative latency	oracle.exadata.FL_RQ_TM_W	Cumulative latency of all redo log write requests (includes network and other processing overhead)
Redo log writes e2e average latency	oracle.exadata.FL_RQ_TM_W_RQ	Average latency of all redo log write requests

Metric name	Metric key	Description
Interface RX MBps	oracle.exadata.OS_NET_RX_BY_SEC	Number of bytes received by the network interface
Interface CRC error rate (pps)	oracle.exadata.OS_NET_RX_CRC_ERROR_SEC	Number of packets with a CRC error received on the network interface
Interface RX drop rate (pps)	oracle.exadata.OS_NET_RX_DRP_SEC	Number of packets dropped by the network interface
Interface framing error rate (pps)	oracle.exadata.OS_NET_RX_FRAME_ERROR_SEC	Number of receiver-side frame alignment errors on the network interface
Interface TX MBps	oracle.exadata.OS_NET_TX_BY_SEC	Number of bytes transmitted by the network interface
Interface TX drop rate (pps)	oracle.exadata.OS_NET_TX_DRP_SEC	Number of packets dropped by the network interface

Metric name	Metric key	Description
Columnar FlashCache used	oracle.exadata.FC_COL_BY_USED	Number of megabytes used in Columnar FlashCache
Eligible MBps to read from Columnar FC	oracle.exadata.FC_COL_IO_BY_R_ELIGIBLE_SEC	Number of megabytes per second eligible to read from Columnar FlashCache
Read IOPS from Columnar FC	oracle.exadata.FC_COL_IO_RQ_R_SEC	Number of requests per second that were read from Columnar FlashCache

Metric name	Metric key	Description
FC keep pool read MB	oracle.exadata.FC_IO_BYKEEP_R	Number of megabytes read from FlashCache for keep objects
FC keep pool read MBps	oracle.exadata.FC_IO_BYKEEP_R_SEC	Number of megabytes read per second from FlashCache for keep objects
FC keep pool write MB	oracle.exadata.FC_IO_BYKEEP_W	Number of megabytes written to FlashCache for keep objects
FC keep pool write MBps	oracle.exadata.FC_IO_BYKEEP_W_SEC	Number of megabytes per second written to FlashCache for keep objects
MB written from FC to hard disks	oracle.exadata.FC_IO_BY_DISK_WRITE	Number of megabytes written from flash cache to hard disks
MBps written from FC to hard disks	oracle.exadata.FC_IO_BY_DISK_WRITE_SEC	Number of megabytes per second written from flash cache to hard disks
Bypass reads MB due to not mirrored IO	oracle.exadata.FC_IO_BY_R_SKIP_NCMIRROR	Number of megabytes read from disk for IO requests that bypass FlashCache as the IO is on non-primary, non-active secondary mirror
FC large write MB due to cache hint	oracle.exadata.FC_IO_BY_W_LG_CHINT	Number of megabytes used for large writes to flash cache due to cache hint
FC data aging large writes MB	oracle.exadata.FC_IO_BY_W_LG_DTAGE	Number of megabytes used for data aging large writes to flash cache
FC media recovery large writes MB	oracle.exadata.FC_IO_BY_W_LG_MRCV	Number of megabytes used for media recovery large writes to flash cache
Bypass written MB due to not mirrored IO	oracle.exadata.FC_IO_BY_W_SKIP_NCMIRROR	Number of megabytes written to disk for IO requests that bypass FlashCache as the IO is on non-primary, non-active secondary mirror
FC keep pool read IOPS missed	oracle.exadata.FC_IO_RQKEEP_R_MISS_SEC	Number of read requests per second for keep objects which did not find all data in FlashCache
FC keep pool read IOPS	oracle.exadata.FC_IO_RQKEEP_R_SEC	Number of read requests per second for keep objects from FlashCache
FC keep pool read IOPS resulting in bypass	oracle.exadata.FC_IO_RQKEEP_R_SKIP_SEC	Number of read requests per second for keep objects that bypass FlashCache
FC keep pool read IOPS which populated data	oracle.exadata.FC_IO_RQKEEP_W_SEC	Number of requests per second for keep objects which resulted in FlashCache being populated with data
FlashCache to HDD write IOPS	oracle.exadata.FC_IO_RQ_DISK_WRITE_SEC	Number of requests per second written from flash cache to hard disks

Metric name	Metric key	Description
Background SIO CPU time used (us/sec)	oracle.exadata.SIO_BG_CPU_SEC	CPU time used by background smart IO per second
Foreground SIO CPU time used (us/sec)	oracle.exadata.SIO_FG_CPU_SEC	CPU time used by foreground smart IO per second

Metric name	Metric key	Description
Sender-side ACK timer expiry count	oracle.exadata.EXW_ROCE_LOCAL_ACK_TIMEOUT_ERR	Network interface sender-side ACK timer expiry count
Pause frames on the RoCE lane	oracle.exadata.EXW_ROCE_PAUSE	Number of pause frames on the RoCE lane
Received RNR NAK packets	oracle.exadata.EXW_ROCE_RNR_NAK_RETRY_ERR	Number of received RNR NAK packets
RX MBytes by the RoCE lane	oracle.exadata.EXW_ROCE_RX_BY	Number of bytes received by the RoCE lane
RX MBps by the RoCE lane	oracle.exadata.EXW_ROCE_RX_BY_SEC	Number of bytes per second received by the RoCE lane
TX MBytes by the RoCE lane	oracle.exadata.EXW_ROCE_TX_BY	Number of bytes transmitted by the RoCE lane
TX MBps by the RoCE lane	oracle.exadata.EXW_ROCE_TX_BY_SEC	Number of bytes per second transmitted by the RoCE lane

Metric name	Metric key	Description
FlashCache IO MBps	oracle.exadata.CT_FC_IO_BY_SEC	Number of megabytes of I/O per second for this category to flash cache
FlashDisks IO Mbps	oracle.exadata.CT_FD_IO_BY_SEC	Number of megabytes of I/O per second for this category to flash disks

Metric name	Metric key	Description
IOPS with no data returned	oracle.exadata.CL_IO_RQ_NODATA_SEC	Number of IO requests that did not return data per second
Exadata Run Queue Length	oracle.exadata.CL_RUNQ	Average number (over the preceding minute) of processes in the Linux run queue marked running or uninterruptible (from /proc/loadavg).

Metric name	Metric key	Description
FlashCache MB allocated	oracle.exadata.PDB_FC_BY_ALLOCATED	Number of megabytes allocated in flash cache for this pluggable database
FlashCache IO MBps	oracle.exadata.PDB_FC_IO_BY_SEC	Number of megabytes of I/O per second for this pluggable database to flash cache
FC large request IOPS	oracle.exadata.PDB_FC_IO_RQ_LG_SEC	Number of large IO requests issued by this pluggable database to flash cache per second
FC small request IOPS	oracle.exadata.PDB_FC_IO_RQ_SM_SEC	Number of small IO requests issued by this pluggable database to flash cache per second
FD large request IOPS	oracle.exadata.PDB_FD_IO_RQ_LG_SEC	Number of large IO requests issued by this pluggable database to flash disks per second
FD small request IOPS	oracle.exadata.PDB_FD_IO_RQ_SM_SEC	Number of small IO requests issued by this pluggable database to flash disks per second
FD large RW latency rate (us/req)	oracle.exadata.PDB_FD_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by this pluggable database from flash disks
FD small RW latency rate (us/req)	oracle.exadata.PDB_FD_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by this pluggable database from flash disks
IORM wait /req for large requests (avg)	oracle.exadata.PDB_FD_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to flash disks by this pluggable database
IORM wait /req for small requests (avg)	oracle.exadata.PDB_FD_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to flash disks by this pluggable database
HDD large request IOPS	oracle.exadata.PDB_IO_RQ_LG_SEC	Number of large IO requests issued by this pluggable database to hard disks per second
HDD small request IOPS	oracle.exadata.PDB_IO_RQ_SM_SEC	Number of small IO requests issued by this pluggable database to hard disks per second
HDD large RW latency rate (us/req)	oracle.exadata.PDB_IO_TM_LG_RQ	The rate which is the average latency of reading or writing large blocks per request by this pluggable database from hard disks
HDD small RW latency rate (us/req)	oracle.exadata.PDB_IO_TM_SM_RQ	The rate which is the average latency of reading or writing small blocks per request by this pluggable database from hard disks
IORM wait /req for large requests (avg)	oracle.exadata.PDB_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to hard disks by this pluggable database
IORM wait /req for small requests (avg)	oracle.exadata.PDB_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to hard disks by this pluggable database

Metric name	Metric key	Description
RX MBps on InfiniBand interfaces	oracle.exadata.N_HCA_MB_RCV_SEC	Number of megabytes received by InfiniBand interfaces per second
TX MBps on InfiniBand interfaces	oracle.exadata.N_HCA_MB_TRANS_SEC	Number of megabytes transmitted by InfiniBand interfaces per second
InfiniBand RX port MBps	oracle.exadata.N_IB_MB_RCV_SEC	Number of megabytes received by an InfiniBand port per second
InfiniBand TX port MBps	oracle.exadata.N_IB_MB_TRANS_SEC	Number of megabytes transmitted by an InfiniBand port per second
InfiniBand RX port utilization	oracle.exadata.N_IB_UTIL_RCV	Percentage of an InfiniBand port capacity utilized for receiving data
InfiniBand TX port utilization	oracle.exadata.N_IB_UTIL_TRANS	Percentage of an InfiniBand port capacity utilized for transmitting data

Metric name	Metric key	Description
RDMA TX MBps dropped	oracle.exadata.N_MB_RDMA_DROP_SEC	Number of megabytes dropped during RDMA transmission per second to a particular host
RX MBps from host	oracle.exadata.N_MB_RECEIVED_SEC	Number of megabytes per second received from a particular host
TX MBps to host	oracle.exadata.N_MB_SENT_SEC	Number of megabytes transmitted per second to a particular host

Metric name	Metric key	Description
FC large request IOPS	oracle.exadata.CLU_FC_IO_RQ_LG_SEC	Number of large IO requests issued to flash cache per second by this cluster
FlashCache IOPS	oracle.exadata.CLU_FC_IO_RQ_SEC	Number of IO requests issued to flash cache per second by this cluster
FC small request IOPS	oracle.exadata.CLU_FC_IO_RQ_SM_SEC	Number of small IO requests issued to flash cache per second by this cluster
FlashDisks IO load (avg)	oracle.exadata.CLU_FD_IO_LOAD	Average I/O load for flash disks from this cluster
FD large request IOPS	oracle.exadata.CLU_FD_IO_RQ_LG_SEC	Number of large IO requests issued to flash disks per second by this cluster
FD small request IOPS	oracle.exadata.CLU_FD_IO_RQ_SM_SEC	Number of small IO requests issued to flash disks per second by this cluster
FD RW latency (cumulative)	oracle.exadata.CLU_FD_IO_TM	For this cluster, the cumulative latency for block read or write requests from flash disks
FD large RW latency (cumulative)	oracle.exadata.CLU_FD_IO_TM_LG	For this cluster, the cumulative latency for large block read or write requests from flash disks
FD large RW latency rate (us/req)	oracle.exadata.CLU_FD_IO_TM_LG_RQ	For this cluster, the average latency for each large block read or write request from flash disks
FD RW latency rate (us/req)	oracle.exadata.CLU_FD_IO_TM_RQ	For this cluster, the average latency for each block read or write request from flash disks
FD small RW latency (cumulative)	oracle.exadata.CLU_FD_IO_TM_SM	For this cluster, the cumulative latency for small block read or write requests from flash disks
FD small RW latency rate (us/req)	oracle.exadata.CLU_FD_IO_TM_SM_RQ	For this cluster, the average latency for each small block read or write request from flash disks
Flash utilization by large requests	oracle.exadata.CLU_FD_IO_UTIL_LG	Percentage of flash resources utilized by large requests from this cluster
Flash utilization by small requests	oracle.exadata.CLU_FD_IO_UTIL_SM	Percentage of flash resources utilized by small requests from this cluster
IORM wait for large requests	oracle.exadata.CLU_FD_IO_WT_LG	IORM wait time for large IO requests issued to flash disks by this cluster
IORM wait /req for large requests (avg)	oracle.exadata.CLU_FD_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to flash disks by this cluster
IORM wait for small requests	oracle.exadata.CLU_FD_IO_WT_SM	IORM wait time for small IO requests issued to flash disks by this cluster
IORM wait /req for small requests (avg)	oracle.exadata.CLU_FD_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to flash disks by this cluster
Hard disks IO load (avg)	oracle.exadata.CLU_IO_LOAD	Average I/O load for hard disks from this cluster
HDD large request IOPS	oracle.exadata.CLU_IO_RQ_LG_SEC	Number of large IO requests issued to hard disks per second by this cluster
HDD small request IOPS	oracle.exadata.CLU_IO_RQ_SM_SEC	Number of small IO requests issued to hard disks per second by this cluster
HDD large RW latency (cumulative)	oracle.exadata.CLU_IO_TM_LG	For this cluster, the cumulative latency for large block read or write requests from hard disks
HDD large RW latency rate (us/req)	oracle.exadata.CLU_IO_TM_LG_RQ	For this cluster, the average latency for each large block read or write request from hard disks
HDD small RW latency (cumulative)	oracle.exadata.CLU_IO_TM_SM	For this cluster, the cumulative latency for small block read or write requests from hard disks
HDD small RW latency rate (us/req)	oracle.exadata.CLU_IO_TM_SM_RQ	For this cluster, the average latency for each small block read or write request from hard disks
IORM wait for large requests	oracle.exadata.CLU_IO_WT_LG	IORM wait time for large IO requests issued to hard disks by this cluster
IORM wait /req for large requests (avg)	oracle.exadata.CLU_IO_WT_LG_RQ	Average IORM wait time per request for large IO requests issued to hard disks by this cluster
IORM wait for small requests	oracle.exadata.CLU_IO_WT_SM	IORM wait time for small IO requests issued to hard disks by this cluster
IORM wait /req for small requests (avg)	oracle.exadata.CLU_IO_WT_SM_RQ	Average IORM wait time per request for small IO requests issued to hard disks by this cluster

Metric name	Metric key	Description
Unflushed MB on keep pool	oracle.exadata.FC_BYKEEP_DIRTY	Number of megabytes unflushed for keep objects on FlashCache
OLTP keep pool MB	oracle.exadata.FC_BYKEEP_OLTP	Number of megabytes for OLTP keep objects in flash cache
Pushed out MB due to keep pool limits	oracle.exadata.FC_BYKEEP_OVERWR	Number of megabytes pushed out of the FlashCache because of space limit for keep objects
Pushed out MBps due to keep pool limits	oracle.exadata.FC_BYKEEP_OVERWR_SEC	Number of megabytes per second pushed out of the FlashCache because of space limit for keep objects
Allocated MB for unflushed data in FC	oracle.exadata.FC_BY_ALLOCATED_DIRTY	Number of megabytes allocated for unflushed data in flash cache
Unflushed MB in FlashCache	oracle.exadata.FC_BY_DIRTY	Number of unflushed megabytes in FlashCache
Unflushed MB due to disk not accessible	oracle.exadata.FC_BY_STALE_DIRTY	Number of unflushed megabytes in FlashCache which cannot be flushed because cached disks are not accessible
Used MB on FlashCache	oracle.exadata.FC_BY_USED	Number of megabytes used on FlashCache
FlashCache IO errors	oracle.exadata.FC_IO_ERRS	Number of IO errors on FlashCache

Metric name	Metric key	Description
Flash utilization	oracle.exadata.CG_FD_IO_UTIL	Percentage of flash resources utilized by this consumer group
Flash utilization by large requests	oracle.exadata.CG_FD_IO_UTIL_LG	Percentage of flash resources utilized by large requests from this consumer group
Flash utilization by small requests	oracle.exadata.CG_FD_IO_UTIL_SM	Percentage of flash resources utilized by small requests from this consumer group
Disk utilization by large requests	oracle.exadata.CG_IO_UTIL_LG	Percentage of disk resources utilized by large requests from this consumer group
Disk utilization by small requests	oracle.exadata.CG_IO_UTIL_SM	Percentage of disk resources utilized by small requests from this consumer group

Metric name	Metric key	Description
FlashCache IO MBps	oracle.exadata.CLU_FC_IO_BY_SEC	Number of megabytes of I/O per second to flash cache by this cluster
FlashDisks IO Mbps	oracle.exadata.CLU_FD_IO_BY_SEC	Number of megabytes of I/O per second to flash disks by this cluster
Flash utilization	oracle.exadata.CLU_FD_IO_UTIL	Percentage of flash resources utilized by this cluster
Hard disks IO MBps	oracle.exadata.CLU_IO_BY_SEC	Number of megabytes of I/O per second to hard disks by this cluster
Disk utilization by large requests	oracle.exadata.CLU_IO_UTIL_LG	Percentage of disk resources utilized by large requests from this cluster
Disk utilization by small requests	oracle.exadata.CLU_IO_UTIL_SM	Percentage of disk resources utilized by small requests from this cluster

Metric name	Metric key	Description
File system space utilization	oracle.exadata.DS_FSUT	Percentage of total space on this file system that is currently used

Metric name	Metric key	Description
Memory available for smart scans	oracle.exadata.EXW_CELLMEM_CELL_AVAIL	Memory available for smart scans
Memory % available for smart scans	oracle.exadata.EXW_CELLMEM_CELL_AVAIL_PCT	Percentage of memory available for smart scans
Memory used/reserved by CELLSRV	oracle.exadata.EXW_CELLMEM_CELL_CELLSRV	Memory used/reserved by CELLSRV
Kernel memory used by CELLSRV	oracle.exadata.EXW_CELLMEM_CELL_KNL	Estimated kernel memory used by CELLSRV
Max memory limit for Exadata software	oracle.exadata.EXW_CELLMEM_CELL_MAX	Maximum memory limit for Exadata software
Memory used/reserved by cell offload servers	oracle.exadata.EXW_CELLMEM_CELL_OFFLOAD	Memory used/reserved by cell offload servers
Physical memory available in the system	oracle.exadata.EXW_CELLMEM_OS_AVAIL	Physical memory available in the system
Physical memory % available in the system	oracle.exadata.EXW_CELLMEM_OS_AVAIL_PCT	Percentage of physical memory available in the system
Memory used by the OS kernel	oracle.exadata.EXW_CELLMEM_OS_KNL	Memory used by the OS kernel
System memory total	oracle.exadata.EXW_CELLMEM_OS_TOTAL	Total amount of memory in the system
Memory used by user-level processes	oracle.exadata.EXW_CELLMEM_OS_USR	Memory used by user-level processes
XRMEM cache MB allocated total	oracle.exadata.XRM_BY_ALLOCATED	Number of megabytes allocated in XRMEM cache
Non-blocked sends blocked by congestion	oracle.exadata.EXW_RDS_CONG_SEND_BLOCKED	Number of non-blocked sends that were blocked due to destination congestion
Blocked sends not completed	oracle.exadata.EXW_RDS_CONG_SEND_ERROR	Number of blocked sends not completed due to destination congestion
Times the 1MB pool reached maximum capacity	oracle.exadata.EXW_RDS_IB_MR_1M_POOL_DEPLETED	Number of times the 1MB pool reached maximum capacity
Times the 8KB pool reached maximum capacity	oracle.exadata.EXW_RDS_IB_RDMA_MR_8K_POOL_DEPLETED	Number of times the 8KB pool reached maximum capacity
Send requests exceeding 500ms to complete	oracle.exadata.EXW_RDS_IB_TX_STALLED	Number of network send requests exceeding 500ms to complete

Metric name	Metric key	Description
GD large read MB	oracle.exadata.GD_IO_BY_R_LG	Number of megabytes read in large blocks from a grid disk
GD large read MBps	oracle.exadata.GD_IO_BY_R_LG_SEC	Number of megabytes read in large blocks per second from a grid disk
GD Scrubbing job read MB	oracle.exadata.GD_IO_BY_R_SCRUB	Number of megabytes read from a grid disk by the scrubbing job
GD Scrubbing job read MBps	oracle.exadata.GD_IO_BY_R_SCRUB_SEC	Number of megabytes read per second from a grid disk by the scrubbing job
GD small read MB	oracle.exadata.GD_IO_BY_R_SM	Number of megabytes read in small blocks from a grid disk
GD small read MBps	oracle.exadata.GD_IO_BY_R_SM_SEC	Number of megabytes read in small blocks per second from a grid disk
GD large write MB	oracle.exadata.GD_IO_BY_W_LG	Number of megabytes written in large blocks to a grid disk
GD large write MBps	oracle.exadata.GD_IO_BY_W_LG_SEC	Number of megabytes written in large blocks per second to a grid disk
GD small write MB	oracle.exadata.GD_IO_BY_W_SM	Number of megabytes written in small blocks to a grid disk
GD small write MBps	oracle.exadata.GD_IO_BY_W_SM_SEC	Number of megabytes written in small blocks per second to a grid disk
Grid disk IO errors	oracle.exadata.GD_IO_ERRS	Number of IO errors on a grid disk
Grid disk IO errors per minute	oracle.exadata.GD_IO_ERRS_MIN	Number of IO errors on a grid disk per minute
Grid disk IO errors scrubbed	oracle.exadata.GD_IO_ERRS_SCRUB	Number of IO errors hit by the scrubbing job on a grid disk
Read retries for an NVM grid disk	oracle.exadata.GD_NVM_READ_RETRIES	Number of read retries for a non-volatile memory (NVM) grid disk
Physical space MB allocated for grid disk	oracle.exadata.GD_SP_BY_ALLOCATED	Allocated physical space for grid disk in bytes
Partial IO bytes returned	oracle.exadata.GD_SP_IO_BY_PARTIAL	Bytes returned by partial IOs
Partial IO bytes returned rate (kBps)	oracle.exadata.GD_SP_IO_BY_PARTIAL_SEC	Bytes returned by partial IOs per second
Sparse bytes redirected	oracle.exadata.GD_SP_IO_BY_REDIRECTED	Sparse bytes redirected to original data block
Sparse kBps redirected rate (kBps)	oracle.exadata.GD_SP_IO_BY_REDIRECTED_SEC	Sparse bytes redirected to original data block per second
Partial data return requests IOPS	oracle.exadata.GD_SP_IO_RQ_PARTIAL_SEC	Number of IO requests that returned partial data per second
Allocated physical space %	oracle.exadata.GD_SP_PRCT_ALLOCATED	Allocated physical space for grid disk by percentage

Metric name	Metric key	Description
Columnar keep pool used MB	oracle.exadata.FC_COL_BYKEEP_USED	Number of megabytes used for keep objects in Columnar FlashCache
Read MB for keep	oracle.exadata.FC_COL_IO_BYKEEP_R	Number of megabytes read from Columnar FlashCache for keep objects
Read MBps for keep	oracle.exadata.FC_COL_IO_BYKEEP_R_SEC	Number of megabytes read per second from Columnar FlashCache for keep objects
Read MB from Columnar FC	oracle.exadata.FC_COL_IO_BY_R	Number of megabytes that were read from Columnar FlashCache
Eligible MB to read from Columnar FC	oracle.exadata.FC_COL_IO_BY_R_ELIGIBLE	Number of megabytes eligible to read from Columnar FlashCache
Read MBps from Columnar FC	oracle.exadata.FC_COL_IO_BY_R_SEC	Number of megabytes per second that were read from Columnar FlashCache
MB saved by reads from Columnar FC	oracle.exadata.FC_COL_IO_BY_SAVED	Number of megabytes saved by reads from Columnar FlashCache
MBps saved by reads from Columnar FC	oracle.exadata.FC_COL_IO_BY_SAVED_SEC	Number of megabytes saved per second by reads from Columnar FlashCache
Population columnar FC writes MB due to read miss	oracle.exadata.FC_COL_IO_BY_W_POPULATE	Number of megabytes that are population writes into Columnar FlashCache due to read miss
Population columnar FC writes MBps due to read miss	oracle.exadata.FC_COL_IO_BY_W_POPULATE_SEC	Number of megabytes per second that are population writes into Columnar FlashCache due to read miss
Read IOPS for keep	oracle.exadata.FC_COL_IO_RQKEEP_R_SEC	Number of requests read per second for keep objects from Columnar FlashCache
Eligible read IOPS from Columnar FC	oracle.exadata.FC_COL_IO_RQ_R_ELIGIBLE_SEC	Number of reads per second eligible for Columnar FlashCache
Population write IOPS due to read miss	oracle.exadata.FC_COL_IO_RQ_W_POPULATE_SEC	Number of requests per second that are population writes into Columnar FlashCache due to read miss

Metric name	Metric key	Description
System load 1m	oracle.exadata.OS_CPU_LOAD1	System load average over the last 1 minute
System load 5m	oracle.exadata.OS_CPU_LOAD5	System load average over the last 5 minutes
System load 15m	oracle.exadata.OS_CPU_LOAD15	System load average over the last 15 minutes
CPU usage %	oracle.exadata.OS_CPU_PCT	Percentage of CPU utilization over the time interval
Available memory	oracle.exadata.OS_MEM_BY_AVAIL	Total available server memory
Free memory	oracle.exadata.OS_MEM_BY_FREE	Total free server memory
Used memory	oracle.exadata.OS_MEM_BY_USED	Total used server memory
Usable memory	oracle.exadata.OS_MEM_BY_TOTAL	Total usable server memory
Swap kB available	oracle.exadata.OS_SWAP_BY_FREE	Total amount of free swap space
Swap kB used	oracle.exadata.OS_SWAP_BY_USED	Total amount of used swap space
Swap kB total	oracle.exadata.OS_SWAP_BY_TOTAL	Total amount of swap space

Metric name	Metric key	Description
Keep pool used MB	oracle.exadata.FC_BYKEEP_USED	Number of megabytes used for keep objects on FlashCache
Allocated MB in FlashCache	oracle.exadata.FC_BY_ALLOCATED	Number of megabytes allocated in flash cache
Allocated MB for OLTP data in FC	oracle.exadata.FC_BY_ALLOCATED_OLTP	Number of megabytes allocated for OLTP data in flash cache
OLTP small reads MB	oracle.exadata.FC_IO_BY_R	Number of megabytes of small reads (OLTP) from flash cache
OLTP small reads MBps	oracle.exadata.FC_IO_BY_R_SEC	Number of megabytes of small reads (OLTP) per second from flash cache
Bypass reads MB	oracle.exadata.FC_IO_BY_R_SKIP	Number of megabytes read from disks for IO requests that bypass FlashCache
FlashCache MB written	oracle.exadata.FC_IO_BY_W	Number of megabytes written to FlashCache
FlashCache write MBps	oracle.exadata.FC_IO_BY_W_SEC	Number of megabytes per second written to FlashCache
Bypass written MB	oracle.exadata.FC_IO_BY_W_SKIP	Number of megabytes written to disk for IO requests that bypass FlashCache
OLTP small read hit IOPS	oracle.exadata.FC_IO_RQ_R_SEC	Number of small reads (OLTP) per second satisfied from the flash cache
IOPS successfully populating FC with data	oracle.exadata.FC_IO_RQ_W_SEC	Number of requests per second which resulted in FlashCache being populated with data

Metric name	Metric key	Description
Device RX rate MBps	oracle.exadata.OS_IO_BY_R_SEC	Number of bytes read per second from the device
Device TX rate MBps	oracle.exadata.OS_IO_BY_W_SEC	Number of bytes written per second to the device
Device reads completed (req/s)	oracle.exadata.OS_IO_RQ_R_SEC	Number of read requests completed per second for the device
Device IO request size (avg)	oracle.exadata.OS_IO_RQ_SZ	Average size of IO requests issued to the device
Device writes completed (req/s)	oracle.exadata.OS_IO_RQ_W_SEC	Number of write requests completed per second for the device
Device IO request service time (avg)	oracle.exadata.OS_IO_TM_RQ	Average service time of the IO requests issued to the device
Device IO requests time percentage	oracle.exadata.OS_IO_UTIL_PCT	Percentage of time during which I/O requests were issued to the device
Device IO request latency (avg)	oracle.exadata.OS_IO_WT_RQ	Average latency of the IO requests issued to the device
Device read request latency (avg)	oracle.exadata.OS_IO_WT_R_RQ	Average latency of read requests from the device
Device write request latency (avg)	oracle.exadata.OS_IO_WT_W_RQ	Average latency of write requests to the device

Metric name	Metric key	Description
Exadata Run Queue Length	oracle.exadata.DS_RUNQ	Average number (over the preceding minute) of processes in the Linux run queue marked running or uninterruptible (from /proc/loadavg).

Metric name	Metric key	Description
Host TX MB dropped	oracle.exadata.N_MB_DROP	Number of megabytes droped during transmission to a particular host
Host TX MBps dropped	oracle.exadata.N_MB_DROP_SEC	Number of megabytes droped during transmission per second to a particular host
RDMA TX MB dropped	oracle.exadata.N_MB_RDMA_DROP	Number of megabytes dropped during RDMA transmission to a particular host
RX MB from host	oracle.exadata.N_MB_RECEIVED	Number of megabytes received from a particular host
Resent MB to host	oracle.exadata.N_MB_RESENT	Number of megabytes resent to a particular host
Resent MBps to host	oracle.exadata.N_MB_RESENT_SEC	Number of megabytes resent per second to a particular host
TX MB to host	oracle.exadata.N_MB_SENT	Number of megabytes transmitted to a particular host
RDMA TX retry latency	oracle.exadata.N_RDMA_RETRY_TM	Latency of the retry actions during RDMA transmission to a particular host

Metric name	Metric key	Description
Average rds-ping latency	oracle.exadata.EXW_RDS_PING	Average rds-ping latency
Average rds-ping latency on lane 0	oracle.exadata.EXW_RDS_PING_0	Average rds-ping latency on lane 0

Metric name	Metric key	Description
Cell disk unflushed volume cached	oracle.exadata.CD_BY_FC_DIRTY	Number of unflushed megabytes cached in FLASHCACHE on a cell disk
CD large read MB	oracle.exadata.CD_IO_BY_R_LG	Number of megabytes read in large blocks from a cell disk
CD large read MBps	oracle.exadata.CD_IO_BY_R_LG_SEC	Number of megabytes read in large blocks per second from a cell disk
CD Scrubbing job read MB	oracle.exadata.CD_IO_BY_R_SCRUB	Number of megabytes read from a cell disk by the scrubbing job
CD Scrubbing job read MBps	oracle.exadata.CD_IO_BY_R_SCRUB_SEC	Number of megabytes read per second from a cell disk by the scrubbing job
CD small read MB	oracle.exadata.CD_IO_BY_R_SM	Number of megabytes read in small blocks from a cell disk
CD small read MBps	oracle.exadata.CD_IO_BY_R_SM_SEC	Number of megabytes read in small blocks per second from a cell disk
CD large write MB	oracle.exadata.CD_IO_BY_W_LG	Number of megabytes written in large blocks to a cell disk
CD large write MBps	oracle.exadata.CD_IO_BY_W_LG_SEC	Number of megabytes written in large blocks per second to a cell disk
CD small write MB	oracle.exadata.CD_IO_BY_W_SM	Number of megabytes written in small blocks to a cell disk
CD small write MBps	oracle.exadata.CD_IO_BY_W_SM_SEC	Number of megabytes written in small blocks per second to a cell disk
Cell disk IO errors scrubbed	oracle.exadata.CD_IO_ERRS_SCRUB	Number of IO errors hit by the scrubbing job on a cell disk
Cell disk IO load	oracle.exadata.CD_IO_LOAD	Average I/O load for the cell disk
CD large read IOPS	oracle.exadata.CD_IO_RQ_R_LG_SEC	Number of requests to read large blocks per second from a cell disk
CD scrubbing job read IOPS	oracle.exadata.CD_IO_RQ_R_SCRUB_SEC	Number of requests to read per second from a cell disk by the scrubbing job
CD small read IOPS	oracle.exadata.CD_IO_RQ_R_SM_SEC	Number of requests to read small blocks per second from a cell disk
CD large write IOPS	oracle.exadata.CD_IO_RQ_W_LG_SEC	Number of requests to write large blocks per second to a cell disk
CD small write IOPS	oracle.exadata.CD_IO_RQ_W_SM_SEC	Number of requests to write small blocks per second to a cell disk
Small request service time	oracle.exadata.CD_IO_ST_RQ	Average service time per request for small IO requests to a cell disk
CD large read latency rate (us/req)	oracle.exadata.CD_IO_TM_R_LG_RQ	Average latency of reading large blocks per request to a cell disk
CD small read latency rate (us/req)	oracle.exadata.CD_IO_TM_R_SM_RQ	Average latency of reading small blocks per request from a cell disk
CD small write latency rate (us/req)	oracle.exadata.CD_IO_TM_W_SM_RQ	Average latency of writing small blocks per request to a cell disk
Cell disk utilization	oracle.exadata.CD_IO_UTIL	Percentage of disk resources utilized for the cell disk
Cell disk utilization by large requests	oracle.exadata.CD_IO_UTIL_LG	Percentage of disk resources utilized by large requests for the cell disk
Cell disk utilization by small requests	oracle.exadata.CD_IO_UTIL_SM	Percentage of disk resources utilized by small requests for the cell disk

Metric name	Metric key	Description
Unflushed cached MB for a grid disk	oracle.exadata.GD_BY_FC_DIRTY	Number of unflushed megabytes cached in FLASHCACHE for a grid disk
GD large read IOPS	oracle.exadata.GD_IO_RQ_R_LG_SEC	Number of requests to read large blocks per second from a grid disk
GD scrubbing job read IOPS	oracle.exadata.GD_IO_RQ_R_SCRUB_SEC	Number of requests to read per second from a grid disk by the scrubbing job
GD small read IOPS	oracle.exadata.GD_IO_RQ_R_SM_SEC	Number of requests to read small blocks per second from a grid disk
GD large write IOPS	oracle.exadata.GD_IO_RQ_W_LG_SEC	Number of requests to write large blocks per second to a grid disk
GD small write IOPS	oracle.exadata.GD_IO_RQ_W_SM_SEC	Number of requests to write small blocks per second to a grid disk

Metric name	Metric key	Description
Active secondary reads MB satisfied from FC	oracle.exadata.FC_IO_BY_R_ACTIVE_SECONDARY	Number of megabytes for active secondary reads satisfied from flash cache
Active secondary reads MB not satisfied from FC	oracle.exadata.FC_IO_BY_R_ACTIVE_SECONDARY_MISS	Number of megabytes for active secondary reads not satisfied from flash cache
Active secondary read MBps not satisfied from FC	oracle.exadata.FC_IO_BY_R_ACTIVE_SECONDARY_MISS_SEC	Number of megabytes per second for active secondary reads not satisfied from flash cache
Active secondary read MBps satisfied from FC	oracle.exadata.FC_IO_BY_R_ACTIVE_SECONDARY_SEC	Number of megabytes per second for active secondary reads satisfied from flash cache
Disk writer MB read	oracle.exadata.FC_IO_BY_R_DISK_WRITER	Number of megabytes read from flash cache by disk writer
Disk writer MBps read	oracle.exadata.FC_IO_BY_R_DISK_WRITER_SEC	Number of megabytes per second read from flash cache by disk writer
DW large reads MB from FC	oracle.exadata.FC_IO_BY_R_DW	Number of megabytes of large reads (DW) from flash cache
DW large reads MBps from FC	oracle.exadata.FC_IO_BY_R_DW_SEC	Number of megabytes of large reads (DW) per second from flash cache
OLTP small reads MB due to keep misses	oracle.exadata.FC_IO_BY_R_MISS	Number of megabytes of small reads (OLTP) from disks because some of the requested data was not in flash cache
DW large reads MB due to keep misses	oracle.exadata.FC_IO_BY_R_MISS_DW	Number of megabytes of large reads (DW) from disks because some of the requested data was not in flash cache
DW large reads MBps due to keep misses	oracle.exadata.FC_IO_BY_R_MISS_DW_SEC	Number of megabytes of large reads (DW) per second from disks because some of the requested data was not in flash cache
OLTP small reads MBps due to keep misses	oracle.exadata.FC_IO_BY_R_MISS_SEC	Number of megabytes of small reads (OLTP) per second from disks because some of the requested data was not in flash cache
Bypass reads MB due to heavy load	oracle.exadata.FC_IO_BY_R_SKIP_FC_THROTTLE	Number of megabytes read from disk for IO requests that bypass FlashCache due to heavy load on FlashCache
Bypass reads MBps due to heavy load	oracle.exadata.FC_IO_BY_R_SKIP_FC_THROTTLE_SEC	Number of megabytes read per second from disk for IO requests that bypass FlashCache due to heavy load on FlashCache
Bypass reads MB due to large IO size	oracle.exadata.FC_IO_BY_R_SKIP_LG	Number of megabytes read from disk for IO requests that bypass FlashCache due to the large IO size
Bypass reads MBps due to large IO size	oracle.exadata.FC_IO_BY_R_SKIP_LG_SEC	Number of megabytes read per second from disk for IO requests that bypass FlashCache due to the large IO size
Bypass reads MBps	oracle.exadata.FC_IO_BY_R_SKIP_SEC	Number of megabytes read from disks per second for IO requests that bypass FlashCache
Disk writer MB written	oracle.exadata.FC_IO_BY_W_DISK_WRITER	Number of megabytes written to hard disks by disk writer
Disk writer MBps written	oracle.exadata.FC_IO_BY_W_DISK_WRITER_SEC	Number of megabytes per second written to hard disks by disk writer
First write MB into FlashCache	oracle.exadata.FC_IO_BY_W_FIRST	Number of megabytes that are first writes into flash cache
First write MBps into FlashCache	oracle.exadata.FC_IO_BY_W_FIRST_SEC	Number of megabytes per second that are first writes into flash cache
FC metadata writes MB	oracle.exadata.FC_IO_BY_W_METADATA	Number of megabytes that are flash cache metadata writes
FC metadata writes MBps	oracle.exadata.FC_IO_BY_W_METADATA_SEC	Number of megabytes per second that are flash cache metadata writes
FC overwrite MB	oracle.exadata.FC_IO_BY_W_OVERWRITE	Number of megabytes that are overwrites into flash cache
FC overwrite MBps	oracle.exadata.FC_IO_BY_W_OVERWRITE_SEC	Number of megabytes per second that are overwrites into flash cache
FC population writes MB due to read miss	oracle.exadata.FC_IO_BY_W_POPULATE	Number of megabytes that are population writes into flash cache due to read miss
FC population writes MBps due to read miss	oracle.exadata.FC_IO_BY_W_POPULATE_SEC	Number of megabytes per second that are population writes into flash cache due to read miss
Bypass written MB due to heavy load	oracle.exadata.FC_IO_BY_W_SKIP_FC_THROTTLE	Number of megabytes written to disk for IO requests that bypass FlashCache due to heavy load on FlashCache
Bypass write MBps due to heavy load	oracle.exadata.FC_IO_BY_W_SKIP_FC_THROTTLE_SEC	Number of megabytes written per second to disk for IO requests that bypass FlashCache due to heavy load on FlashCache
Bypass written MB due to large IO size	oracle.exadata.FC_IO_BY_W_SKIP_LG	Number of megabytes written to disk for IO requests that bypass FlashCache due to the large IO size
Bypass write MBps due to large IO size	oracle.exadata.FC_IO_BY_W_SKIP_LG_SEC	Number of megabytes written per second to disk for IO requests that bypass FlashCache due to the large IO size
Bypass write MBps	oracle.exadata.FC_IO_BY_W_SKIP_SEC	Number of megabytes written to disk per second for IO requests that bypass FlashCache
Active secondary read IOPS not satisfied from FC	oracle.exadata.FC_IO_RQ_R_ACTIVE_SECONDARY_MISS_SEC	Number of requests per second for active secondary reads not satisfied from flash cache
Active secondary read IOPS satisfied from FC	oracle.exadata.FC_IO_RQ_R_ACTIVE_SECONDARY_SEC	Number of requests per second for active secondary reads satisfied from flash cache
Disk writer FC read IOPS	oracle.exadata.FC_IO_RQ_R_DISK_WRITER_SEC	Number of requests per second read from flash cache by disk writer
DW large read hit IOPS	oracle.exadata.FC_IO_RQ_R_DW_SEC	Number of large reads (DW) per second satisfied from the flash cache
DW large read miss IOPS	oracle.exadata.FC_IO_RQ_R_MISS_DW_SEC	Number of large reads (DW) per second that did not find all data in flash cache
OLTP small read miss IOPS	oracle.exadata.FC_IO_RQ_R_MISS_SEC	Number of small reads (OLTP) per second that did not find all data in flash cache
Bypass read IOPS due to heavy load	oracle.exadata.FC_IO_RQ_R_SKIP_FC_THROTTLE_SEC	Number of requests read from disk per second that bypassed FlashCache due to heavy load on FlashCache
Bypass read IOPS due to large IO size	oracle.exadata.FC_IO_RQ_R_SKIP_LG_SEC	Number of requests read from disk per second that bypass FlashCache due to the large IO size
Bypass read IOPS	oracle.exadata.FC_IO_RQ_R_SKIP_SEC	Number of requests read from disk per second that bypass FlashCache
Disk writer HDD write IOPS	oracle.exadata.FC_IO_RQ_W_DISK_WRITER_SEC	Number of requests per second written to hard disks by disk writer
First write into FlashCache IOPS	oracle.exadata.FC_IO_RQ_W_FIRST_SEC	Number of requests per second that are first writes into flash cache
FC metadata writes IOPS	oracle.exadata.FC_IO_RQ_W_METADATA_SEC	Number of requests per second that are flash cache metadata writes
FC overwrite IOPS	oracle.exadata.FC_IO_RQ_W_OVERWRITE_SEC	Number of requests per second that are overwrites into flash cache
Population FC write IOPS due to read miss	oracle.exadata.FC_IO_RQ_W_POPULATE_SEC	Number of requests per second that are population writes into flash cache due to read miss
Bypass write IOPS due to heavy load	oracle.exadata.FC_IO_RQ_W_SKIP_FC_THROTTLE_SEC	Number of requests written to disk per second that bypass FlashCache due to heavy load on FlashCache
Bypass write IOPS due to large IO size	oracle.exadata.FC_IO_RQ_W_SKIP_LG_SEC	Number of requests written to disk per second that bypass FlashCache due to the large IO size
Bypass write IOPS	oracle.exadata.FC_IO_RQ_W_SKIP_SEC	Number of requests written to disk per second that bypass FlashCache

Metric name	Metric key	Description
FlashCache IOPS	oracle.exadata.PDB_FC_IO_RQ_SEC	Number of IO requests issued by this pluggable database to flash cache per second
FlashDisks IO Mbps	oracle.exadata.PDB_FD_IO_BY_SEC	Number of megabytes of I/O per second for this pluggable database to flash disks
FlashDisks IO load (avg)	oracle.exadata.PDB_FD_IO_LOAD	Average I/O load from this pluggable database for flash disks
FD RW latency (cumulative)	oracle.exadata.PDB_FD_IO_TM	The cumulative latency of reading or writing blocks by this pluggable database from flash disks
FD large RW latency (cumulative)	oracle.exadata.PDB_FD_IO_TM_LG	The cumulative latency of reading or writing large blocks by this pluggable database from flash disks
FD RW latency rate (us/req)	oracle.exadata.PDB_FD_IO_TM_RQ	The rate which is the average latency of reading or writing blocks per request by this pluggable database from flash disks
FD small RW latency (cumulative)	oracle.exadata.PDB_FD_IO_TM_SM	The cumulative latency of reading or writing small blocks by this pluggable database from flash disks
Flash utilization	oracle.exadata.PDB_FD_IO_UTIL	Percentage of flash resources utilized by this pluggable database
Flash utilization by large requests	oracle.exadata.PDB_FD_IO_UTIL_LG	Percentage of flash resources utilized by large requests from this pluggable database
Flash utilization by small requests	oracle.exadata.PDB_FD_IO_UTIL_SM	Percentage of flash resources utilized by small requests from this pluggable database
IORM wait for large requests	oracle.exadata.PDB_FD_IO_WT_LG	IORM wait time for large IO requests issued to flash disks by this pluggable database
IORM wait for small requests	oracle.exadata.PDB_FD_IO_WT_SM	IORM wait time for small IO requests issued to flash disks by this pluggable database
Hard disks IO MBps	oracle.exadata.PDB_IO_BY_SEC	Number of megabytes of I/O per second for this pluggable database to hard disks
Hard disks IO load (avg)	oracle.exadata.PDB_IO_LOAD	Average I/O load from this pluggable database for hard disks
HDD large RW latency (cumulative)	oracle.exadata.PDB_IO_TM_LG	The cumulative latency of reading or writing large blocks by this pluggable database from hard disks
HDD small RW latency (cumulative)	oracle.exadata.PDB_IO_TM_SM	The cumulative latency of reading or writing small blocks by this pluggable database from hard disks
Disk utilization by large requests	oracle.exadata.PDB_IO_UTIL_LG	Percentage of disk resources utilized by large requests from this pluggable database
Disk utilization by small requests	oracle.exadata.PDB_IO_UTIL_SM	Percentage of disk resources utilized by small requests from this pluggable database
IORM wait for large requests	oracle.exadata.PDB_IO_WT_LG	IORM wait time for large IO requests issued to hard disks by this pluggable database
IORM wait for small requests	oracle.exadata.PDB_IO_WT_SM	IORM wait time for small IO requests issued to hard disks by this pluggable database
XRMEM PDB cache MB allocated	oracle.exadata.PDB_XRM_BY_ALLOCATED	Number of megabytes allocated in XRMEM cache for this pluggable database
Cell CPU usage by population jobs %	oracle.exadata.PDB_CPU_UTIL_COL	For this PDB, percentage of cell CPU resources utilized by columnar population jobs
Cell CPU usage by smart IO jobs %	oracle.exadata.PDB_CPU_UTIL_SIO	For this PDB, percentage of cell CPU resources utilized by smart IO jobs
SIO jobs on cell vs sent back to DB (%)	oracle.exadata.PDB_SIO_OF_PCT	For this PDB, percentage of smart IO jobs processed on the cell versus jobs sent back to the database server because the PDB exhausted its cell CPU limit

Metric name	Metric key	Description
Ethernet RX kBps	oracle.exadata.N_NIC_KB_RCV_SEC	Number of kilobytes received by Ethernet interfaces per second
Ethernet TX kBps	oracle.exadata.N_NIC_KB_TRANS_SEC	Number of kilobytes transmitted by Ethernet interfaces per second

Metric name	Metric key	Description
Cell disk IO errors	oracle.exadata.CD_IO_ERRS	Number of IO errors on a cell disk
Cell disk IO errors per minute	oracle.exadata.CD_IO_ERRS_MIN	Number of IO errors on a cell disk per minute
CD large read latency (cumulative)	oracle.exadata.CD_IO_TM_R_LG	Cumulative latency of reading large blocks from a cell disk
CD small read latency (cumulative)	oracle.exadata.CD_IO_TM_R_SM	Cumulative latency of reading small blocks from a cell disk
CD large write latency (cumulative)	oracle.exadata.CD_IO_TM_W_LG	Cumulative latency of writing large blocks to a cell disk
CD large write latency rate (us/req)	oracle.exadata.CD_IO_TM_W_LG_RQ	Average latency of writing large blocks per request to a cell disk
CD small write latency (cumulative)	oracle.exadata.CD_IO_TM_W_SM	Cumulative latency of writing small blocks to a cell disk

Metric name	Metric key	Description
Physical memory utilization by MS	oracle.exadata.CL_MEMUT_MS	Percentage of physical memory used by MS
Physical memory utilization by CELLSRV	oracle.exadata.CL_MEMUT_CS	Percentage of physical memory used by CELLSRV
Physical memory utilization	oracle.exadata.CL_MEMUT	Percentage of total physical memory on this server that is currently used
Disk Controller Battery Temperature	oracle.exadata.CL_BBU_TEMP	Disk Controller Battery Temperature
Disk Controller Battery Charge	oracle.exadata.CL_BBU_CHARGE	Disk Controller Battery Charge
Swap used %	oracle.exadata.CL_SWAP_USAGE	Percentage of swap used
Swap read speed kBps	oracle.exadata.CL_SWAP_IN_BY_SEC	Amount of swap pages read in KB per second
Swap write speed kBps	oracle.exadata.CL_SWAP_OUT_BY_SEC	Amount of swap pages written in KB per second
CPU not idle %	oracle.exadata.CL_CPUT	Percentage of time over the previous minute that the system CPUs were not idle.
CPU usage by CELLSRV %	oracle.exadata.CL_CPUT_CS	Percentage of CPU time used by CELLSRV
CPU usage by MS %	oracle.exadata.CL_CPUT_MS	Percentage of CPU time used by MS
Virtual memory used by CELLSRV	oracle.exadata.CL_VIRTMEM_CS	Amount of virtual memory used by CELLSRV in MB
Virtual memory used by MS	oracle.exadata.CL_VIRTMEM_MS	Amount of virtual memory used by MS in MB
Temperature (Celsius) of the server	oracle.exadata.CL_TEMP	Temperature (Celsius) of the server, provided by the BMC
Fans working on the cell	oracle.exadata.CL_FANS	Number of working fans on the cell
IORM objective for the cell	oracle.exadata.IORM_MODE	I/O Resource Manager objective for the cell

FAQ

This extension does not support monitoring ExaCC (Exadata Cloud at Customer).

For more information and potential alternatives, see OCI monitoring services by Oracle. Oracle says that Metrics for Exadata database service can be emitted to the OCI monitoring services. Dynatrace's Oracle Connector Hub Signals Ingest can consume metrics from the Connector Hub. Note: this answer is a digest of the publicly available documentation; this route hasn't been tested and verified by Dynatrace.

Exadata metric keys have a self-explanatory structure. Knowing it, you will always be able to understand what specific metric represents, exactly, even if its name or description looks similar to other available metrics.

Key to deciphering Exadata metric names:

The value of the name attribute is a composite of abbreviations. The attribute value starts with an abbreviation of the object type on which the metric is defined:

CD_ (cell disk)
CG_ (IORM consumer group, database-qualified)
CL_ (cell)
CT_ (IORM category)
DB_ (IORM database-level)
FC_ (flash cache)
FL_ (flash log)
GD_ (grid disk)
IORM (Input Output Resource Management)
N_ (network, IBPORT, HOST_INTERCONNECT)
PDB_ (IORM pluggable database)
SIO_ (Smart IO)

After the abbreviation of the object type, most of the name attributes contain one of the following combinations to identify the operation:

IO_BY (I/O amount)
IO_RQ (number of I/O requests)
IO_TM (I/O latency)
IO_WT (I/O wait time)
FC_IO_BY (Flash cache I/O amount)
FC_IO_RQ (Flash cache I/O requests)
FD_IO_BY (Flash disk I/O amount)
FD_IO_RQ (Flash disk I/O requests)
FD_IO_TM (Flash disk latency)
FD_IO_UTIL (Flash disk utilization percentage)

Next, in the name could be

_R (for read) or
_W (for write).

Following that in the name attribute value there might be

_SM or _LG to identify small or
_LG to identify large blocks, respectively.

At the end of the name, there could be

_SEC to signify per seconds or
_RQ to signify per request.

For consumer group and category metrics, read or write details are omitted.

For example: CD_IO_RQ_R_SM is the number of requests to read small blocks on a cell disk. GD_IO_TM_W_LG is the microseconds of I/O latency writing large blocks on a grid disk.

Source: Exadata Database Machine User's Guide section DESCRIBE METRICDEFINITION.

You need to configure metric streams on each Exadata server you intend to monitor. Use DBMCLI utility on DB servers. Use CELLCLI utility on cell servers. Or use utilities designed to run administration commands across a number of servers (dcli, exadcli) - see Exadata Software Overview.

Metrics must be enabled for Real-Time Insight on the Exadata side. Most likely, metrics are enabled by default on your Exadata system. If they are not, enable metrics for Real-Time Insight with the command:

alter metricdefinition finegrained=enabled where finegrained=disable

You can check what metrics are enabled using command:

list metricdefinition where finegrained=enabled detail

The command returns a detailed list of metrics that are enabled for Real-Time Insight.

Explore in Dynatrace Hub

Monitor Oracle Exadata systems for performance, usage and availability
