type: 'metadata'

A grouped, searchable key-value list that fetches entity metadata via a DQL query and organizes it into collapsible accordion sections. Fields recognized by the built-in registry are automatically placed into the correct group (for example, Core, Kubernetes, Infrastructure). Fields not in the registry fall into the Others group. Use overrideMetadataRegistry to map custom or unrecognized fields into the right groups.

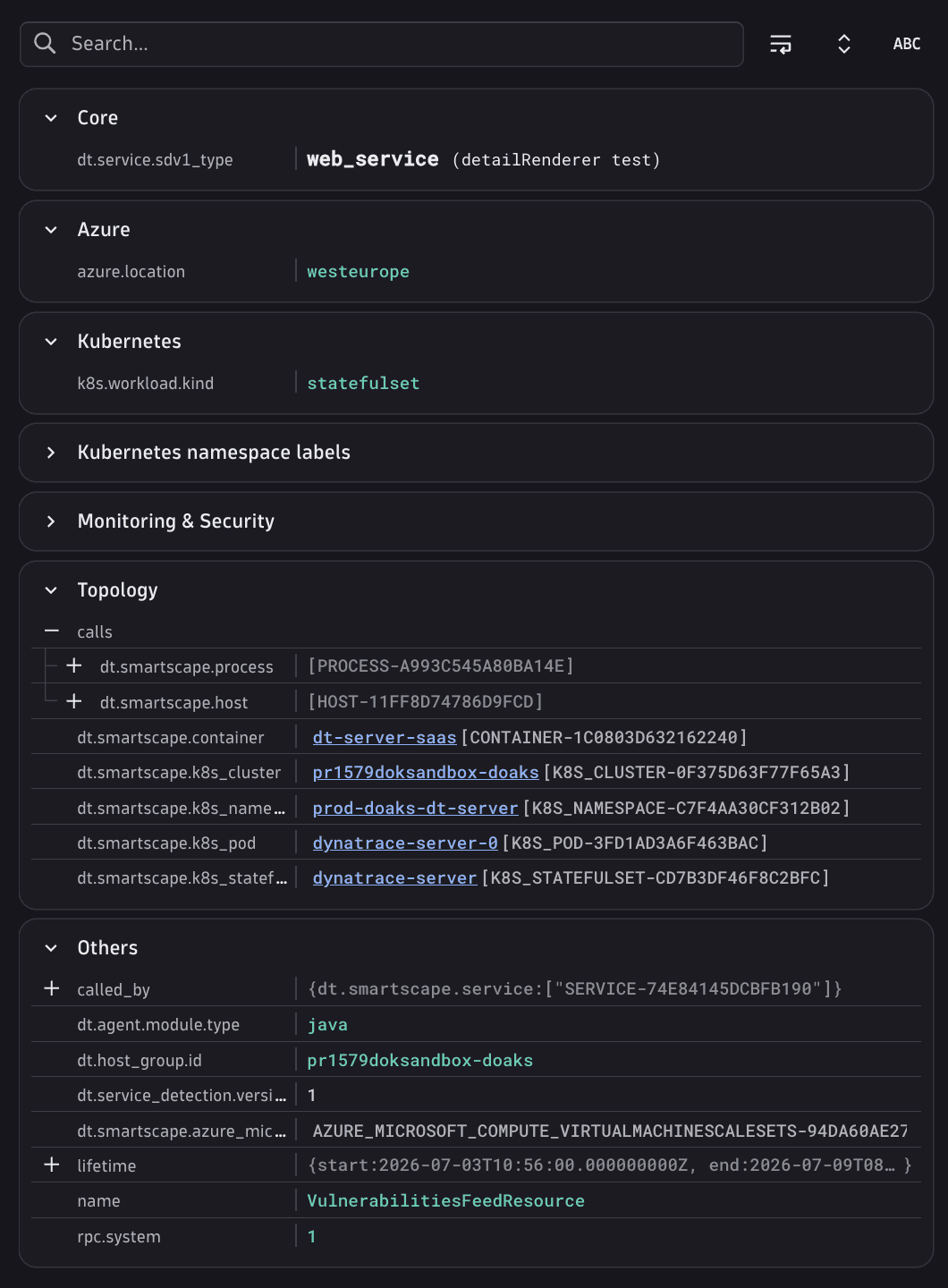

Metadata card showing entity properties as labeled key-value pairs

Placement — a metadata card is a leaf card, valid inside an Entity Details tab and any layout that accepts a card. See Elements overview.

Fields

In addition to the shared CoreElement fields (see Elements overview):

MetadataFieldConfig

Each entry in overrideMetadataRegistry is a MetadataFieldConfig. The registry entry is matched to the result of the dqlQuery result by the name field.

Known type values — 'string' (plain text, default), 'array' (each element as a subrow), 'entity_id' (clickable intent link), 'smartscape_id' (Smartscape entity intent link), 'timestamp' (formatted date/time), 'duration' (formatted duration), 'record' (fields expanded into subrows), 'tags' / 'tags:aws' / 'tags:k8s.annotations' / 'tags:k8s.labels' (tag chips — each variant targets the corresponding tag namespace).

Entity intent links

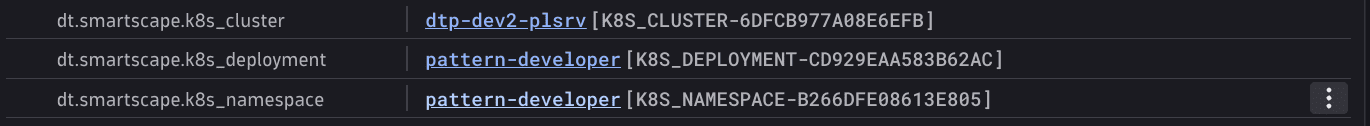

Entity ID field with a navigation link that opens an intent to the related entity

When a field's type is entity_id or smartscape_id, the value is rendered as a clickable intent link that opens the entity in the relevant app context. For this to work, the DQL query must return the entity ID as a plain string in the corresponding field:

These built-in navigation links are the only per-field intent mechanism — there is no way to attach a custom appId or intentId to an individual field value. Custom intents are available only via card-header actions (whole card) or valueCellActions (all value cells uniformly).

MetadataFieldGroup

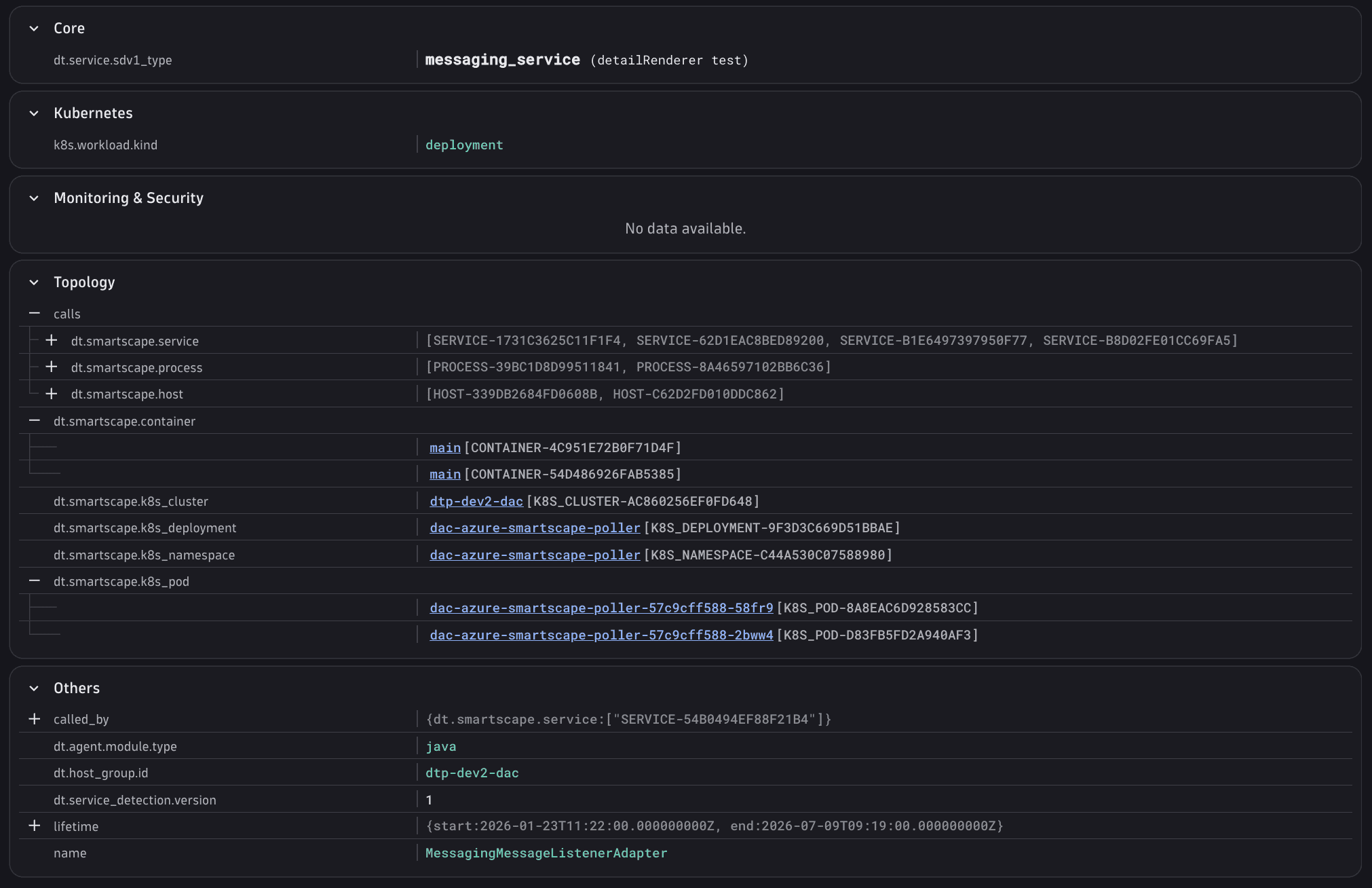

Metadata card with collapsed and expanded property groups for organized viewing

Known top-level group names that organize the property list into accordion sections: 'Core', 'Browser', 'Cloud', 'Code & Performance', 'Database', 'Deployment & Services', 'HTTP & Networking', 'Infrastructure', 'Kubernetes', 'Logs', 'Monitoring & Security', 'Process', 'Business & Custom Attributes', 'Technology', 'Topology', 'Traces', 'Tags & Labels', 'Others'.

These are the only accepted values — custom section names are not supported. Map domain-specific fields onto the closest existing group.

MetadataFieldSubGroup

Sub-group names nested under their parent: 'Code', 'Performance' (both sub-groups of 'Code & Performance').

Action unions

Action arrays accept both BuiltInAction<T> references and full IntentAction objects. See Elements overview.

Built-in MetadataCellActions literals — 'COPY' (copies the raw value), 'COPY_KEY' (copies the field name), 'COPY_KEY_VALUE' (copies key=value), 'COPY_DISPLAY_NAME' (copies the display label), 'COPY_DISPLAY_VALUE' (copies the formatted value), 'FILTERING' (adds a filter for this field to the wrapping Filtering card).

Example

The example below uses smartscapeNodes "HOST" as the base and adds computed fields via fieldsAdd so that every registry entry has a corresponding column in the result.

{
  "type": "metadata",
  "id": "host-properties",
  "cardTitle": "Properties",
  "dqlQuery": "smartscapeNodes \"HOST\" | filter id == toSmartscapeId($(nodeId)) | fieldsAdd dt.entity.host = id_classic, dt.smartscape.host = id, owner.teams = array(\"platform-ops\", \"infra-team\"), billing.zone = \"us-east-1\", team.owner = \"platform-ops\", sla.tier = \"gold\", agent.uptime_ms = 2592000000, maintenance.next_window = now(), hw.specs = record(model = \"Dell PowerEdge R750\", cores = 32) | limit 1",
  "overrideMetadataRegistry": {
    "name": {
      "displayName": "Host Name",
      "type": "string",
      "fieldGroups": ["Core"]
    },
    "tags": {
      "displayName": "Tags",
      "type": "tags",
      "fieldGroups": ["Tags & Labels"]
    },
    "dt.entity.host": {
      "displayName": "Entity ID",
      "type": "entity_id",
      "fieldGroups": ["Core"]
    },
    "dt.smartscape.host": {
      "displayName": "Smartscape ID",
      "type": "smartscape_id",
      "fieldGroups": ["Core"]
    },
    "owner.teams": {
      "displayName": "Owner Teams",
      "type": "array",
      "fieldGroups": ["Business & Custom Attributes"]
    },
    "billing.zone": {
      "displayName": "Billing Zone",
      "type": "string",
      "fieldGroups": ["Business & Custom Attributes"]
    },
    "team.owner": {
      "displayName": "Owning Team",
      "type": "string",
      "fieldGroups": ["Business & Custom Attributes"]
    },
    "sla.tier": {
      "displayName": "SLA Tier",
      "type": "string",
      "fieldGroups": ["Monitoring & Security"]
    },
    "agent.uptime_ms": {
      "displayName": "Agent Uptime",
      "type": "duration",
      "fieldGroups": ["Infrastructure"]
    },
    "maintenance.next_window": {
      "displayName": "Next Maintenance",
      "type": "timestamp",
      "fieldGroups": ["Monitoring & Security"]
    },
    "hw.specs": {
      "displayName": "Hardware",
      "type": "record",
      "fieldGroups": ["Infrastructure"]
    }
  },
  "keyCellActions": [{ "builtInAction": "COPY_KEY" }],
  "valueCellActions": [
    { "builtInAction": "COPY" },
    { "builtInAction": "FILTERING" }
  ]
}
